2026 AERO Design T47 Bracket Gravel Bike Frame FM316
Factory Direct Price
Contact For Best Price
Weight
1150g
Material
Toray T800/T1000
Tire Clearance
50mm
Test Standard
1.3 Times Tested
2-Year Warranty
Free Shipping Worldwide
5-10 Days Delivery
Secure Payment
Payment Methods:
Frame Detail

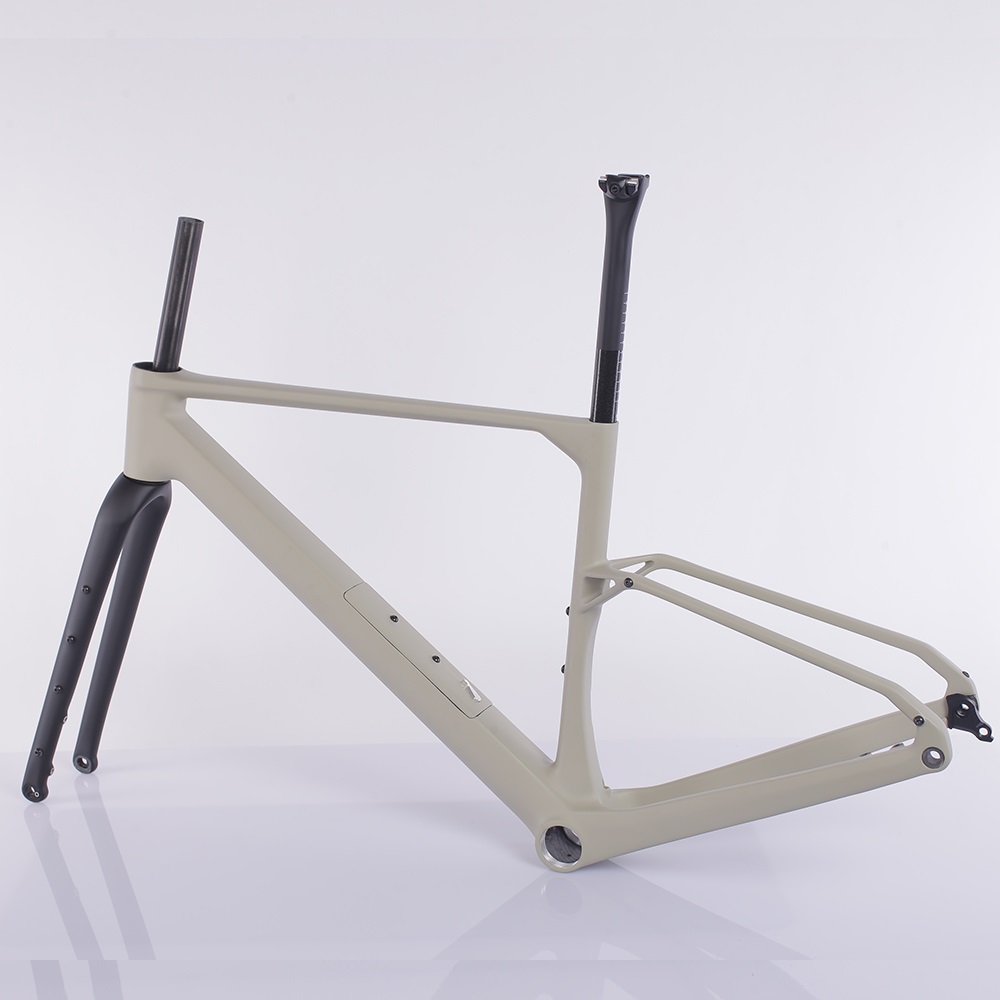

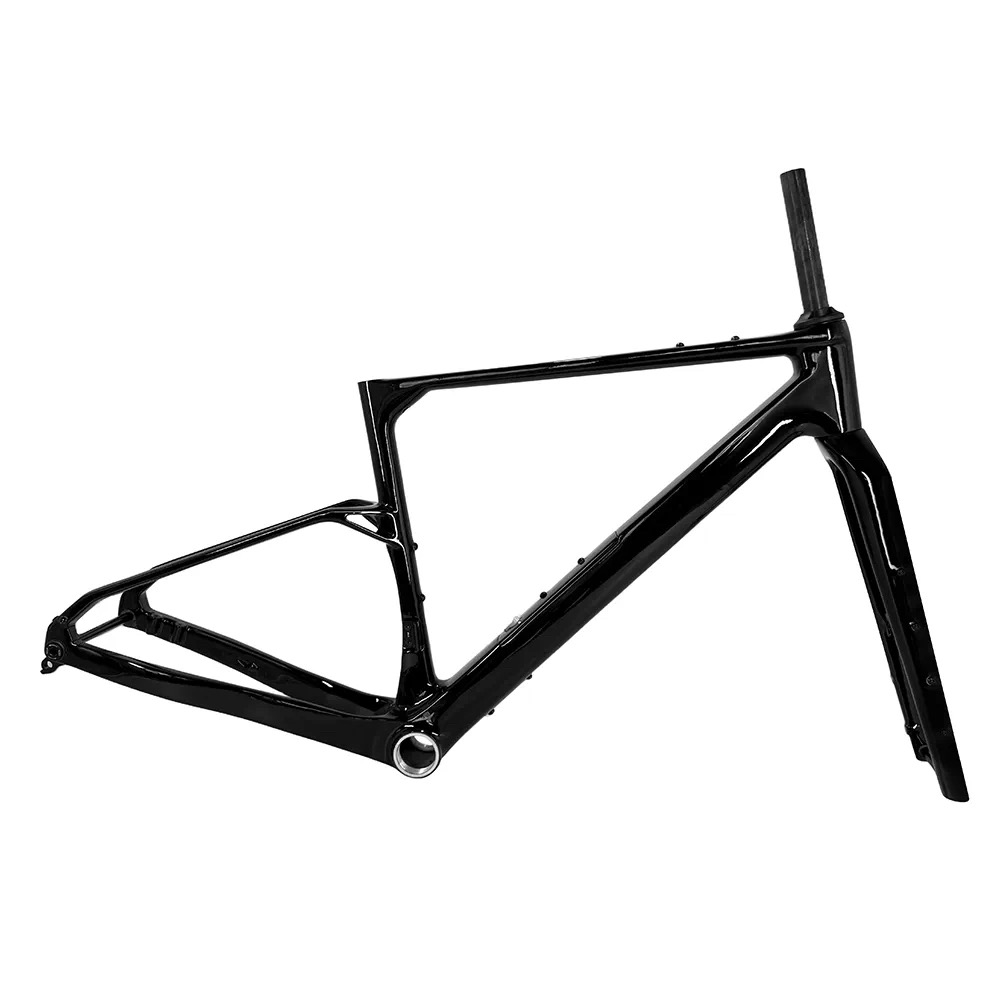

Aero Gravel Bike Frame

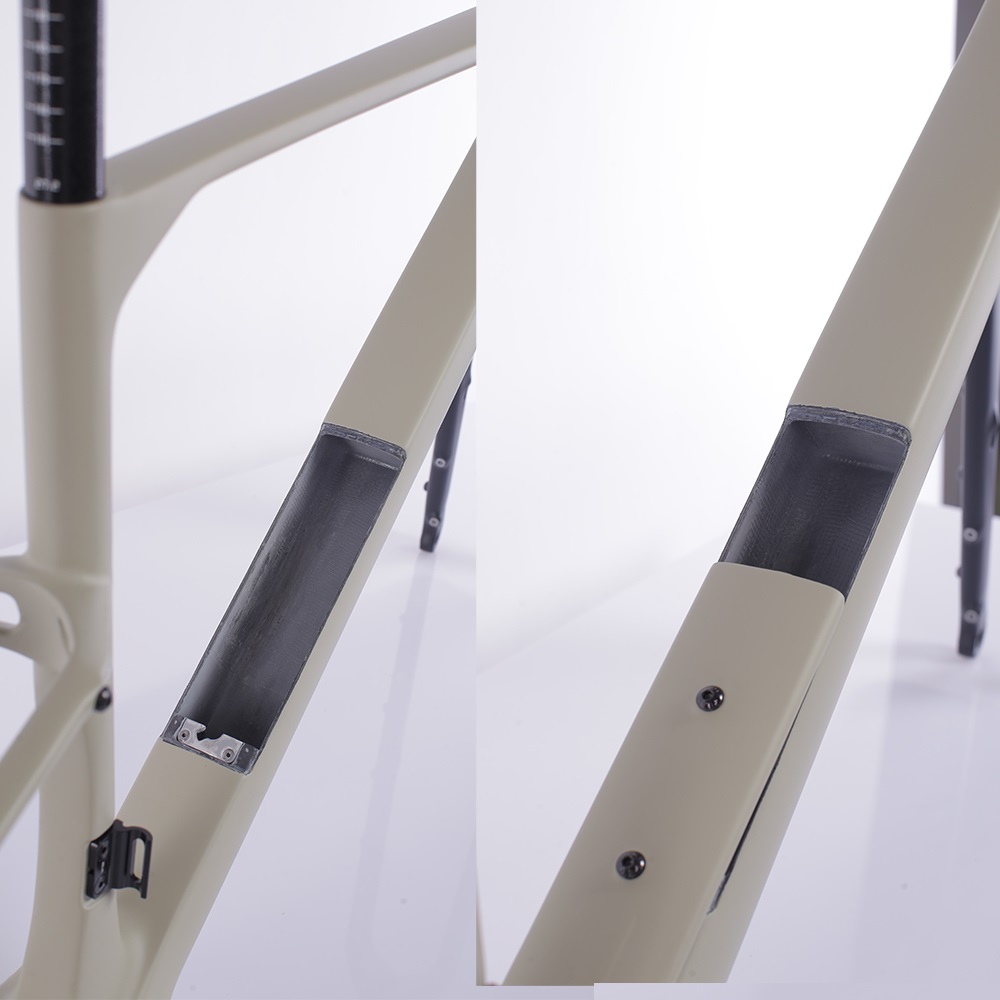

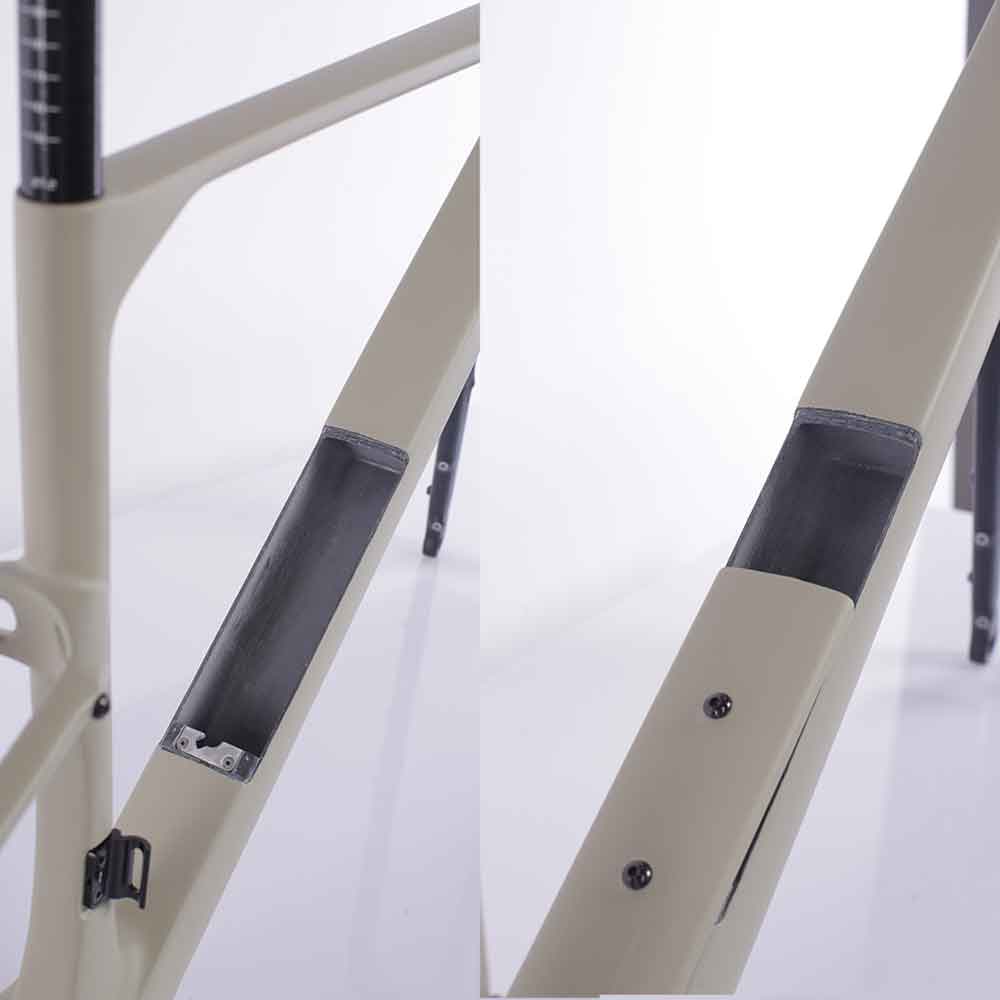

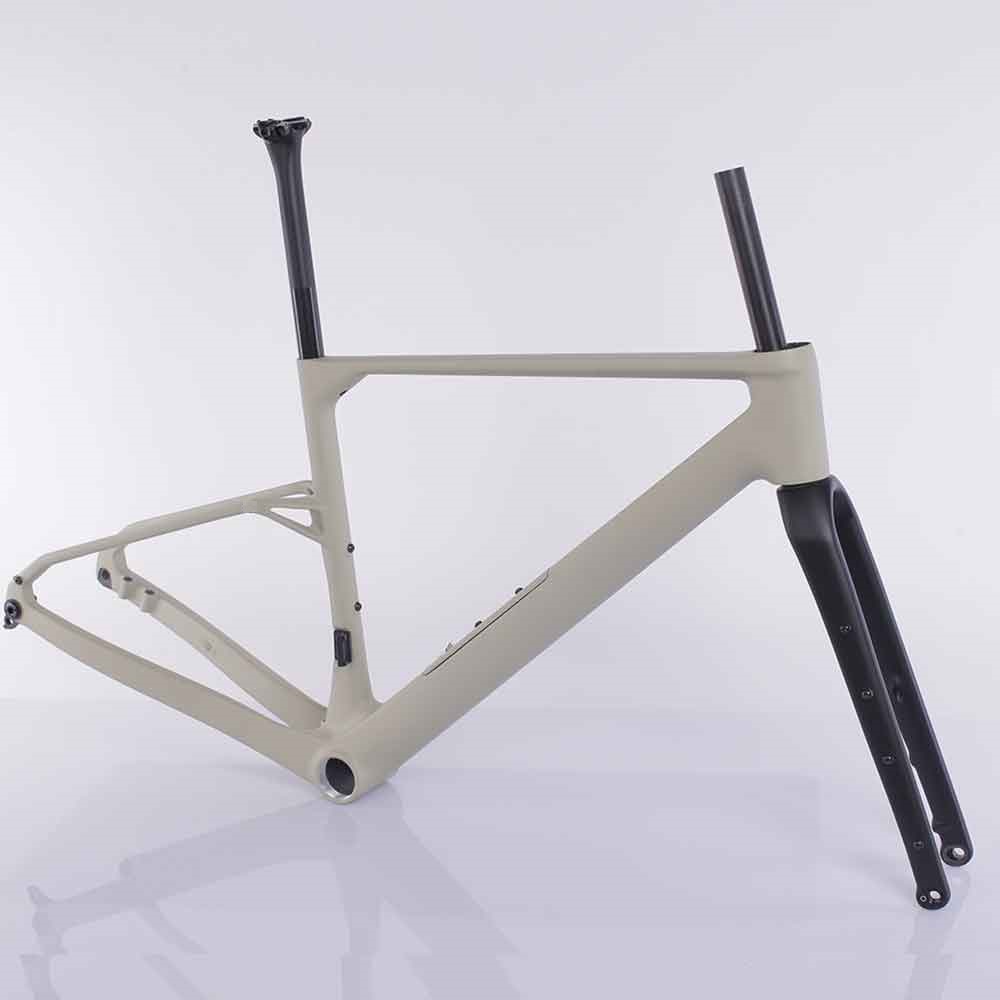

Downtube Storage Room

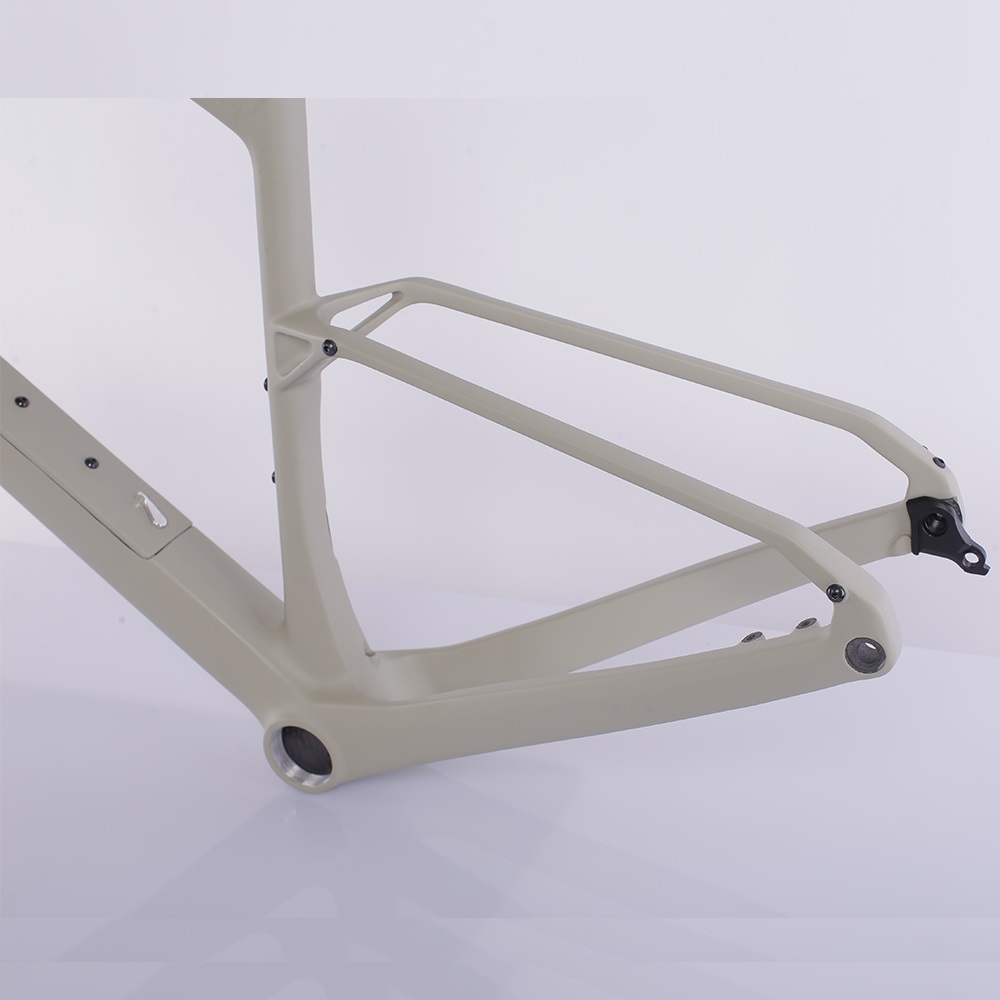

T47 Bracket

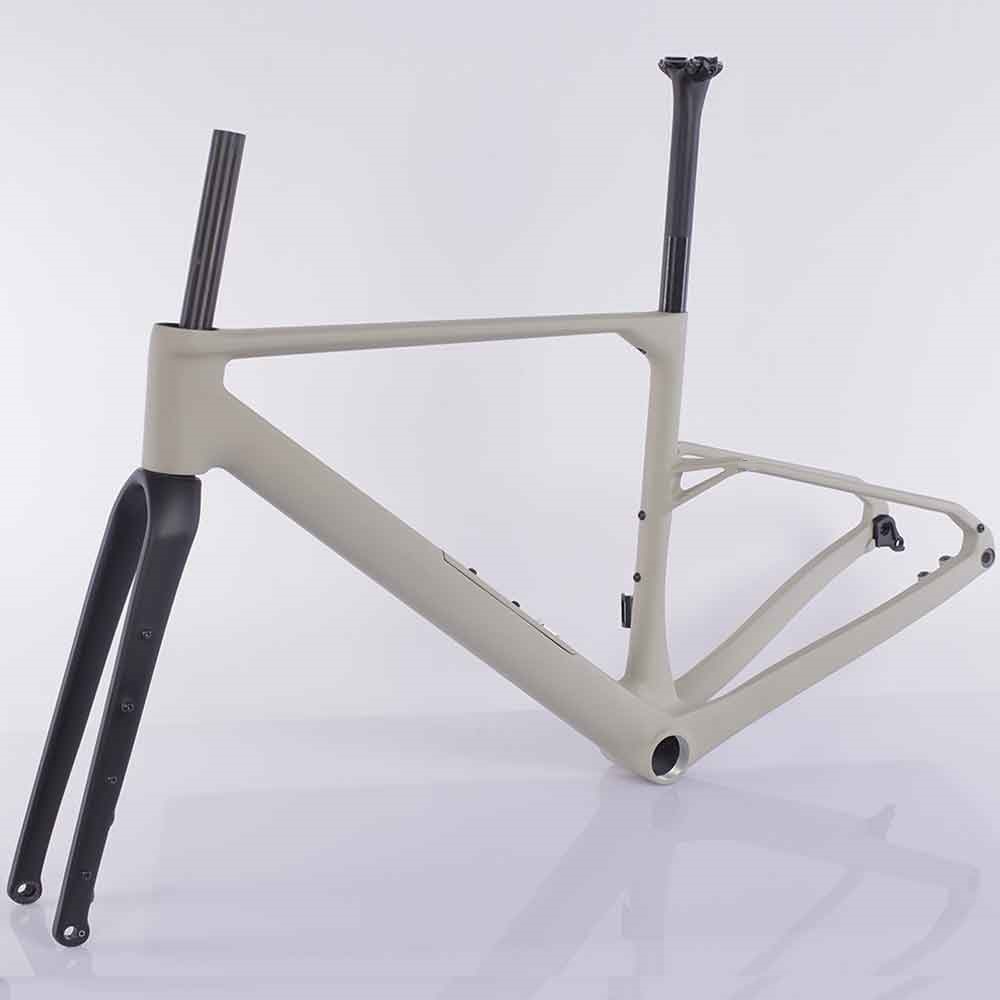

Max 50mm Tire
Hidden Seatpost Clamp
Air Hole UDH Hanger T47 Carbon Gravel Bike Frame
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 50 sets
Sample: Provided

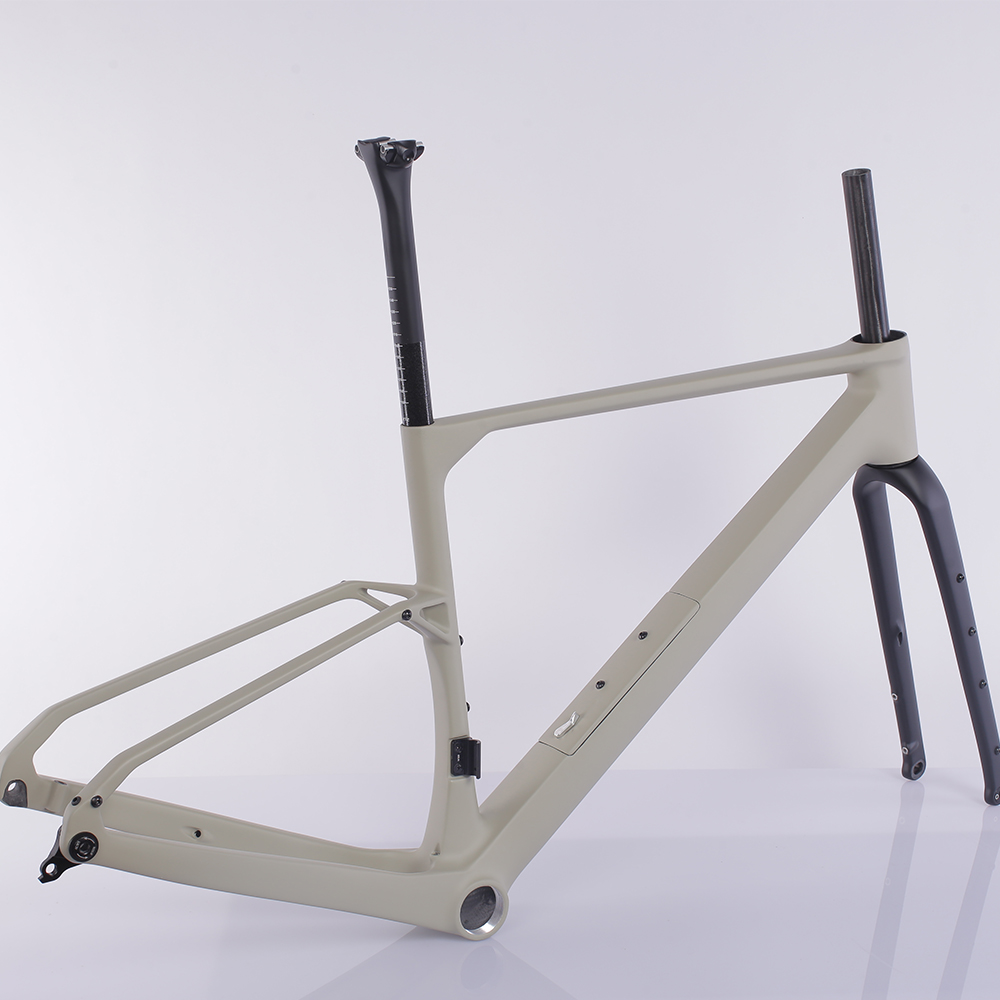

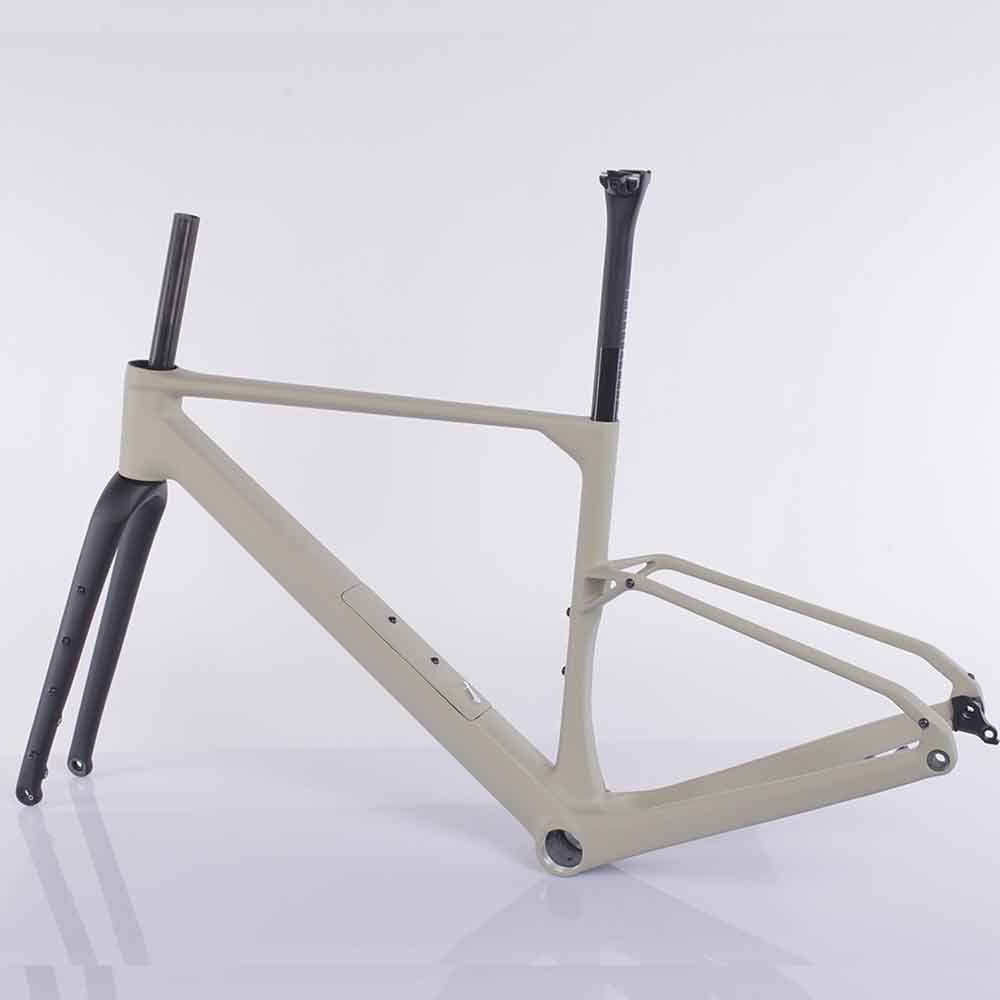

AERO Design T47 Bracket Gravel Bike Frame

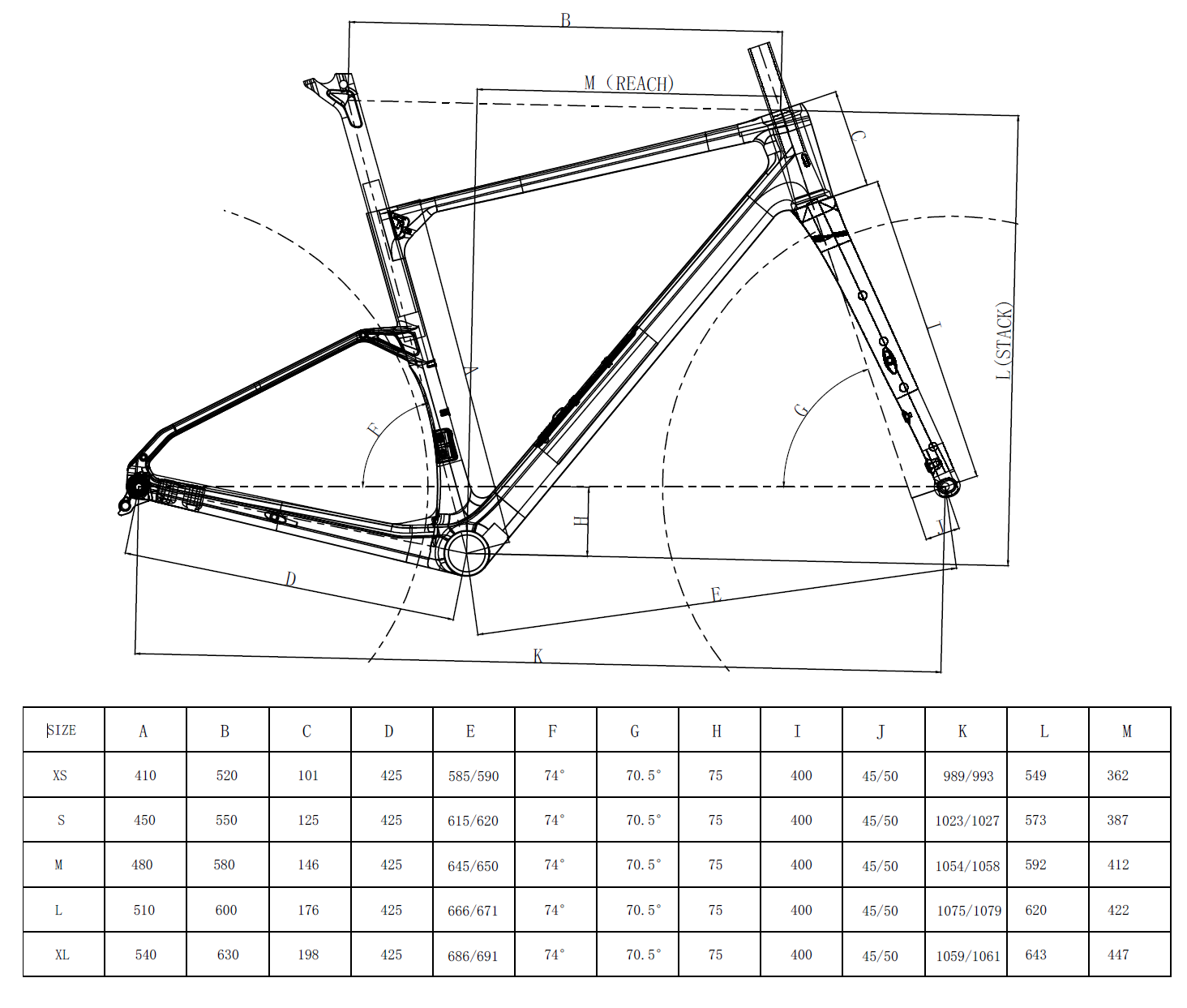

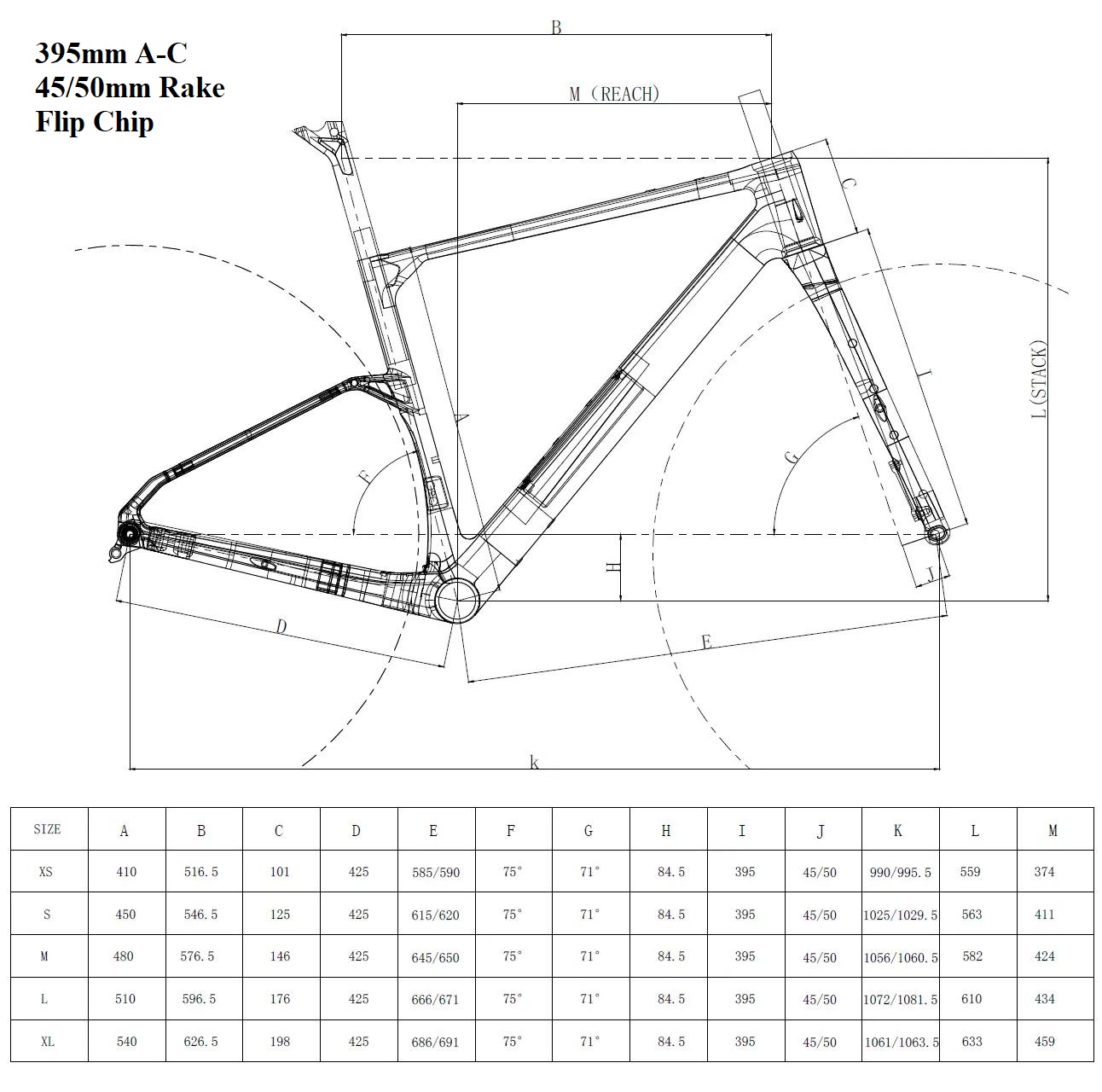

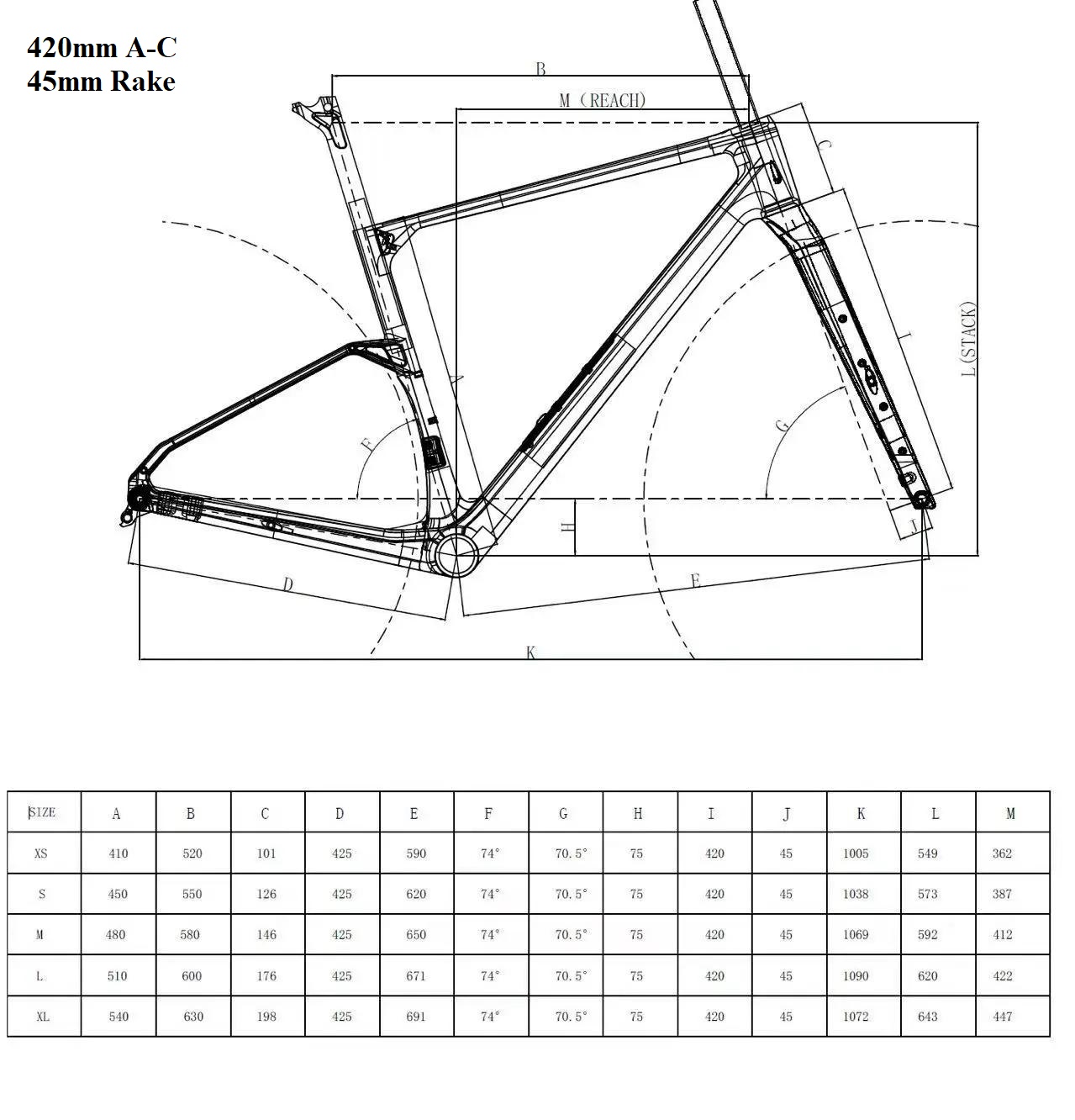

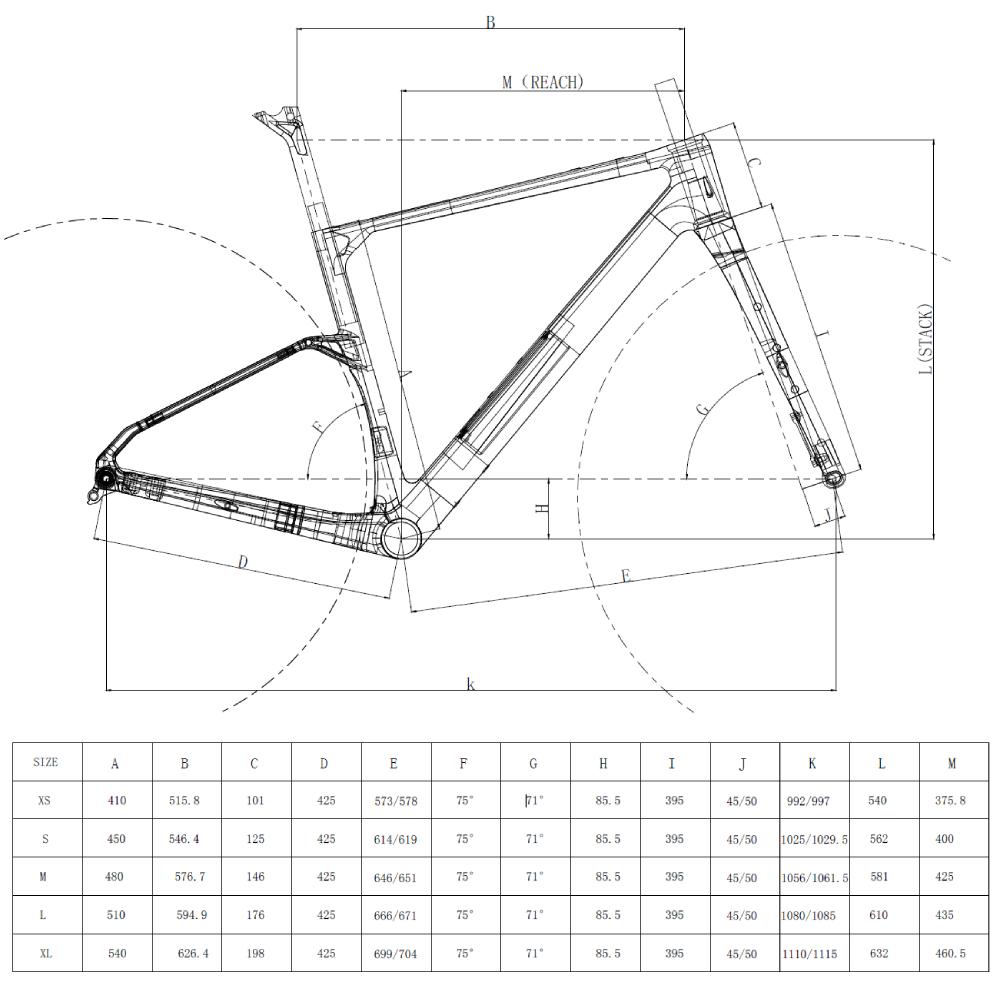

Frame Data Sheet
Stem Recommend For 395mm A-C Fork
XS:40-50mm; S:50-60mm; M:60-70mm; L:70-80mm; XL:70-80mm
Provided Headset With Cable Out From Headtube;
Separated Stem And Bar Recommend;
Crankset Recommend:160mm/165mm For 395mm Fork;
Material: 100% Toray T800/1000 Carbon Fiber
Frame Weight: 1160g+-30g(S, UD Matt, Including Downtube Cover ); 12*142mm

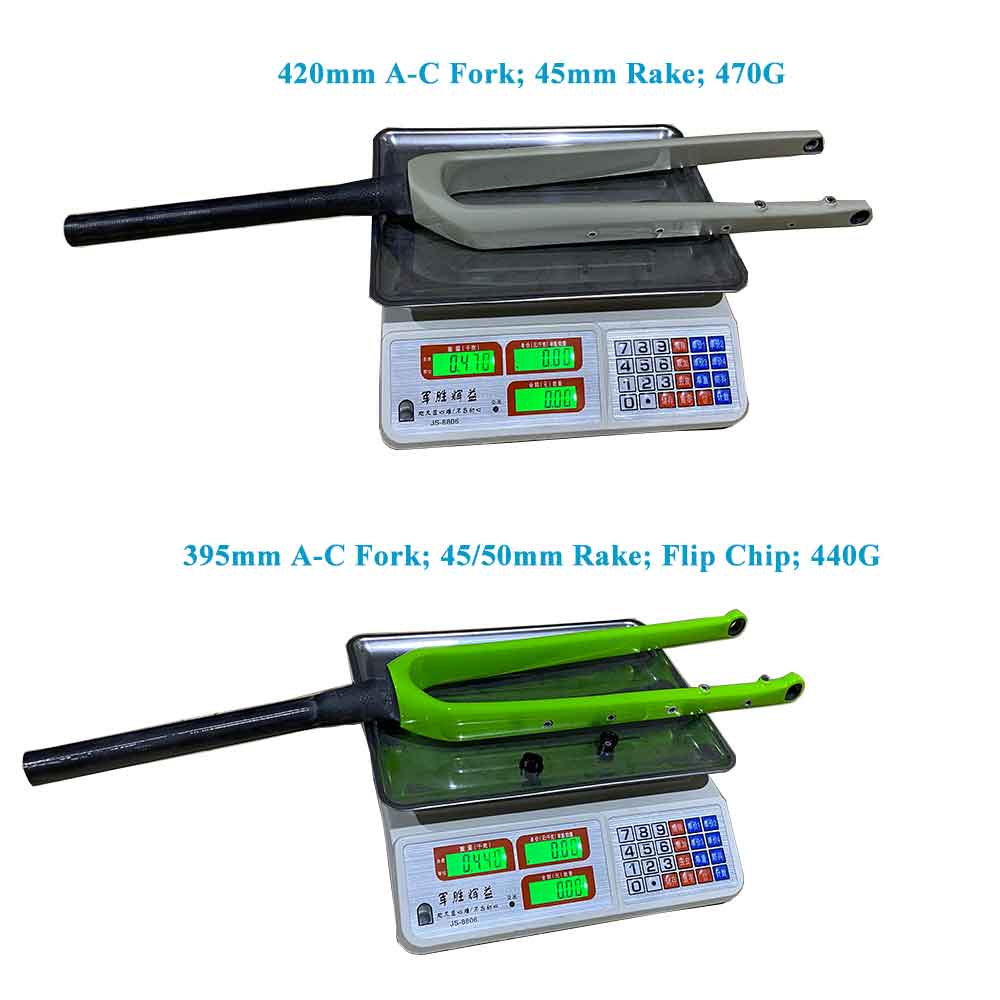

Fork One: 12*100mm, 45/50mm Rake, 395mm A-C;
430g+-15g(UD Matt);Flip Chip;
Rotor:160/180mm Front; 140/160mm Rear;
Max Tire: 650B*2.1''/700C*50mm
Size: XS/S/M/L/XL
Seatpost: 27.2mm
Key Features:
- 395MM A-C GRAVEL FORK
- GRAVEL RACING STYLE
- 45/50MM FLIP CHIP
- T47 85.5MM BRACKET
- INDEPENDENT STORAGE SPACE
- AERO SEATSTAY DESIGN
- HEADTUBE: 1-/2" UP AND DOWN
- UDH HANGER
Frequently Asked Questions
The frame weighs approximately 1150g for size 54cm (±30g). The fork weighs 420g uncut.
The frame accommodates tires up to 50mm. For gravel riding, we recommend 40-45mm.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 20 sets.
All frames come with a 2-year warranty against manufacturing defects.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
130% ISO Tested
Exceeds safety standards by 30%
Custom Painting
Any RAL/Pantone color
Custom Geometry
Tailored fit available
