FM376 All-Terrain Carbon Gravel Racing Frame
Factory Direct Price
Contact For Best Price

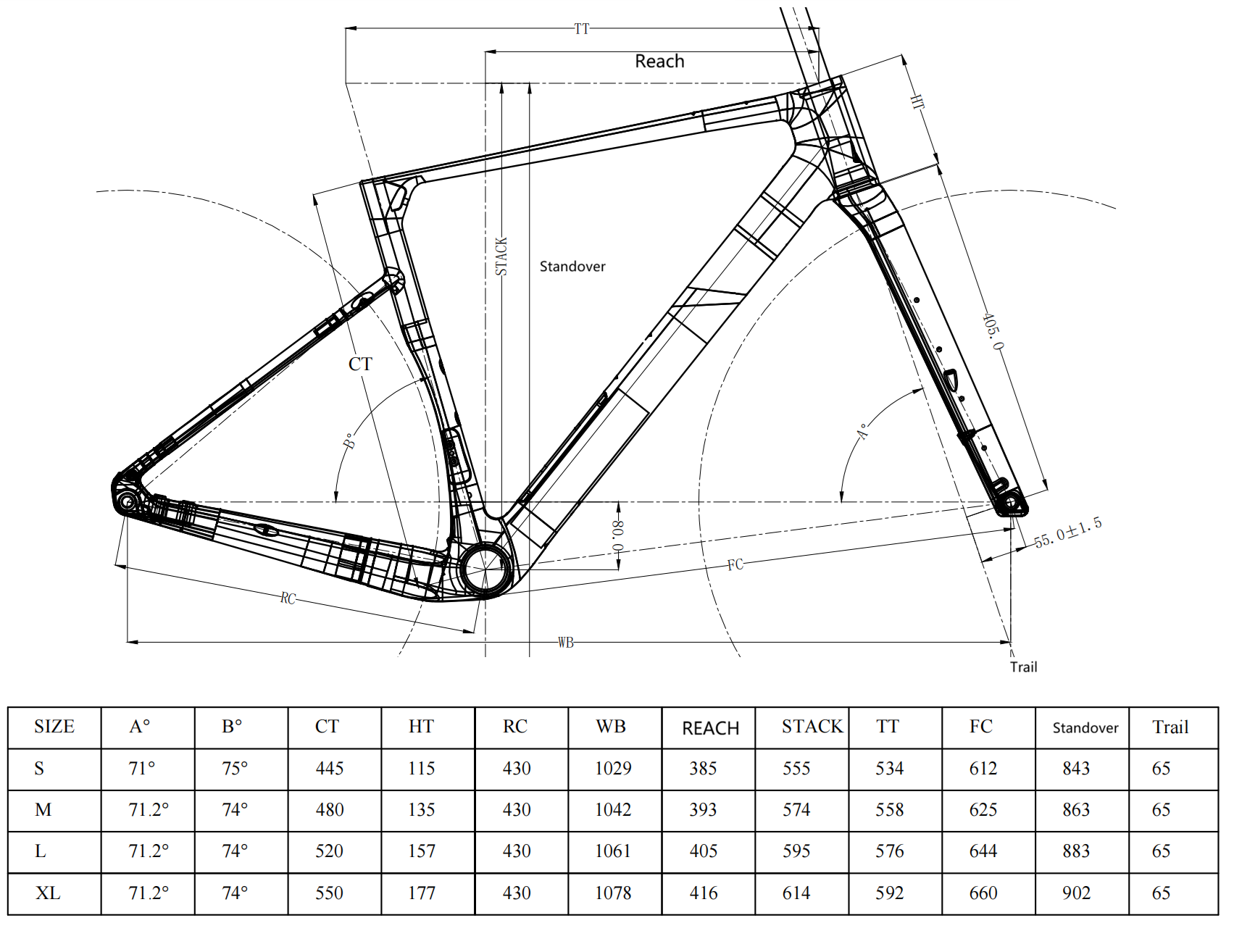

This sleek dark green full carbon gravel frame delivers balanced versatility for mixed pavement and gravel adventures, with refined size-specific geometry spanning S-XL specs. It features 71°-71.2° head tube angles paired with consistent 65mm trail across all sizes, ensuring steady off-road handling without sacrificing agile steering on tarmac. Fixed 430mm rear center keeps rear wheel traction stable on rough trails, while gradually extended wheelbase from 1029mm (S) to 1078mm (XL) scales stability for larger frames.
Graduated Stack/Reach values fit diverse rider body types: the S size brings a relaxed endurance fit with 555mm Stack/385mm Reach, while XL offers extended 614mm Stack/416mm Reach for taller riders. Tuned seat tube angles (74°-75°) maintain efficient pedaling posture, paired with ample tire clearance and integrated mounting points for bikepacking gear. Streamlined aerodynamic frame shaping complements reliable geometry, making it ideal for long-distance exploration, gravel races and daily all-road commuting across varied terrain.
🏢 Available for OEM / Private Label Orders
This frame can be customized with your brand logo, colors, and geometry. Low MOQ from 1 pcs | EN Certified | Toray Carbon
Request OEM Quote → Contact Us
Weight
1080g
Material
Toray Grade T1000
Tire Clearance
57mm
Test Standard
1.3 Times Tested
2-Year Warranty
Worldwide Shipping Available
15-18 Days For Custom Painting
Secure Payment
Payment Methods:
Frame Detail

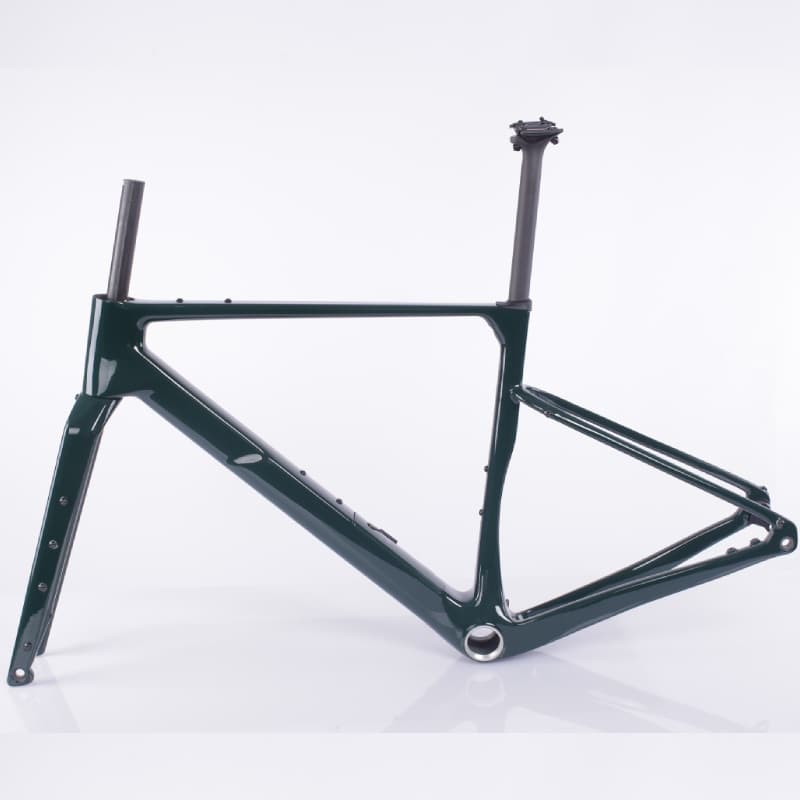

57mm gravel bike frame

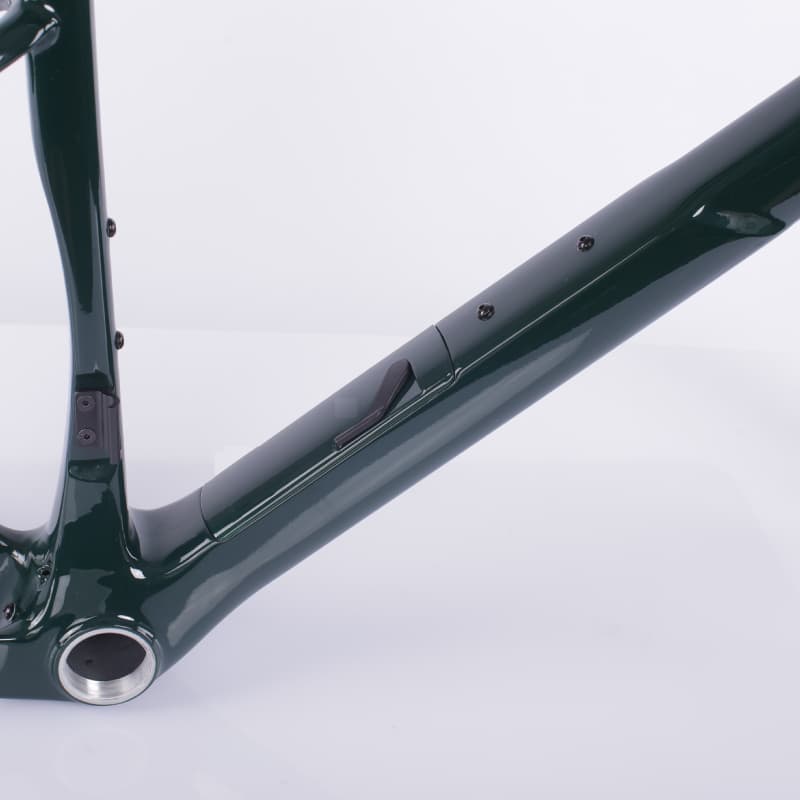

carbon gravel bike frame

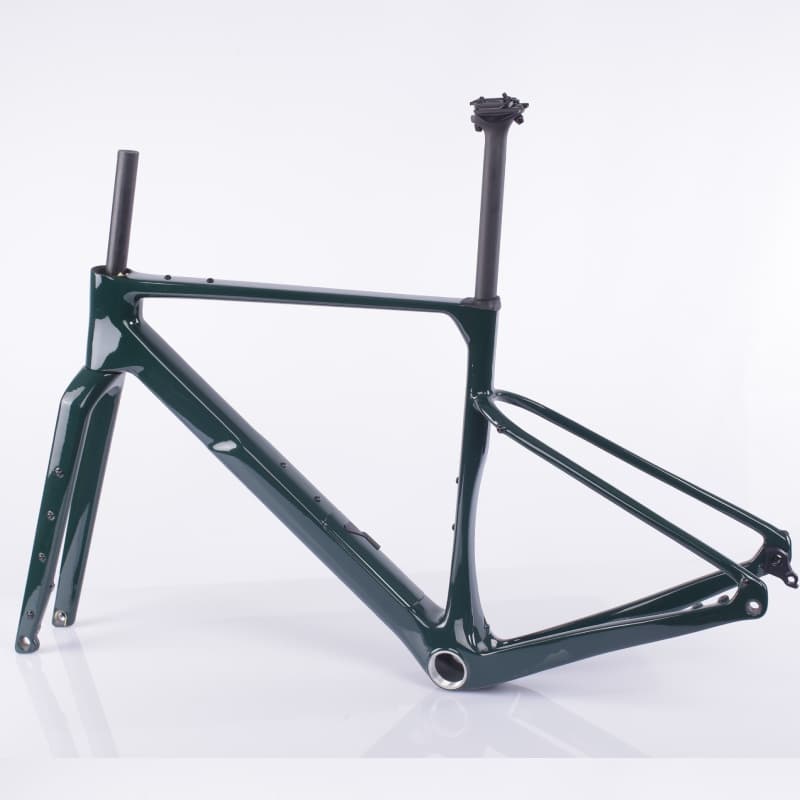

all terrian gravel bike frame

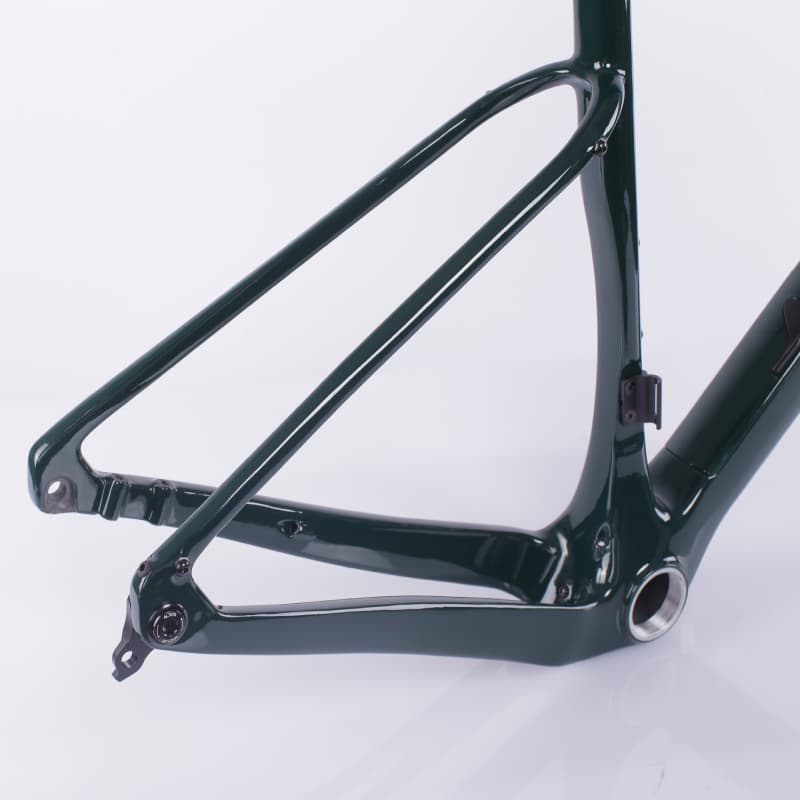

gravel bike frame with storage space

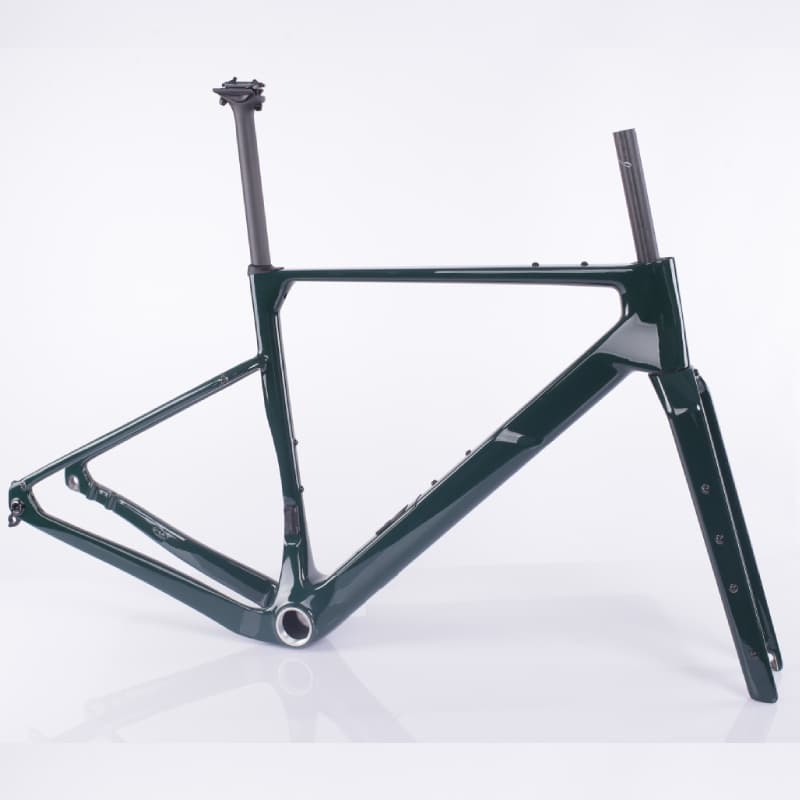

best gravel bike frame
| Specification | Details |
|---|---|
| Material | 100% Toray Grade T1000 Carbon Fiber |
| Frame Weight | 1180+-30g (M Size, Raw Finished) |
| Fork Weight | 480g ± 15g (Uncut); Tapered Crown; 28.6mm Steer Tube |
| Tire Clearance | 700c x 57mm; 6mm Tire Clearance |
| Bottom Bracket | T47 85.5mm |
| Front Derailleur | 1*12/2*12 Shimano Or Sram; Cover Provided For 1X |
| Seatpost | 27.2mm Round, 7*7mm/7*9mm Trail Compatiable |
| Hanger | UDH (Universal Derailleur Hanger), 1.0mm Pitch |
| Brake Type | Disc Brake (Flat Mount) |
| Rotor Size (Max) | 160/180mm |
| Axle Standard | AL7075 Anodized Black, 12x124mm*1.5P (Front) / 12x171mm*1.0P (Rear) |
| Headtube | 1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD |
| Bearing Size | 52mm OD, 40mm ID Upper And Lower; 8mm Height Upper, 7mm Height Lower |
| Frame Sizes | S, M, L, XL |
| Pacakges Included | Frame, Fork, Seatpost, Axles, Headset And Bag |
| Key Features | Waterproof Downtube Cover, All Terrian Geometry |

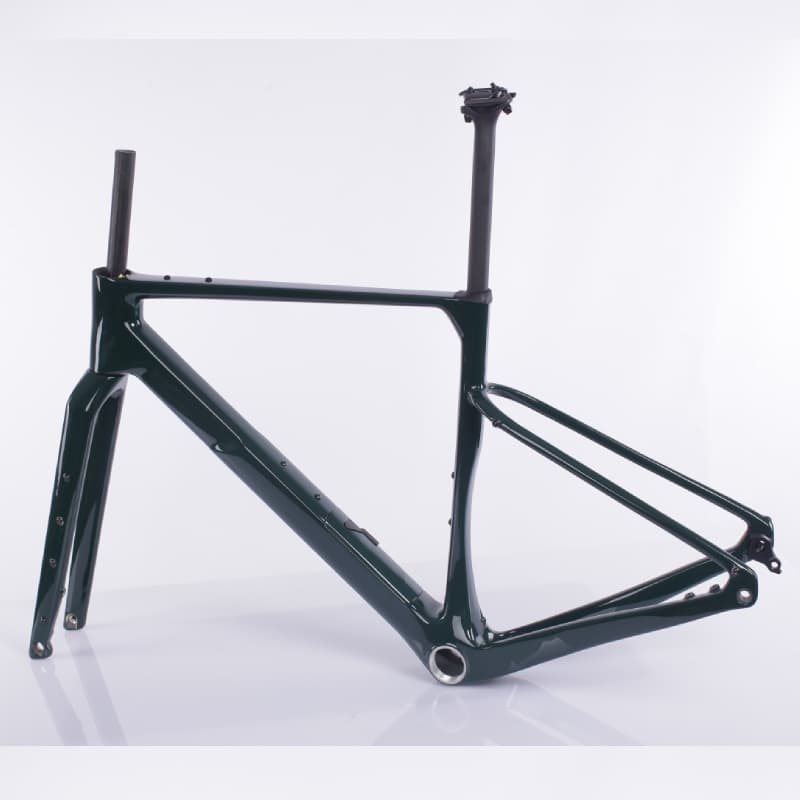

All Terrian Gravel Racing Bike Frame
Frame Data Sheet
Material: 100% Toray T800/1000 Carbon Fiber
Frame Weight: 1080+-30g(M Raw Finished); 12*142mm
Fork:12*100mm, 55mm Rake, 480g+-15g(UD Matt);
Max Tire: 700C*57mm
Size: S/M/L/XL
Seatpost: 27.2mm
Bracket:T47 85.5mm
Hanger:UDH

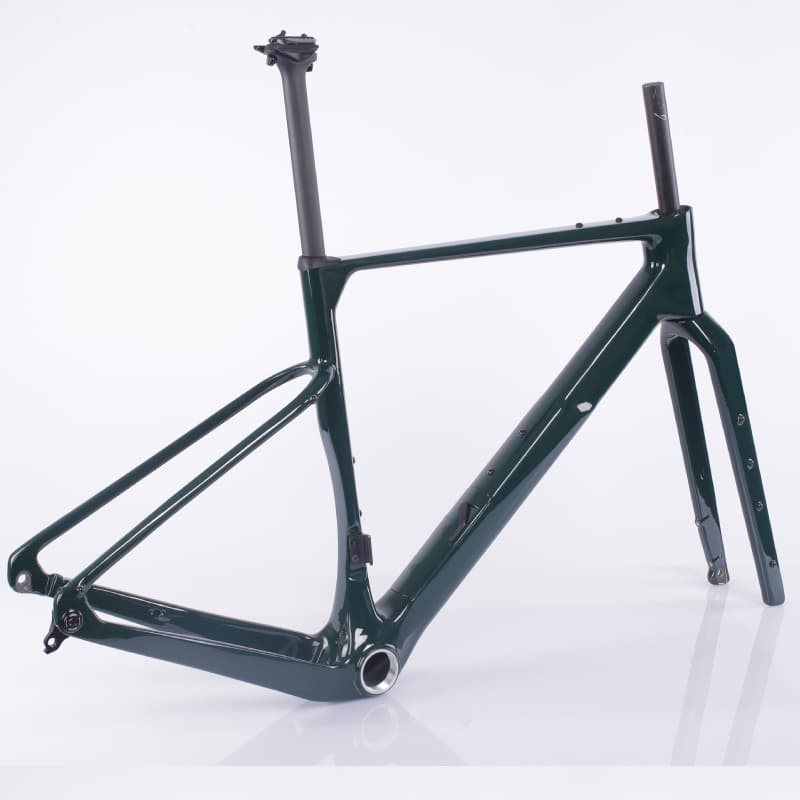

Chinese New Design Gravel Racing Bike Frame
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 50 sets
Sample: Provided
Key Features:
- 52T CHAINRING
- MAX 700*57MM TIRE
- WATERPROOF DOWNTUBE COVER
- CUSTOM PAINTING FOR ALL COLORS
- HEADTUBE: 1-/2" UP AND DOWN
- HIDDEN SEATPOST CLAMP 45°ANGLE LOCK
Customer Reviews
Write a ReviewLoading reviews...
★
★
★
★
★
4.7/5 — Verified B2B Buyers
"Better tolerance than expected" — Germany · "Super fast shipping" — Canada
See More Reviews & Request a Quote →Frequently Asked Questions
The frame weighs approximately 1080g for size 54cm (卤30g). The fork weighs 420g uncut.
The frame accommodates tires up to 57mm. For gravel riding, we recommend 40-45mm.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets.
All frames come with a 2-year warranty against manufacturing defects.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
OEM Custom Geometry
Tailored frame molds for bulk orders
