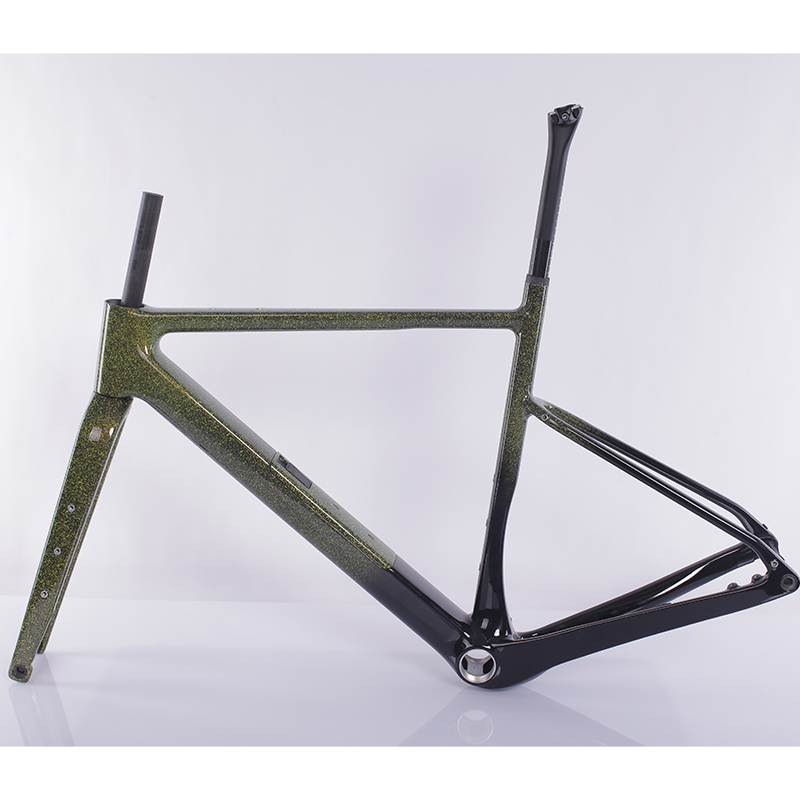

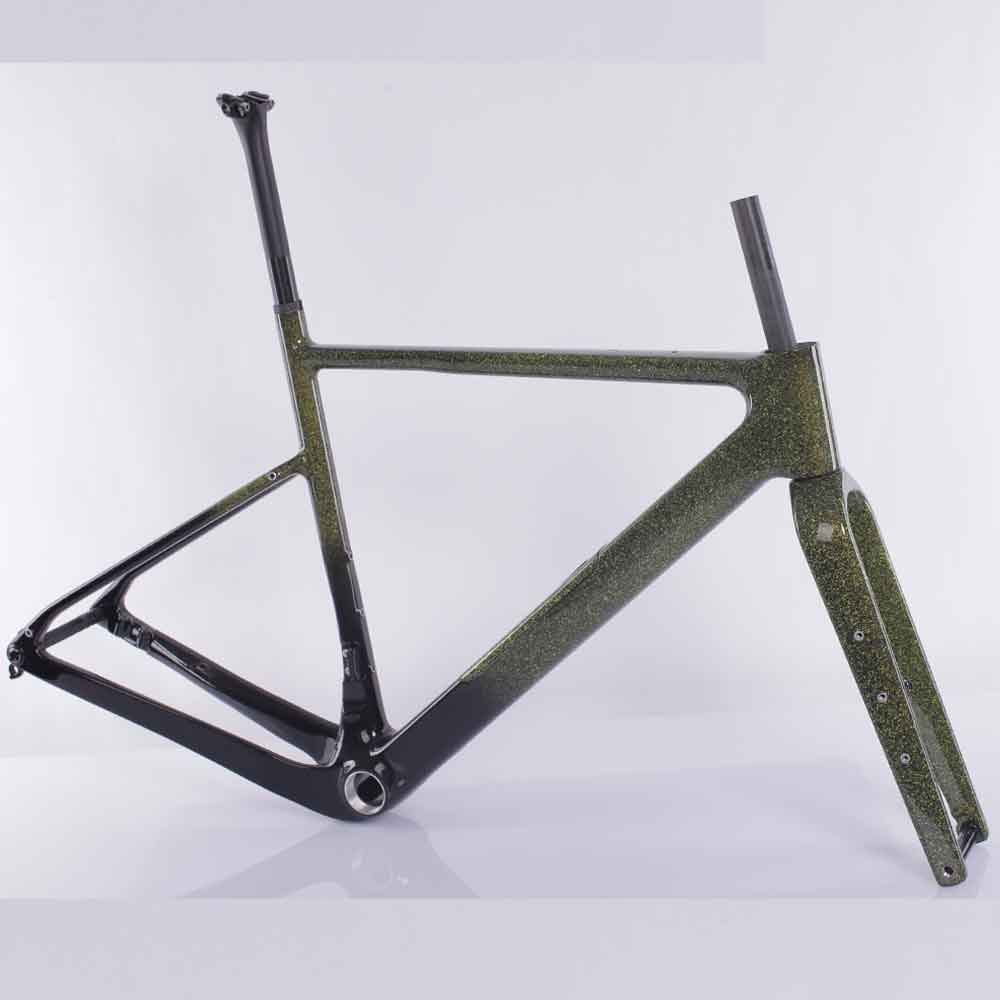

Mondince FM296 2025 New Designed UDH Hanger Full Carbon Fiber Gravel Bike Frame
- Frame
- Fork
- Seatpost
- FD Cover
- Headset
- Bag
- Axles
- Tax(EU/UK/USA)
- Custom Painting
- Shipping Cost
- Taxes(Other Countries)
👉 Get a Quote for FM316 or FM336 →
Build your gravel bike with this frameset
Contact us to confirm availability, delivery options or custom requirements. Custom paint and brand customization are quoted separately.
Check Price & Availability → OEM OptionsFrame Detail

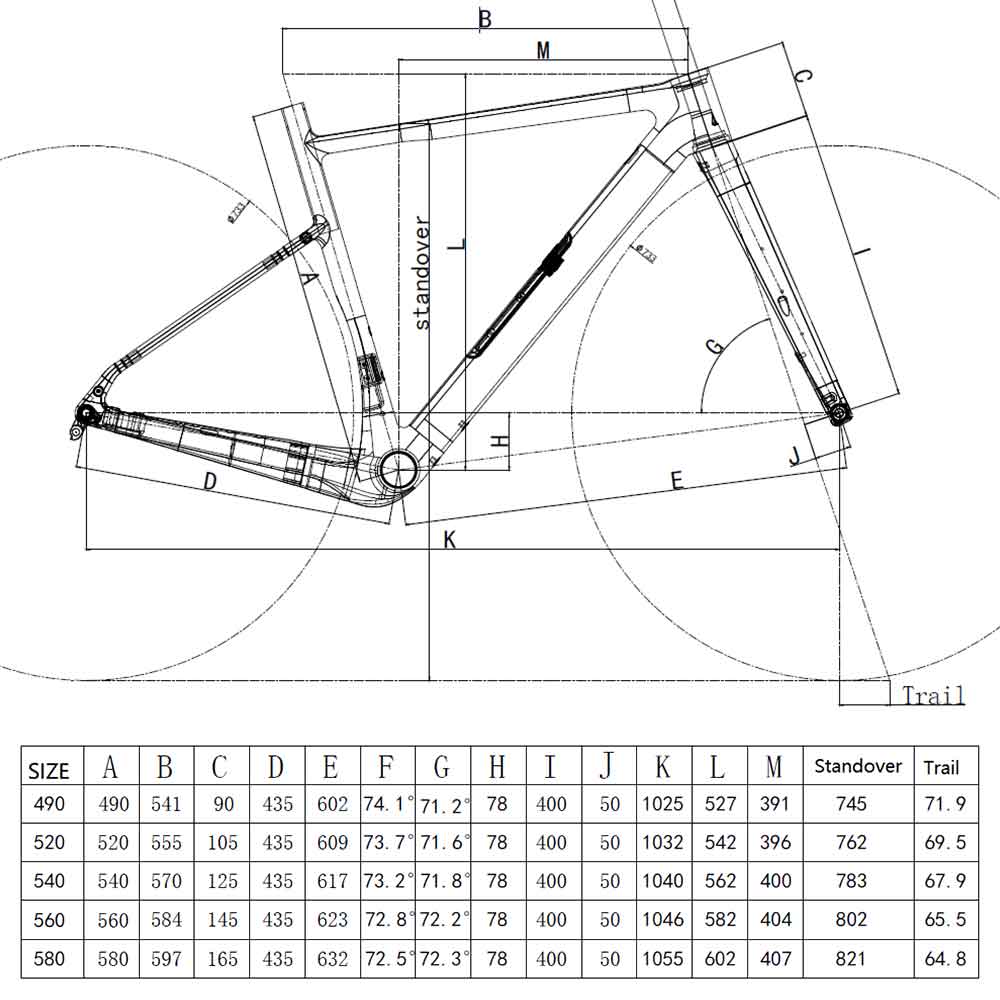

| SIZE | A Seat Tube Length |
B Top Tube Length |
C Headtube Length |
D Chainstay Length |
E Front Center |
F Seat Tube Angle |
G Head Tube Angle |
H BB Drop |
I Fork Length |
J Fork Rake/Offset |
K Wheelbase |
L Stack |
M Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 490 | 541 | 90 | 435 | 602 | 74.1° | 71.2° | 78 | 400 | 50 | 1025 | 527 | 391 |
| 52 | 520 | 555 | 105 | 435 | 609 | 73.7° | 71.6° | 78 | 400 | 50 | 1032 | 542 | 396 |
| 54 | 540 | 570 | 125 | 435 | 617 | 73.2° | 71.8° | 78 | 400 | 50 | 1040 | 562 | 400 |
| 56 | 560 | 584 | 145 | 435 | 623 | 72.8° | 72.2° | 78 | 400 | 50 | 1046 | 582 | 404 |
| 58 | 580 | 597 | 165 | 435 | 632 | 72.5° | 72.3° | 78 | 400 | 50 | 1055 | 602 | 407 |
| Specification | Details |
|---|---|
| Material | 100% Toray Grade T1000 Carbon Fiber |
| Frame Weight | 1150g (M Size, Raw Carbon Finished) |
| Fork Weight | 430g ± 15g (Uncut); Tapered Crown; 28.6mm Steer Tube |
| Tire Clearance | 700c x 50mm / 650B x 2.1"; 5mm Tire Clearance |

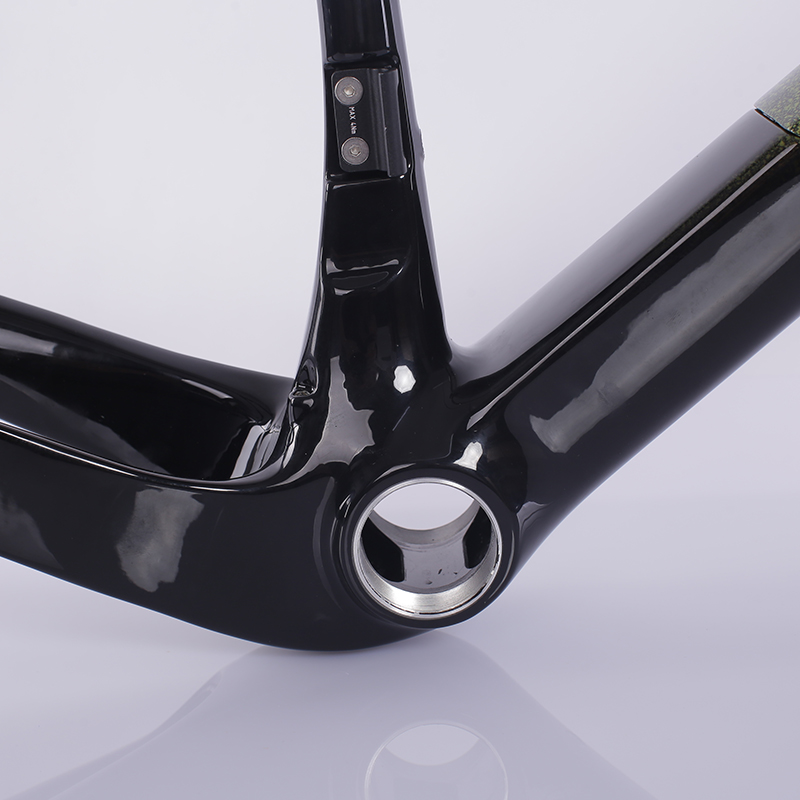

| Bottom Bracket | T47 85.5mm |
| Front Derailleur | 1*12/2*12 Shimano Or Sram; Cover Provided For 1X |
| Seatpost | 27.2mm Round, 7*7mm/7*9mm Compatible |
| Hanger | UDH (Universal Derailleur Hanger), 1.0mm Pitch |
| Brake Type | Disc Brake (Flat Mount) |
| Rotor Size (Max) | 140/160mm (Front), 140/160mm (Rear) |
| Axle Standard | AL7075 Anodized Black, 12x124mm*1.5P (Front) / 12x169mm*1.0P (Rear) |
| Headtube | 1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD |
| Bearing Size | 52mm OD, 40mm ID Upper And Lower; 8mm Height Upper, 7mm Height Lower |
| Frame Sizes | 49CM/52CM/54CM/56CM/58CM |
| Packages Included | Frame, Fork, Seatpost, Axles, Headset And Bag |
| Key Features | Integrated Downtube Storage, Fully Internal Cable, Good Geometry |

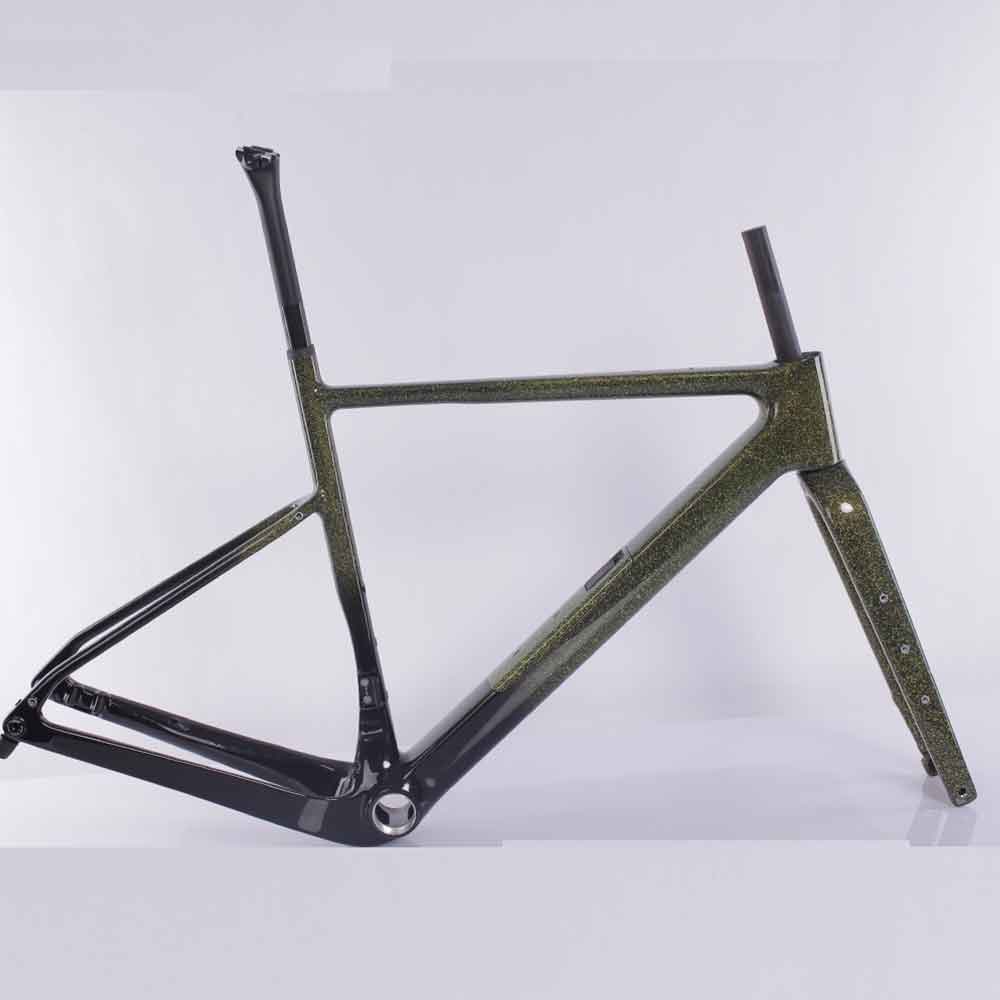

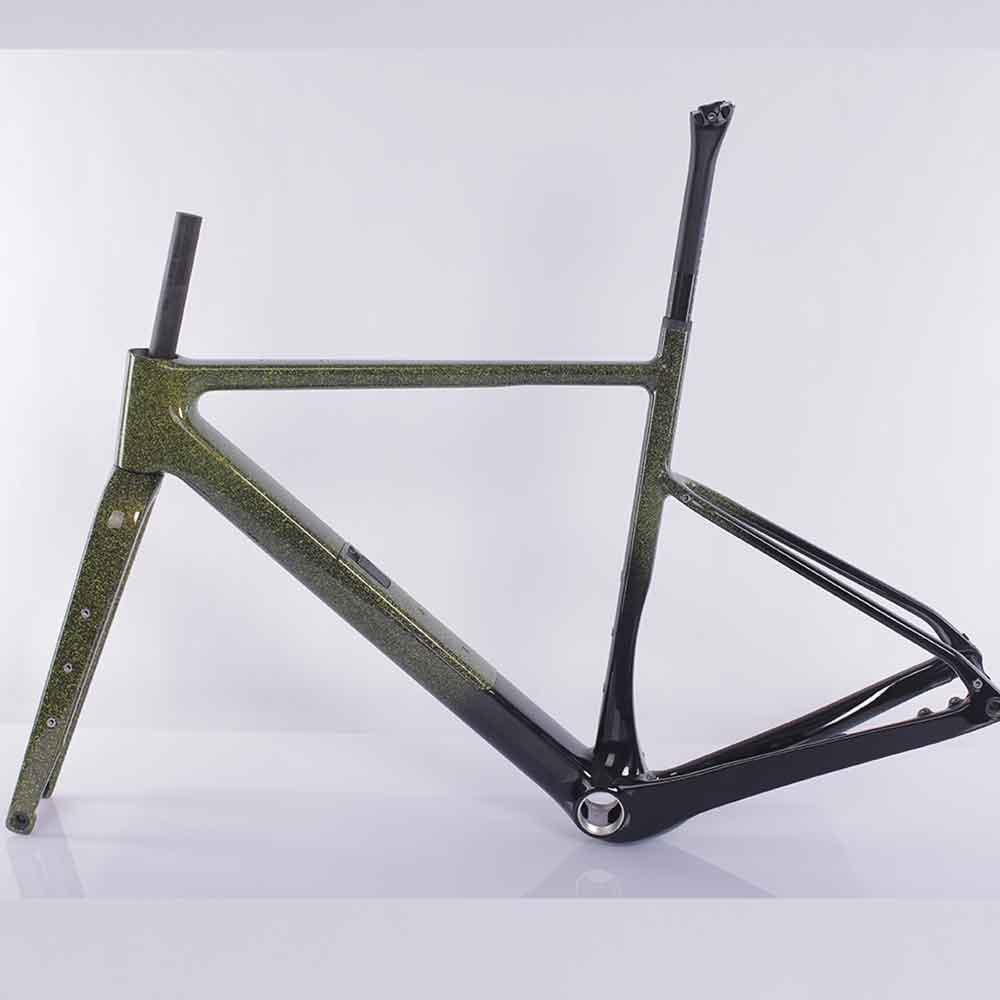

Downtube Storage Carbon Gravel Bike Frame
Factory Capacity
Lead Time: 5000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 30 sets
Sample: Provided

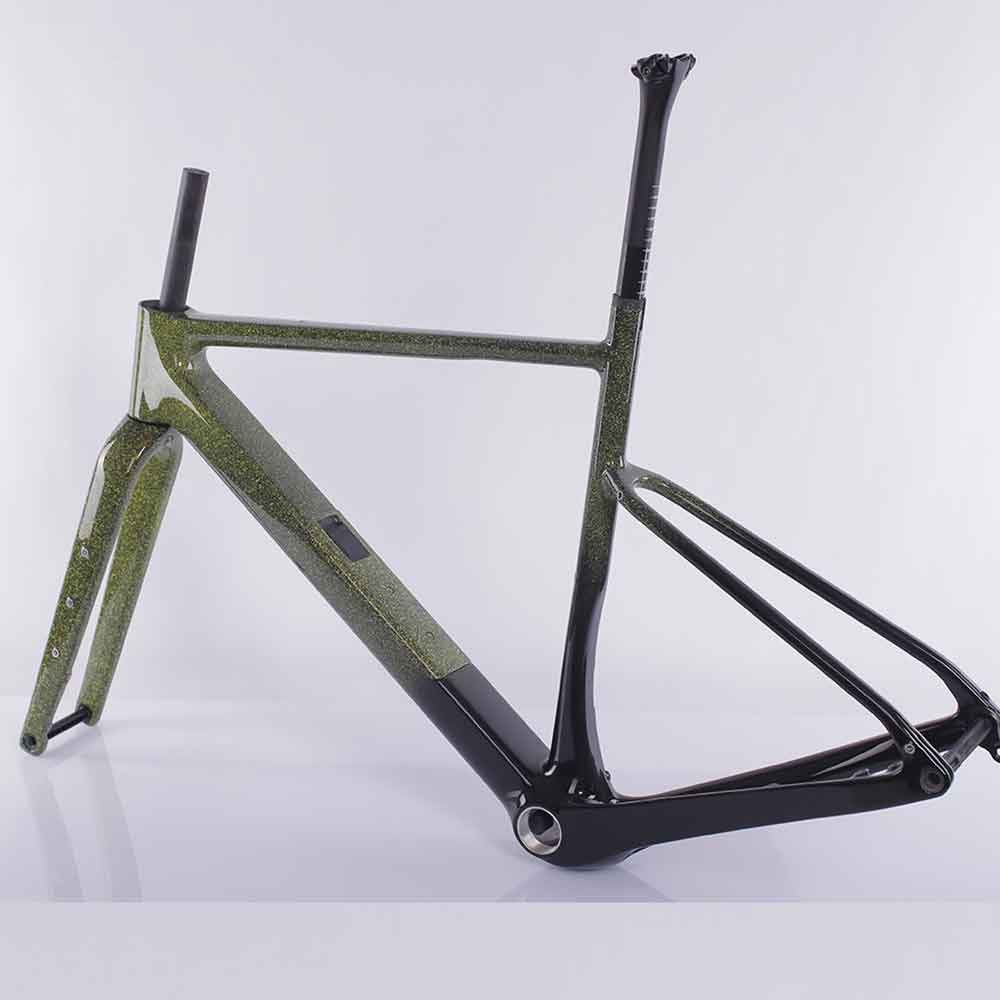

UDH Hanger Carbon Gravel Bike Frame
Frame Data Sheet
Material: 100% Toray T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Frame Weight: 1150g (M Size, Raw Carbon Finished)
Fork Weight: 430/+-15g
Frame: 12*142mm , UDH Hanger
Fork: 12*100mm
Max Tire: 650B*2.1''/700C*50mm
Size: 49/52/54/56/58cm

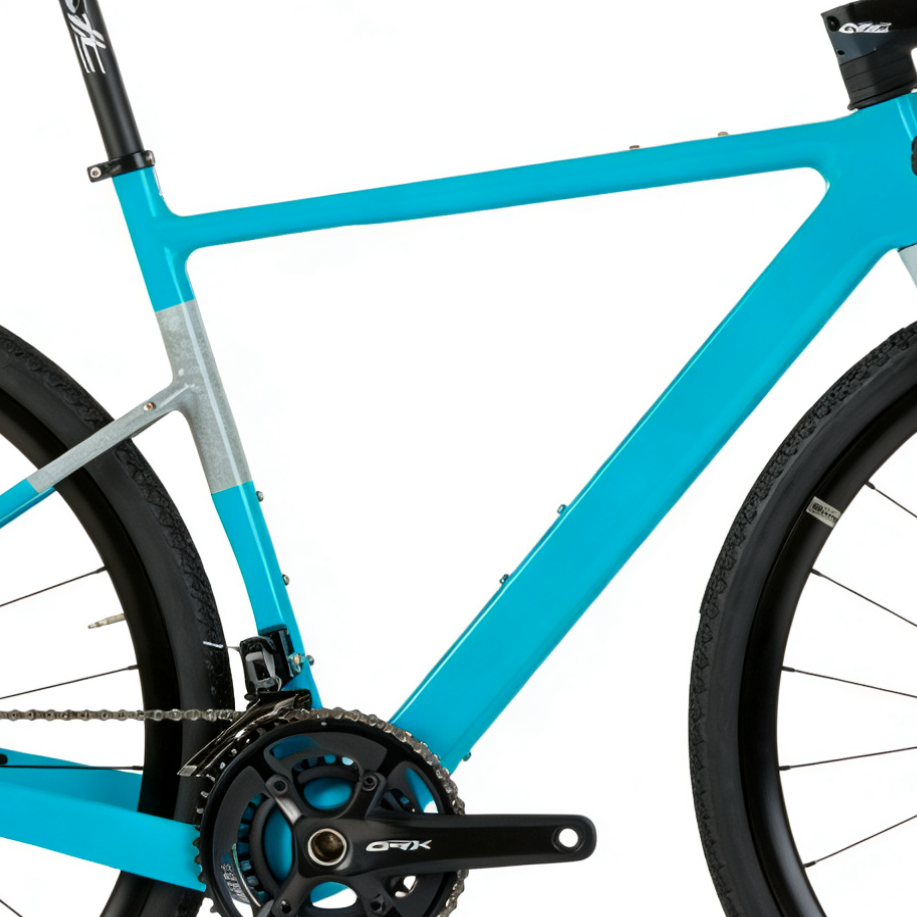

Seatpost: 27.2mm
Key Features:
WITH/WITHOUT DOWNTUBE COVER

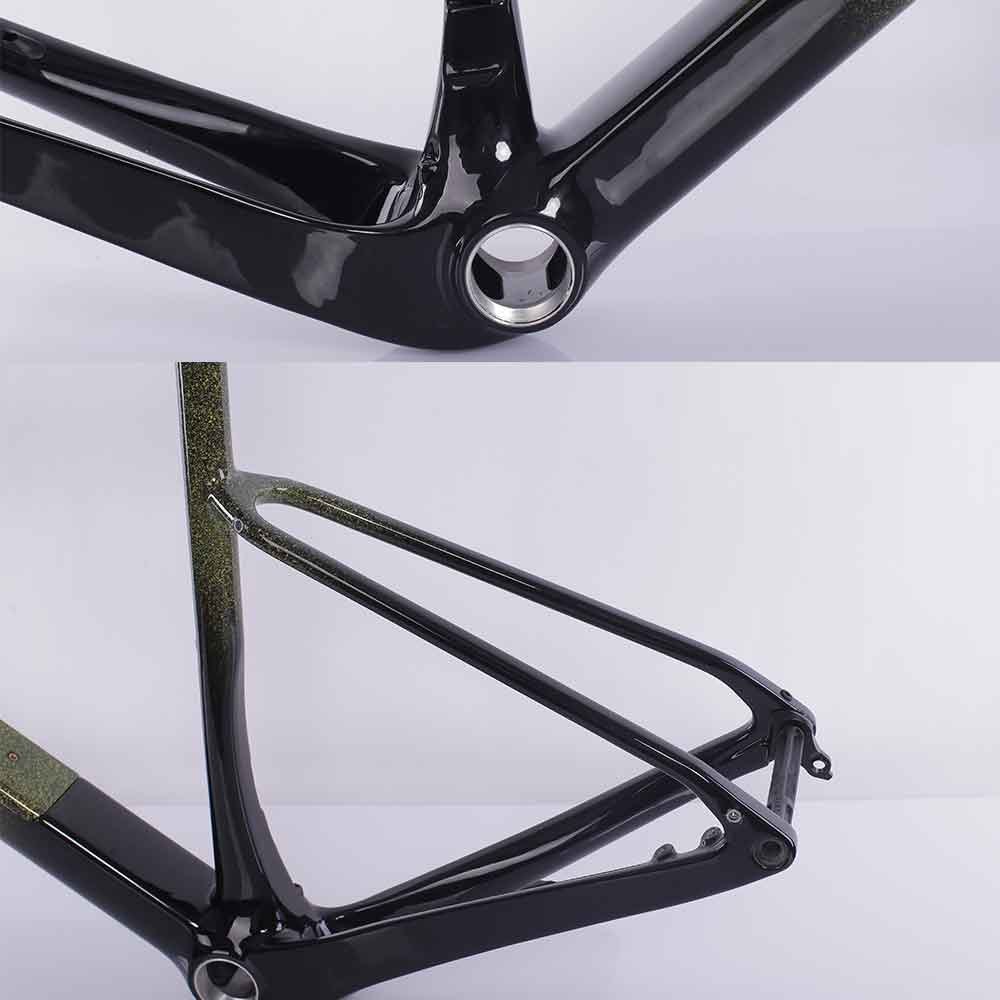

- FULLY INTERNAL CABLE ROUTING
- T47 85.5MM
- FLAT MOUNT 140/160MM DISC BRAKE
- HEADTUBE: 1-/2" (UP AND DOWN)
- FENDER MOUNT
- UDH HANGER
Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- Our series frames use a Toray T800 and T1000 blend – T800 in impact-exposed zones, T1000 where stiffness per gram decides the result.
- FM296, FM306 and FM366 (gravel) are built from T1000, and our lightest road platform FM066 adds T1100.
- For OEM projects we can also build with T700, where toughness and unit cost matter more than stiffness per gram.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
Yes, as an OEM manufacturer, we offer full custom geometry and layup services for brand partners. The MOQ for custom frames is 50 sets. Additional bottle mounts or custom rack mounts can be discussed during the design phase.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
Our frames accommodate up to 700x50mm or 650Bx2.1" tires. FM316 and FM326 are designed for 50mm clearance.
Yes, we stock standard colors with MOQ of 1 set for private customers.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
Fit and Build Support
Size, compatibility and setup guidance before you buy
