FM286 950g Lightweight Carbon Gravel Frameset
Lightweight gravel racing frameset
Choose the FM286 when low weight, quick acceleration and responsive handling are the priority for gravel racing and climbing-focused builds.
- Frame
- Fork
- Seatpost
- Headset
- Axles
- Custom Painting
- Shipping Cost
The final delivered price will be confirmed in your quotation.
Why Mondince FM286 is the Best Lightweight Carbon Gravel Frame for Racing
The Mondince FM286 carbon gravel frame is engineered for competitive racers and weight-conscious riders who demand the perfect balance of ultra-lightweight performance and race-ready stiffness. Starting at just 950g, this Toray T800+T1000 frame delivers exceptional power transfer and climbing efficiency.
Key advantages of the Mondince FM286 include:
- Ultra-lightweight construction — starting at just 950g (size XS raw finished)
- Toray T800+T1000 carbon fiber — premium Japanese carbon for optimal stiffness-to-weight
- T47 85.5mm threaded bottom bracket — creak-free, easy maintenance, maximum stiffness
- UDH hanger — compatible with SRAM Transmission and future drivetrains

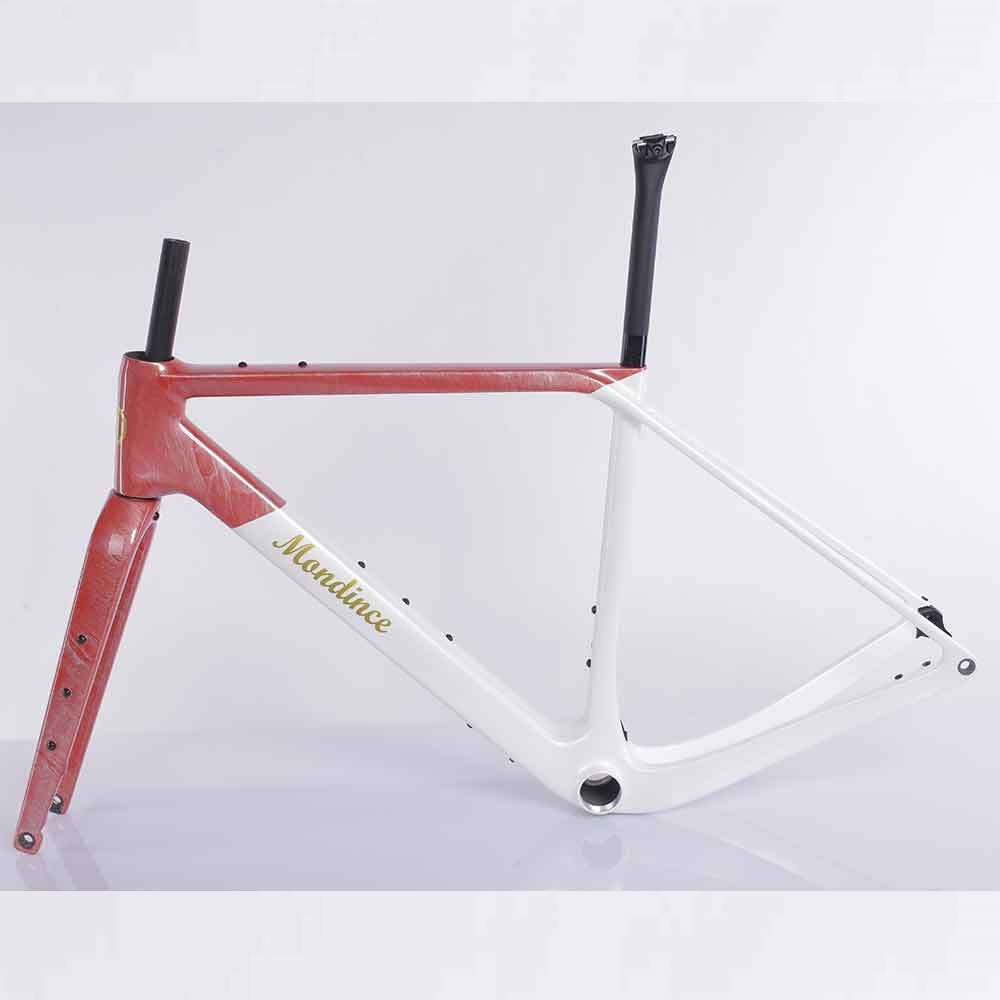

- 50mm tire clearance — fits 700x50c or 650Bx2.1" tires for all-terrain versatility

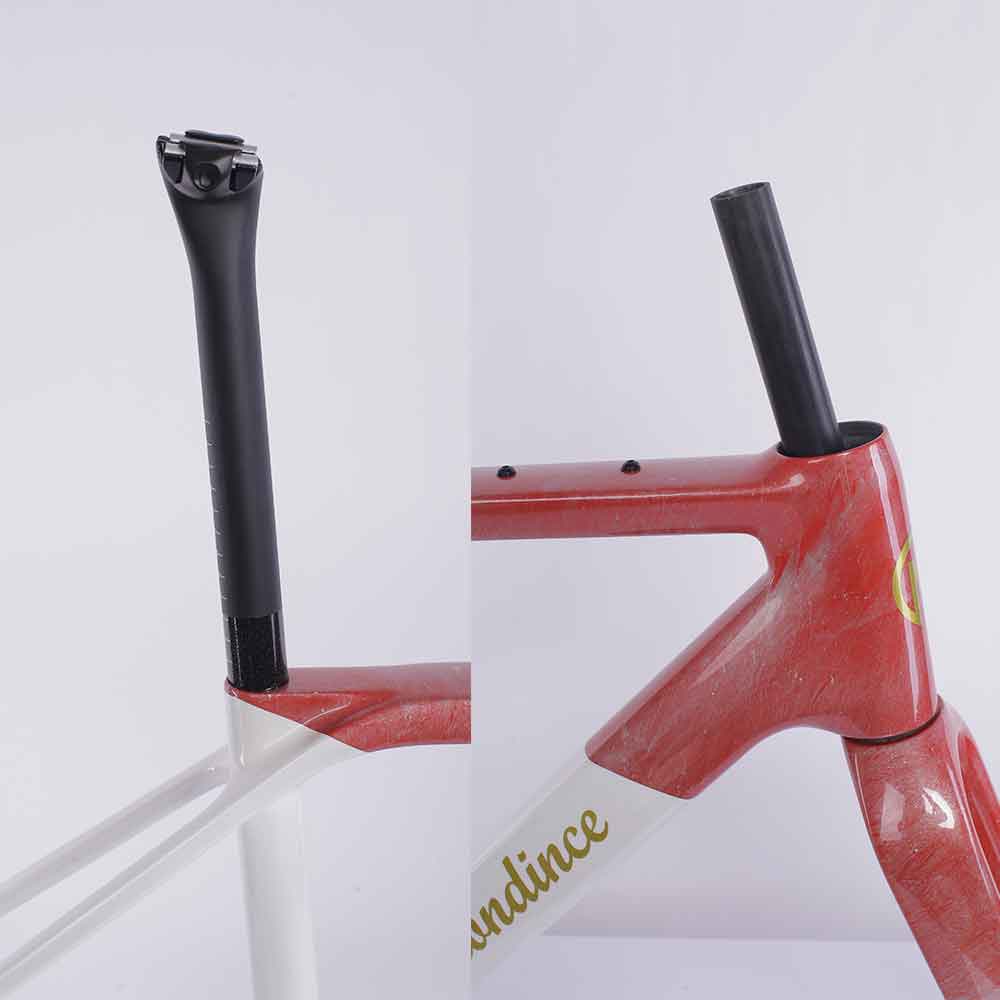

- Hidden seatpost clamp — clean aerodynamic profile
- EN certified — tested to 1.3× ISO 4210 standards
Whether you're a competitive gravel racer, a climbing specialist, or a brand looking for OEM carbon frame manufacturing, the Mondince FM286 offers the ideal lightweight platform. Custom geometry and painting available.
Build your gravel bike with this frameset
Contact us to confirm availability, delivery options or custom requirements. Custom paint and brand customization are quoted separately.

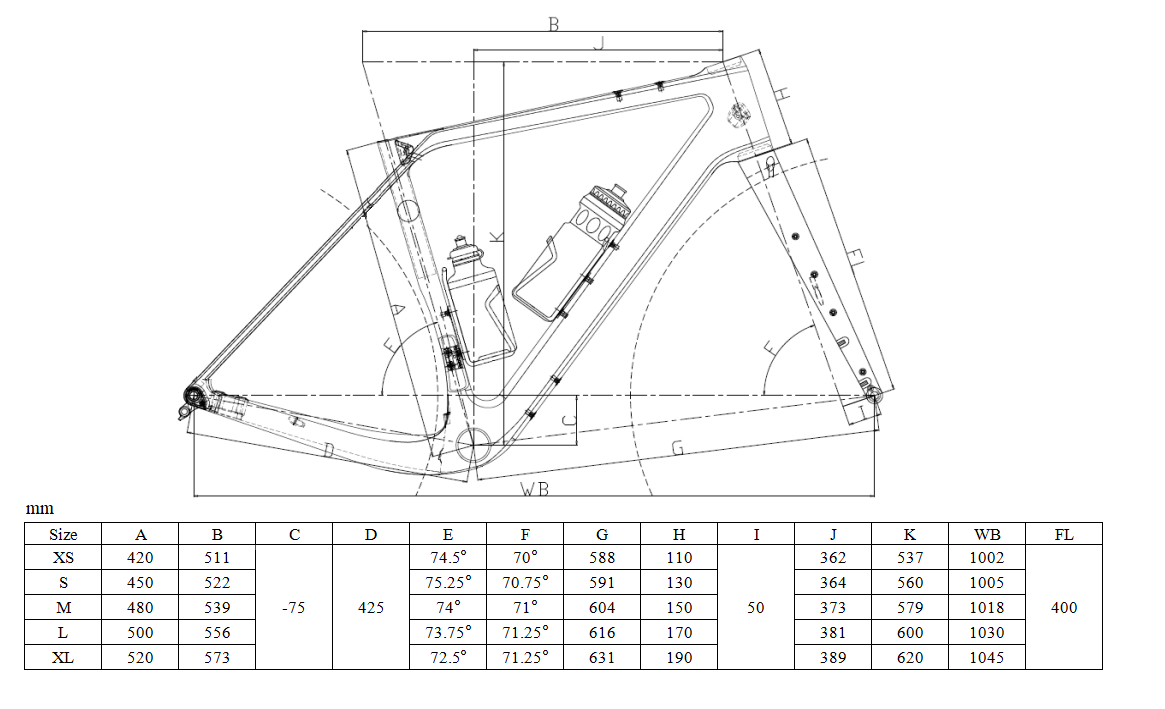

Check Price & Availability → OEM OptionsFrame Detail

| SIZE | A Seat Tube Length |
B Top Tube Length |
C Headtube Length |
D Chainstay Length |
E Front Center |
F Seat Tube Angle |
G Head Tube Angle |
H BB Drop |
I Fork Length |
J Fork Rake/Offset |
K Wheelbase |
L Stack |
M Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 420 | 511 | 110 | 425 | 537 | 74.5° | 70° | 75 | 400 | 50 | 1002 | 537 | 362 |
| 52 | 450 | 522 | 130 | 425 | 560 | 75.25° | 70.75° | 75 | 400 | 50 | 1005 | 560 | 364 |
| 54 | 480 | 539 | 150 | 425 | 579 | 74° | 71° | 75 | 400 | 50 | 1018 | 579 | 373 |
| 56 | 500 | 556 | 170 | 425 | 600 | 73.75° | 71.25° | 75 | 400 | 50 | 1030 | 600 | 381 |
| 58 | 520 | 573 | 190 | 425 | 620 | 72.5° | 71.25° | 75 | 400 | 50 | 1045 | 620 | 389 |
| Specification | Details |
|---|---|
| Material | 100% Toray Grade T800+T1000 Carbon Fiber |
| Frame Weight | 950g (M Size,Raw Carbon Finished); |
| Fork Weight | 420g ± 15g (Uncut); Tapered Crown; 28.6mm Steer Tube |
| Tire Clearance | 700c x 50mm / 650B x 2.1"; 5mm Tire Clearance |
| Bottom Bracket | T47 85.5mm |
| Front Derailleur | 1*12/2*12 Shimano Or Sram; |
| Seatpost | 27.2mm Round, 7*7mm/7*9mm Compatiable |
| Hanger | UDH (Universal Derailleur Hanger), 1.0mm Pitch |
| Brake Type | Disc Brake (Flat Mount) |
| Rotor Size (Max) | 140/160mm (Front), 140/160mm (Rear) |
| Axle Standard | AL7075 Anodized Black, 12x124mm*1.0P (Front) / 12x168mm*1.0P (Rear) |
| Headtube | 1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD |
| Bearing Size | 52mm OD, 40mm ID Upper And Lower; 7mm Height Upper, 7mm Height Lower |
| Frame Sizes | XS, S, M, L, XL |
| Key Features | Light Weight Design, Comfortable Geometry |

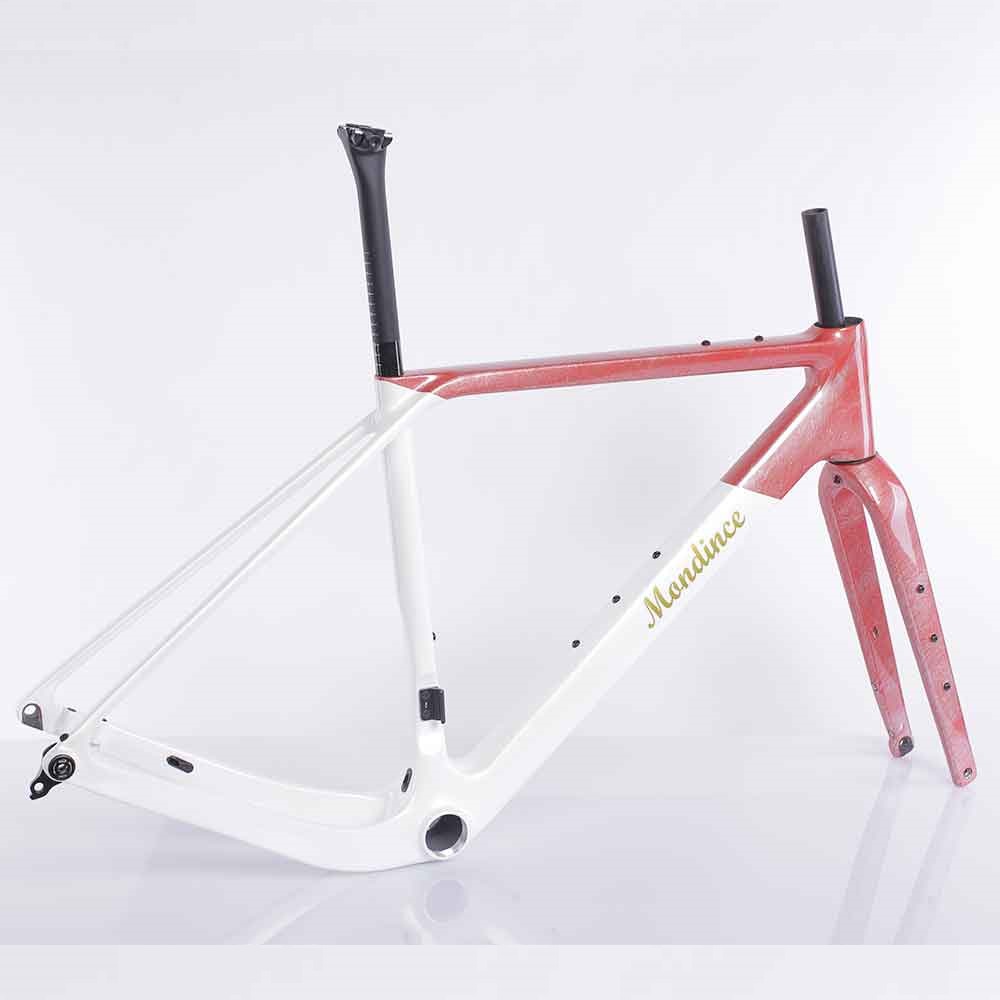

Chinese Super Light Carbon Gravel Bike Frame
Factory Capacity
Lead Time: 5000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
Samples: from 1 frameset, including custom paint. Bulk orders: from 30 framesets. Orders requiring a new mold: from 50 framesets.
Sample: Provided

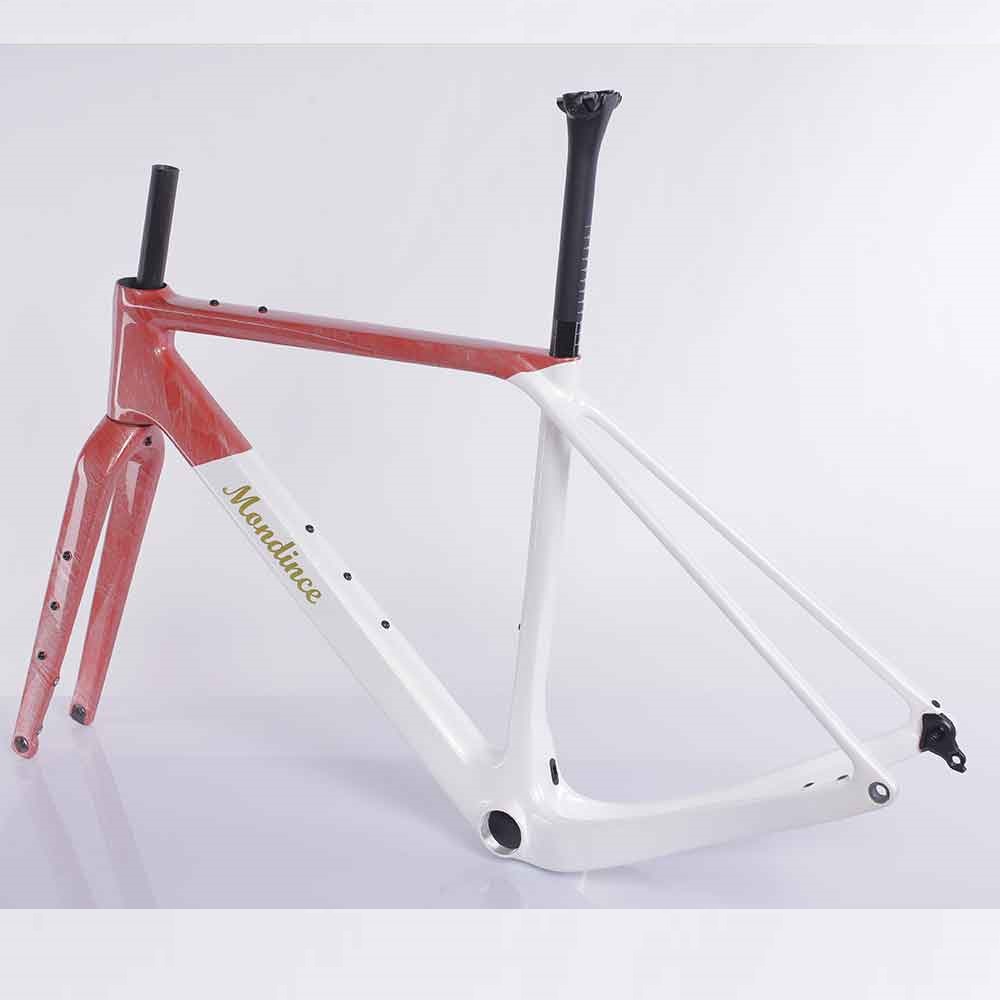

Carbon Racing Super Light Gravel Bike Frame
Frame Data Sheet
Material: 100% Toray T800+T1000 Carbon Fiber
Frame Weight: 980g--1090+-30g(XS--XL, Raw Finished); 12*142mm
Fork 12*100mm, 50mm Rake, 420g+-15g(UD Matt);
Max Tire: 650B*2.1''/700C*50mm
Size: XS/S/M/L/XL
Seatpost: 27.2mm
Key Features:
- LIGHT WEIGHT VERSION
- TORAY T800+T1000 CARBON FIBER
- T47 85.5MM BRACKET
- WITH/WITHOUT RIVETS ON THE FORK LEG
- HEADTUBE: IS52/IS52
- UDH HANGER
- HIDDEN SEATPOST CLAMP
Customer Reviews
Write a ReviewReviews can be submitted by anyone and appear after moderation. We do not verify that a reviewer purchased the product.
No reviews yet. Be the first to review this product!
Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- Our series frames use a Toray T800 and T1000 blend – T800 in impact-exposed zones, T1000 where stiffness per gram decides the result.
- FM296, FM306 and FM366 (gravel) are built from T1000, and our lightest road platform FM066 adds T1100.
- For OEM projects we can also build with T700, where toughness and unit cost matter more than stiffness per gram.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
Yes, as an OEM manufacturer, we offer full custom geometry and layup services for brand partners. The MOQ for custom frames is 50 sets. Additional bottle mounts or custom rack mounts can be discussed during the design phase.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Samples: from 1 frameset, including custom paint. Bulk orders: from 30 framesets. Orders requiring a new mold: from 50 framesets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
Fit and Build Support
Size, compatibility and setup guidance before you buy
