2025 Aero Design Super Light T47 Bracket Road Bike Frame FM106
Factory Direct Price
Contact For Best Price
Weight
980g
Material
Toray Grade T800+T1000
Tire Clearance
40mm
Test Standard
1.3 Times Tested
2-Year Warranty
Free Shipping Worldwide
5-10 Days Delivery
Secure Payment
Payment Methods:
Frame Detail
Aero Road Bike Frame
Super Light Aero Bike Frame

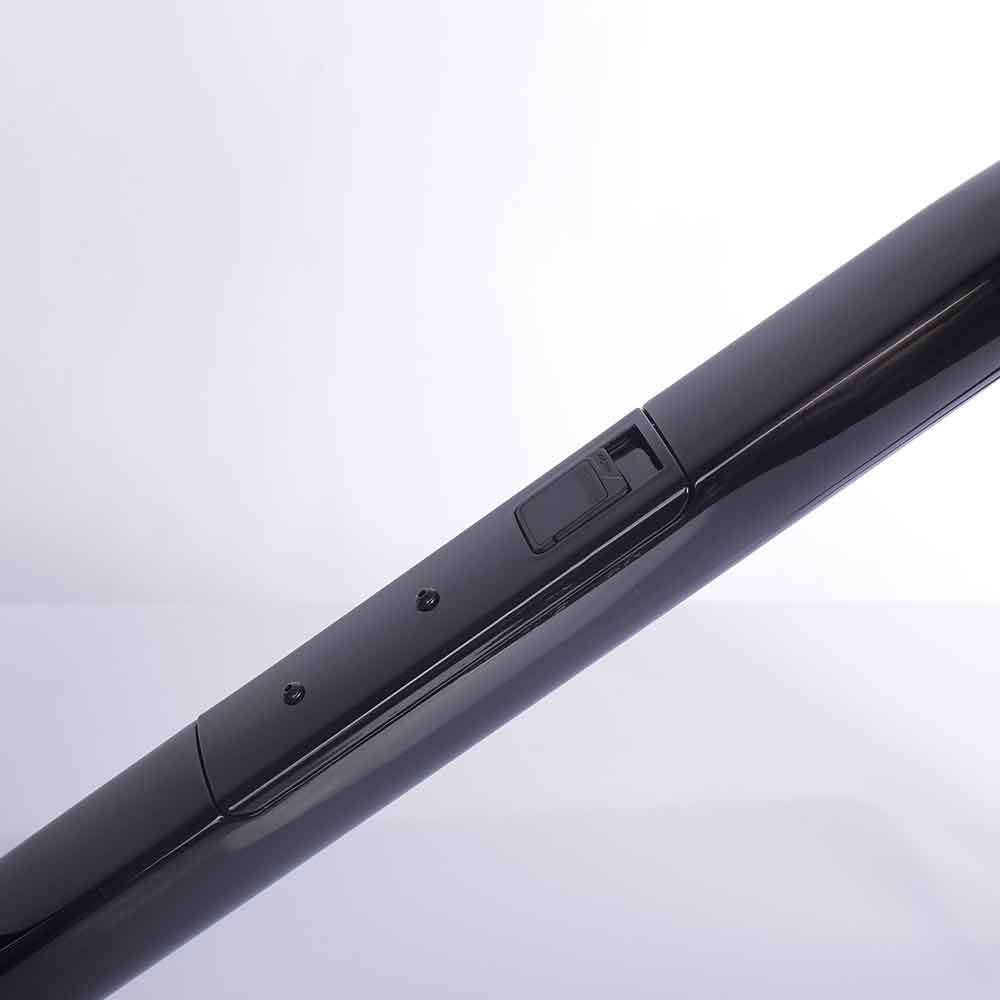

Downtube Storage Room
All Road Bike Frame
T47 Bracket UDH Hanger
Super Light Aero Full Carbon Fiber Road Bike Frame
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 20 sets
Sample: Provided
Aero Design Super Light T47 Bracket Road Bike Frame

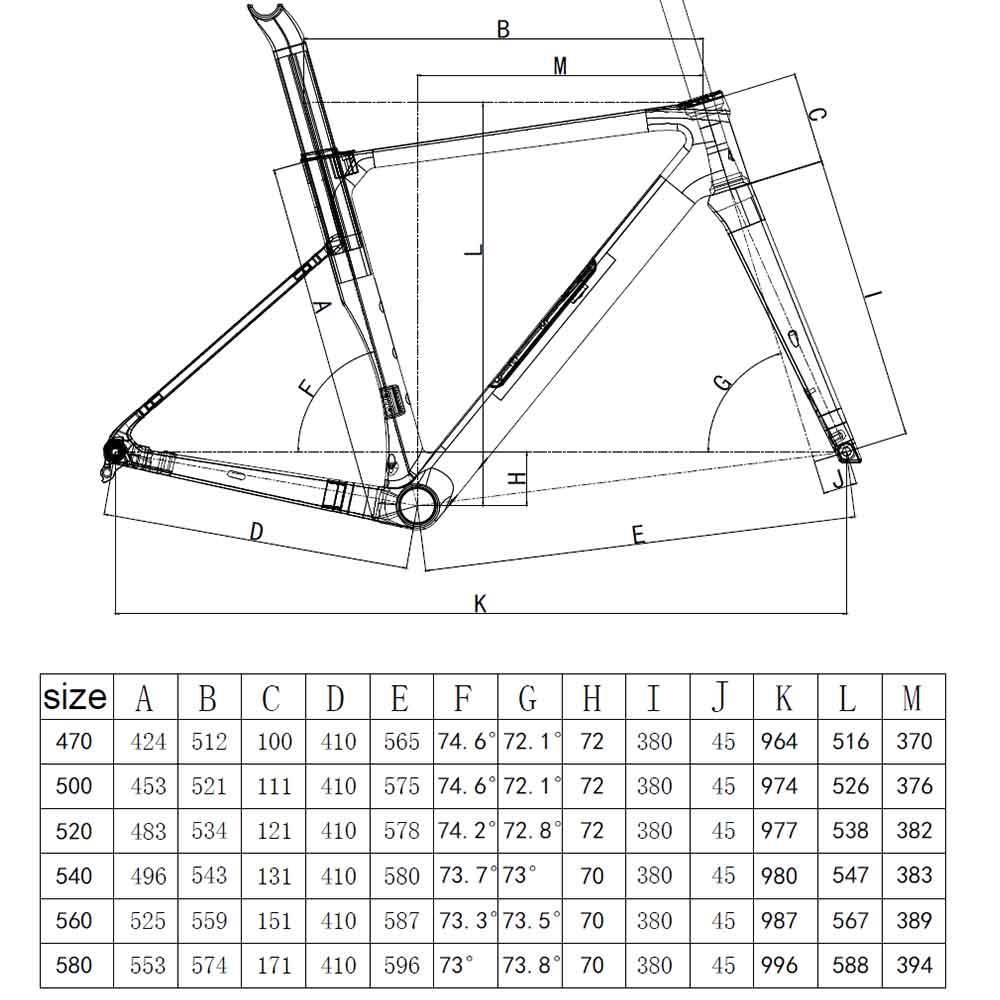

Frame Data Sheet
Material: 100% T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Hanger:UDH
Frame Weight: 980g+-30g(52)
Fork Weight: 360g+-15g
Frame: 12*142mm
Fork: 12*100mm
Max Tire: 700*40C
Size:49/52/54/56/58
Key Features:
WITH/WITHOUT STORAGE SPACE AT DOWNTUBE
- FULLY INTERNAL CABLE ROUTING
- T47/UDH
- FLAT MOUNT 140/160MM DISC BRAKE
- HEADTUBE: 1-/2" (UP AND DOWN)
- HIDDEN CLAMP
Frequently Asked Questions
The frame weighs approximately N/A for size 54cm (±30g). The fork weighs 420g uncut.
The frame accommodates tires up to 45mm. For gravel riding, we recommend 40-45mm.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 20 sets.
All frames come with a 2-year warranty against manufacturing defects.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
130% ISO Tested
Exceeds safety standards by 30%
Custom Painting
Any RAL/Pantone color
Custom Geometry
Tailored fit available
