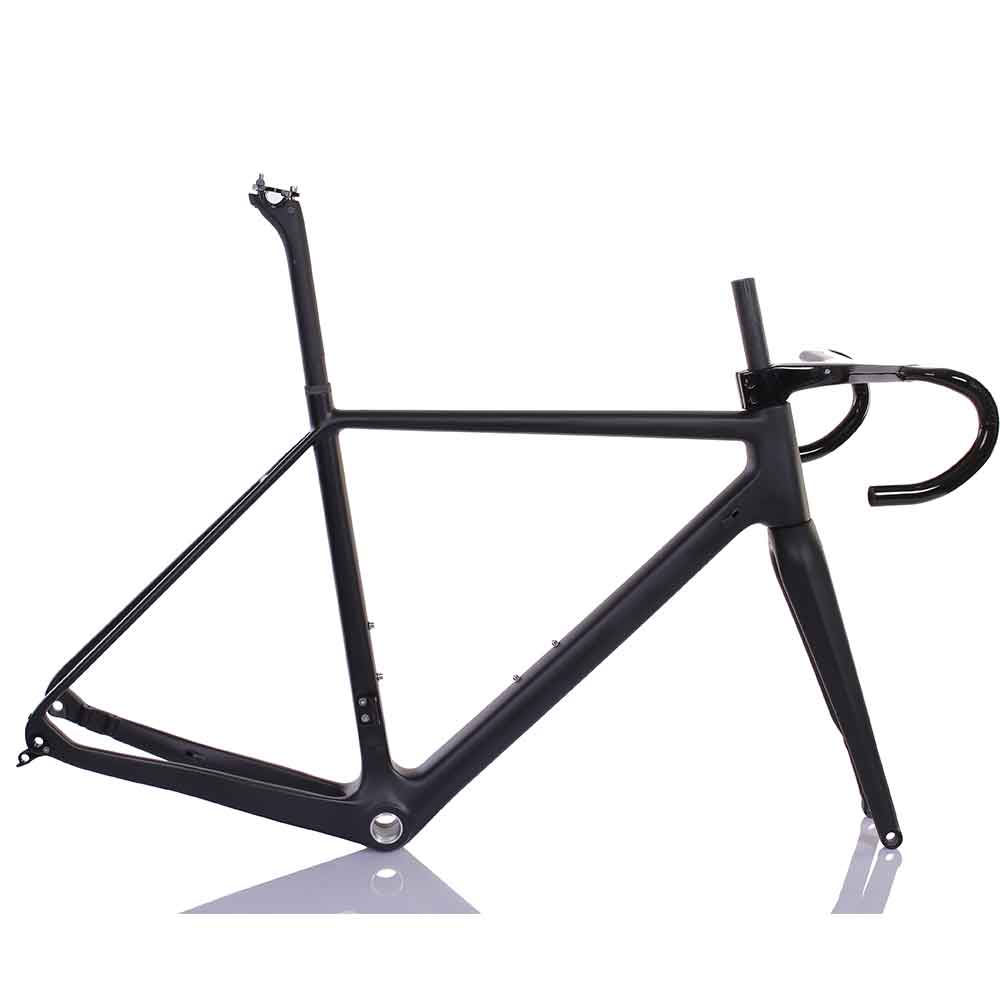

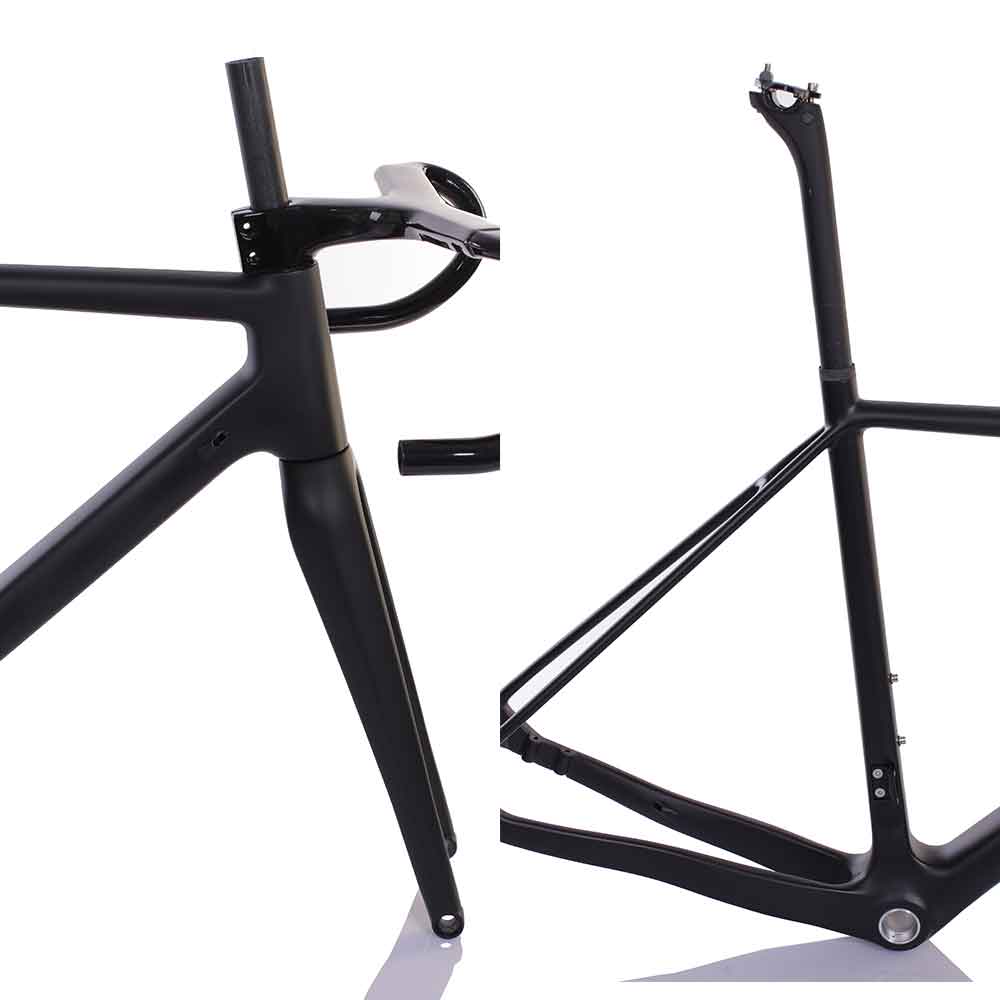

FM166 Carbon Cyclocross Frameset
- Frame
- Fork
- Seatpost
- Headset
- Axles
- Custom Painting
- Shipping Cost
The final delivered price will be confirmed in your quotation.

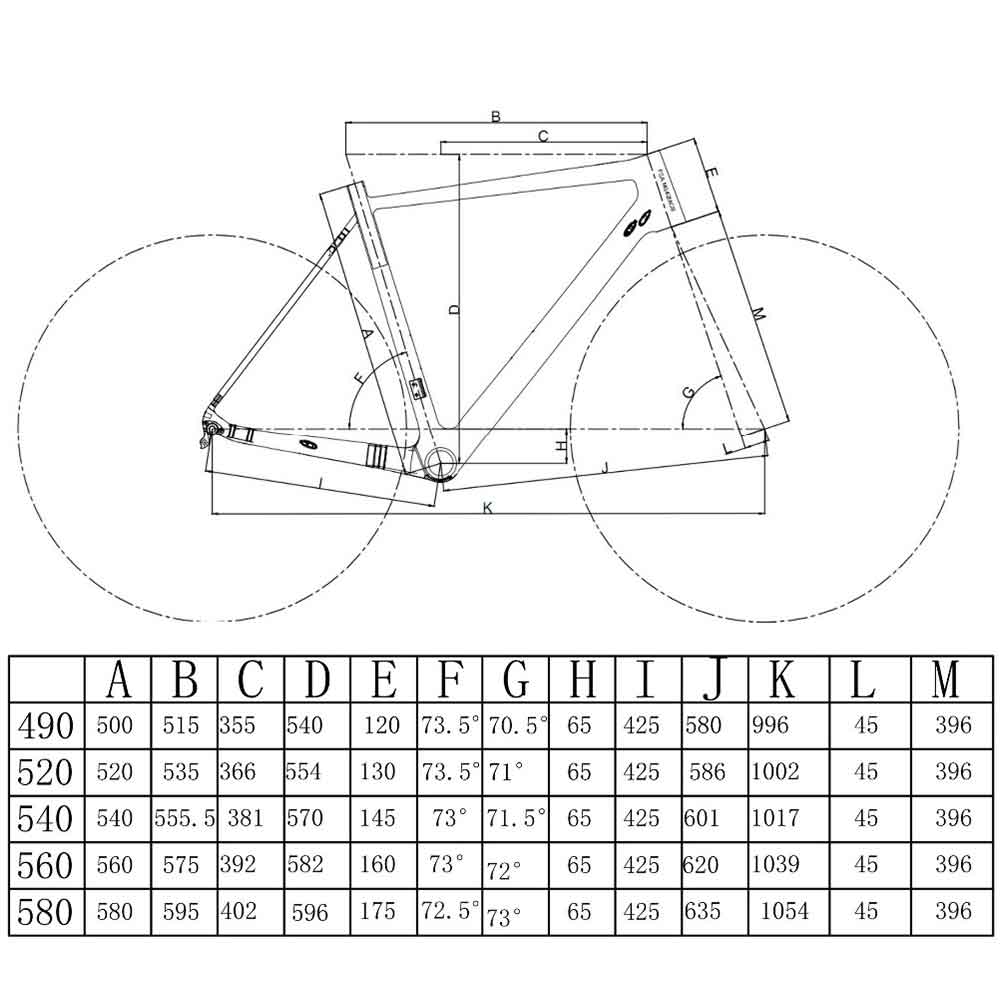

Frame Detail

| SIZE | A Seat Tube Length | B Top Tube Length | C Reach | D Front Center | E Headtube Length | F Seat Tube Angle | G Head Tube Angle | H BB Drop | I Fork Rake/Offset | J Chainstay Length | K Wheelbase | L Fork Length | M Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 490 | 500 | 515 | 355 | 540 | 120 | 73.5° | 70.5° | 65 | 425 | 580 | 996 | 45 | 396 |
| 520 | 520 | 535 | 366 | 554 | 130 | 73.5° | 71° | 65 | 425 | 586 | 1002 | 45 | 396 |
| 540 | 540 | 555.5 | 381 | 570 | 145 | 73° | 71.5° | 65 | 425 | 601 | 1017 | 45 | 396 |
| 560 | 560 | 575 | 392 | 582 | 160 | 73° | 72° | 65 | 425 | 620 | 1039 | 45 | 396 |
| 580 | 580 | 595 | 402 | 596 | 175 | 72.5° | 73° | 65 | 425 | 635 | 1054 | 45 | 396 |
No specifications available for this product.

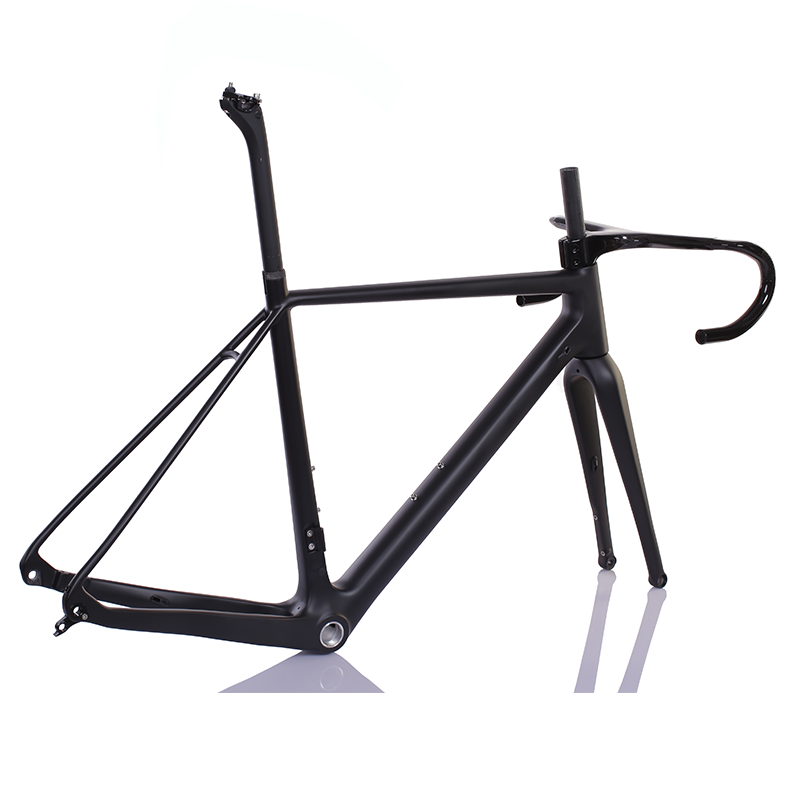

BSA Cyclocross Bike Frame
Factory Capacity
Lead Time: 5000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
Samples: from 1 frameset, including custom paint. Bulk orders: from 30 framesets. Orders requiring a new mold: from 50 framesets.
Sample: Provided

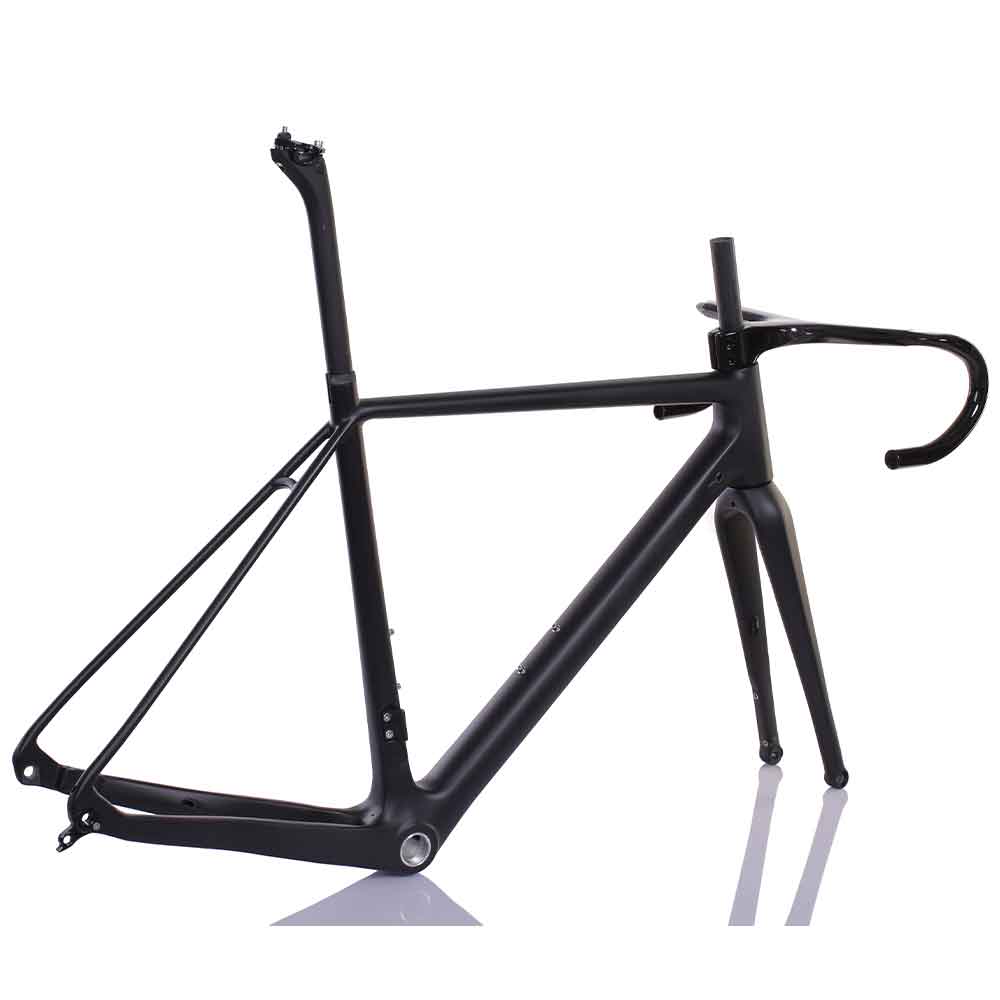

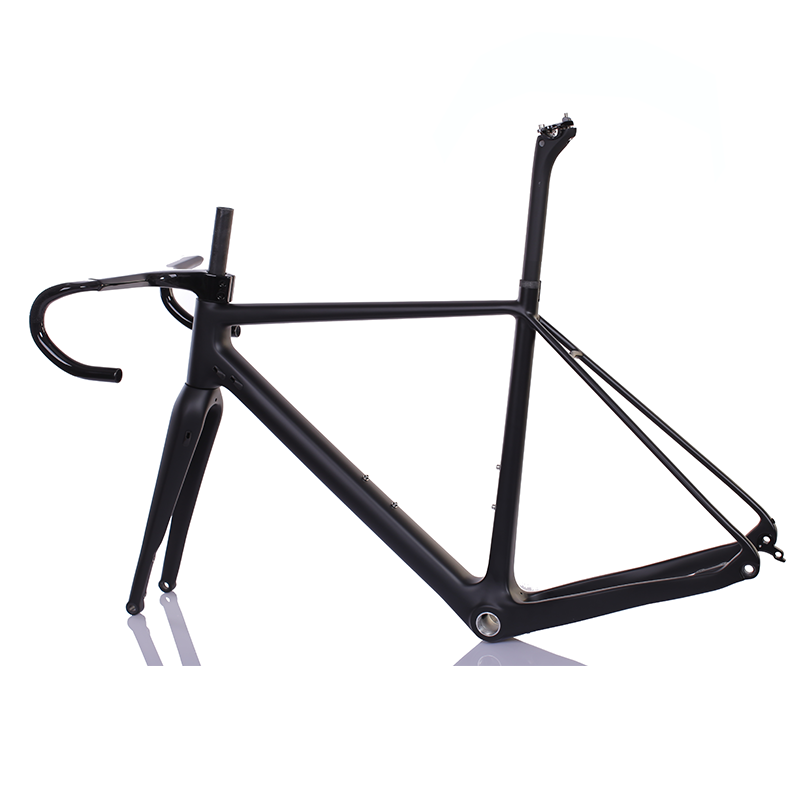

Carbon Fiber Cyclocross Bike Frameset
Frame Data Sheet
Material: 100% Toray T800+T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Color: All Colors Available
Size:: 49/52/54/56/58cm
Frame Weight: 1020/+-30g (49)
Fork Weight: 415/+-15g

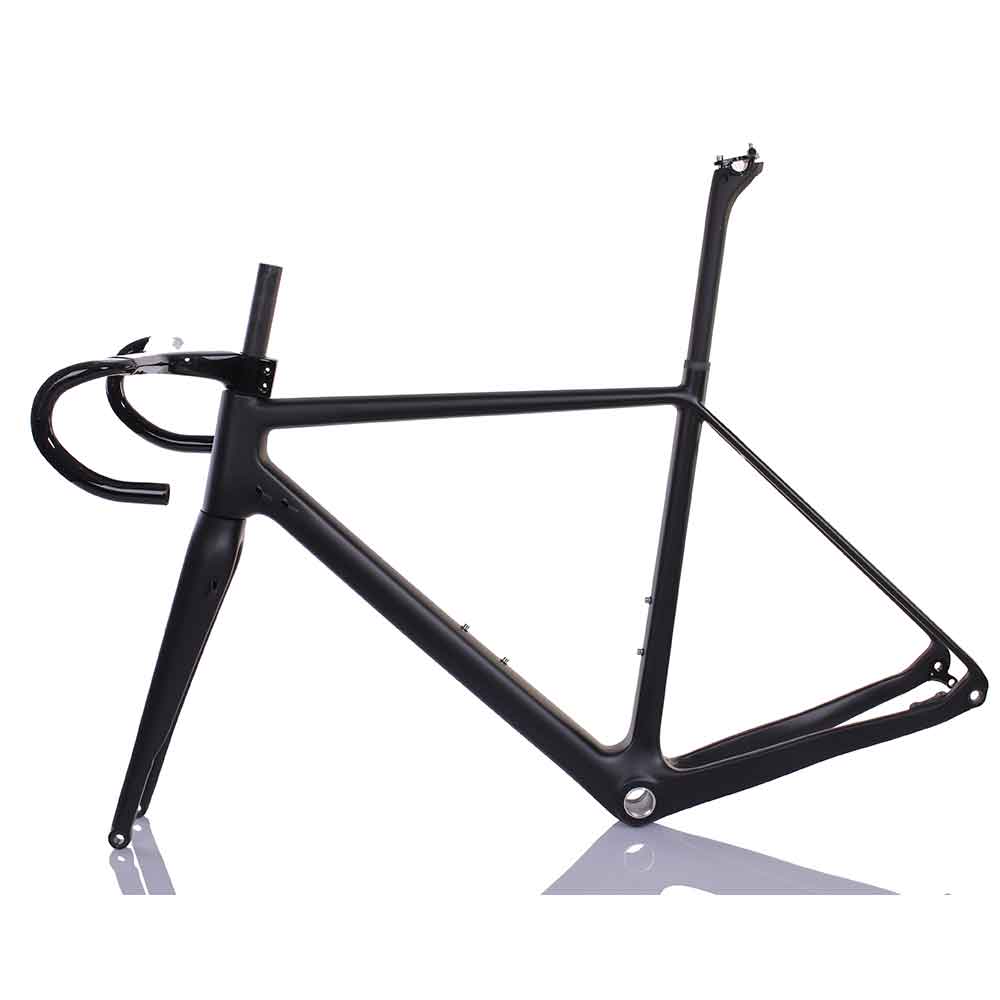

Tire Size: 700*42C
Rear Spacing: 12*142mm
Fork Spacing: 12*100mm
Seatpost: 27.2mm
Key Features:

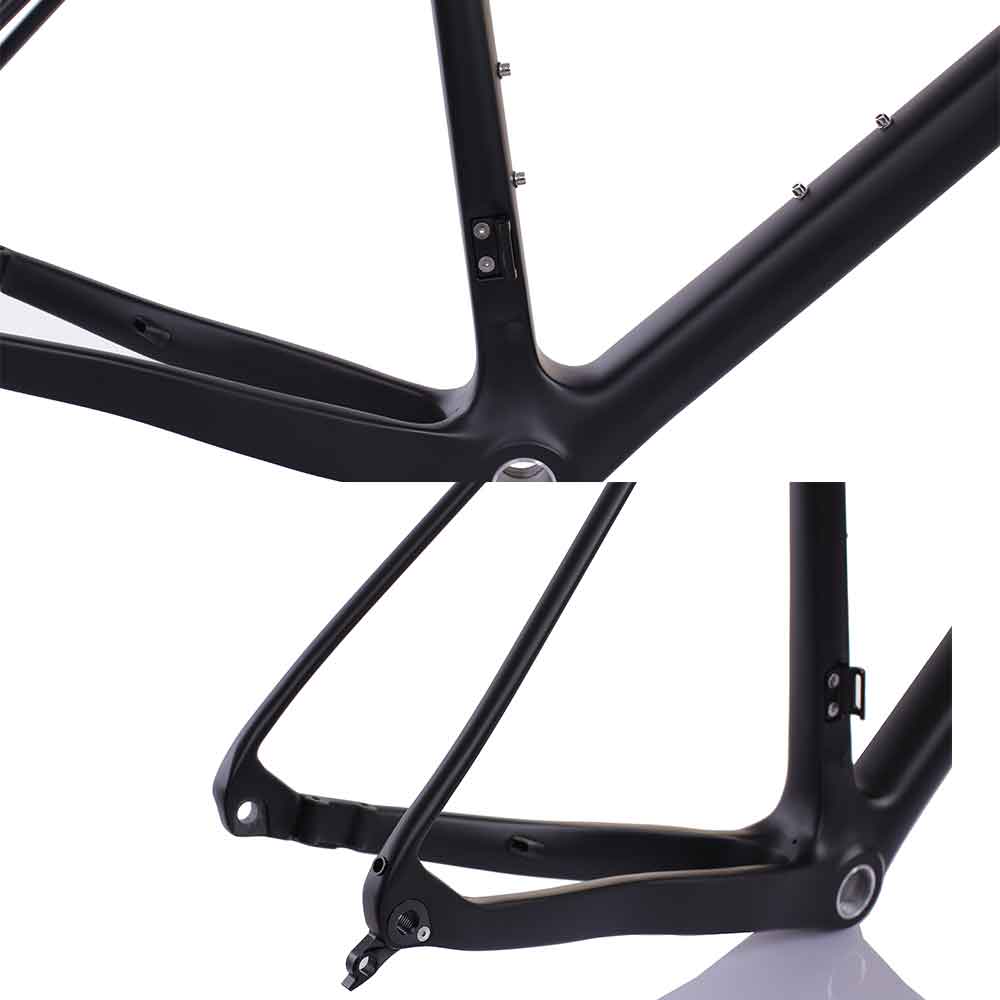

- INTERNAL CABLE ROUTING

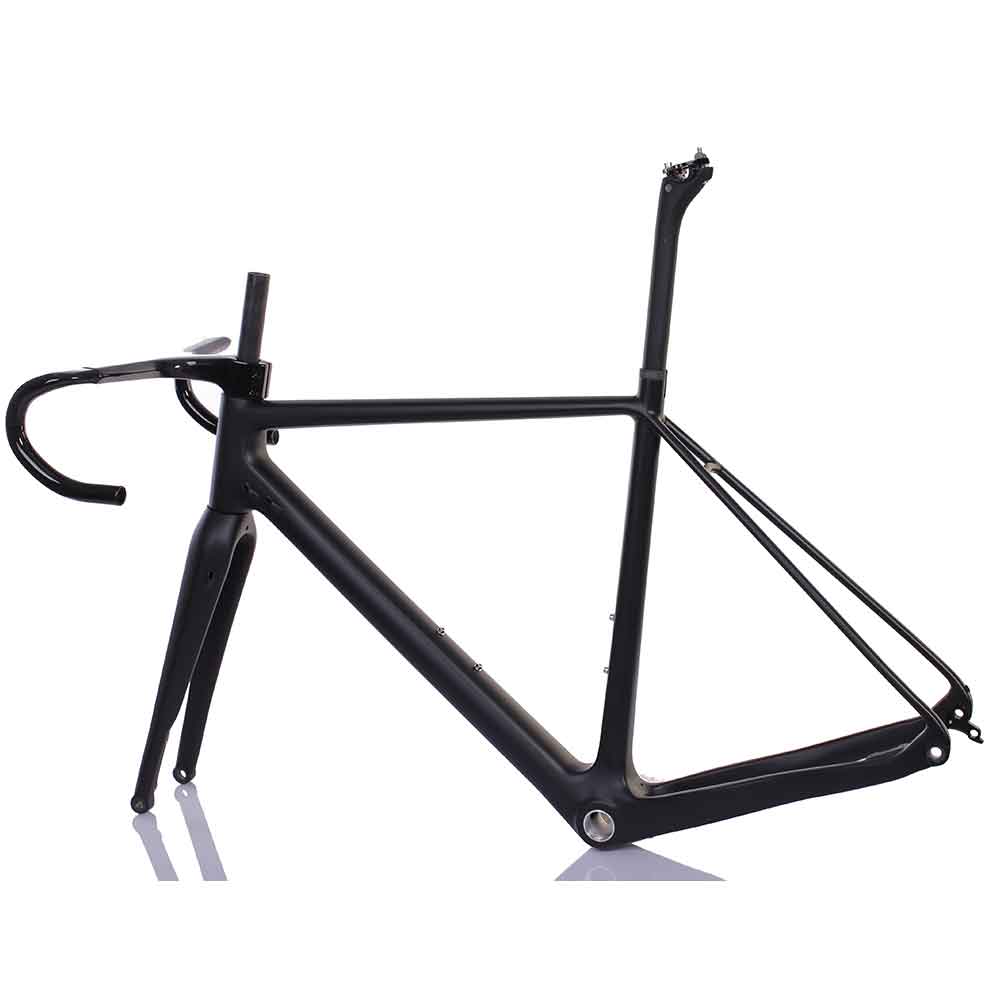

- BSA/BB30/PF30
- FLAT MOUNT 140/160MM DISC BRAKE
- HEADTUBE: 1-1/8''(UP)1-/2" (DOWN)
- 27.2MM SEATPOST
Customer Reviews
Write a ReviewReviews can be submitted by anyone and appear after moderation. We do not verify that a reviewer purchased the product.
No reviews yet. Be the first to review this product!
Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- Our series frames use a Toray T800 and T1000 blend – T800 in impact-exposed zones, T1000 where stiffness per gram decides the result.
- FM296, FM306 and FM366 (gravel) are built from T1000, and our lightest road platform FM066 adds T1100.
- For OEM projects we can also build with T700, where toughness and unit cost matter more than stiffness per gram.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Samples: from 1 frameset, including custom paint. Bulk orders: from 30 framesets. Orders requiring a new mold: from 50 framesets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
Fit and Build Support
Size, compatibility and setup guidance before you buy
