FSA HM 1.0 Hub Motor Quick Release Full Carbon Electric Road Bike Frameset FM406
Factory Direct Price
Contact For Best Price
Weight
1150g
Material
Toray Grade T800
Tire Clearance
32mm
Test Standard
1.3 Times Tested
2-Year Warranty
Free Shipping Worldwide
5-10 Days Delivery
Secure Payment
Payment Methods:
Frame Detail

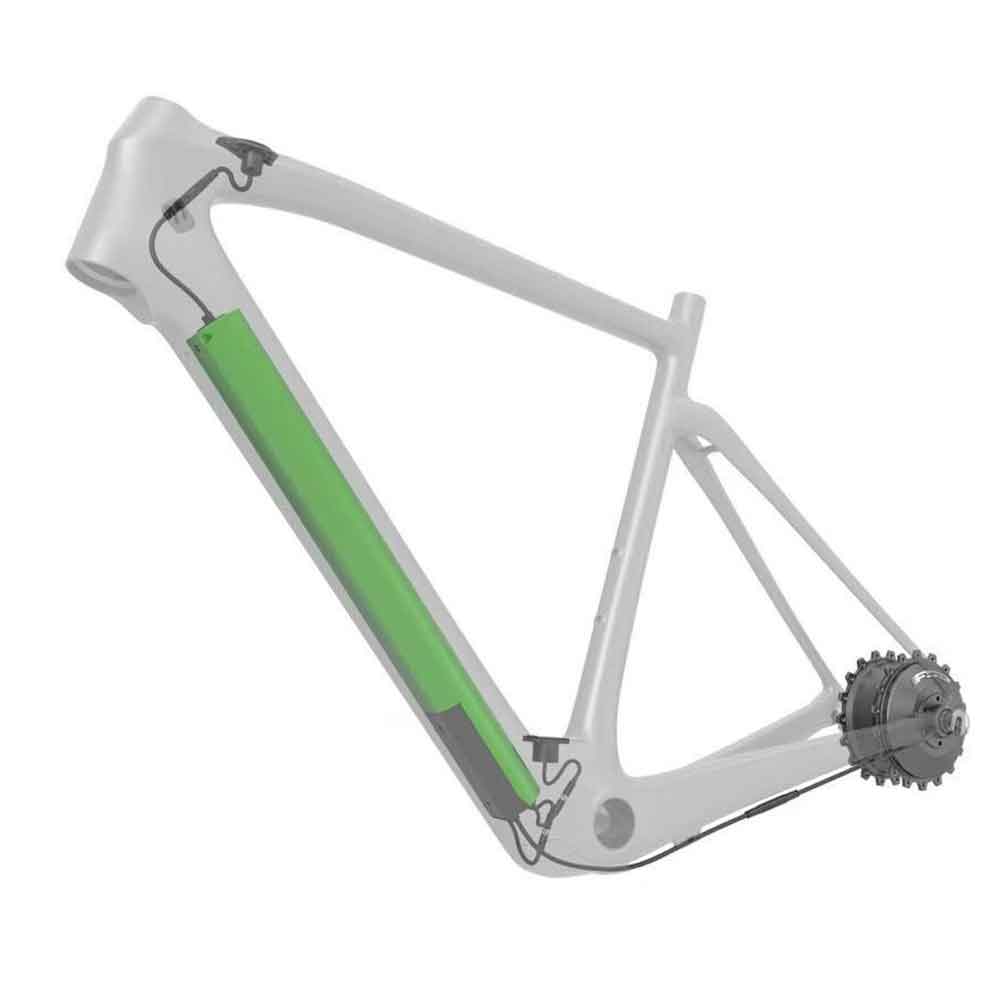

FSA Motor System

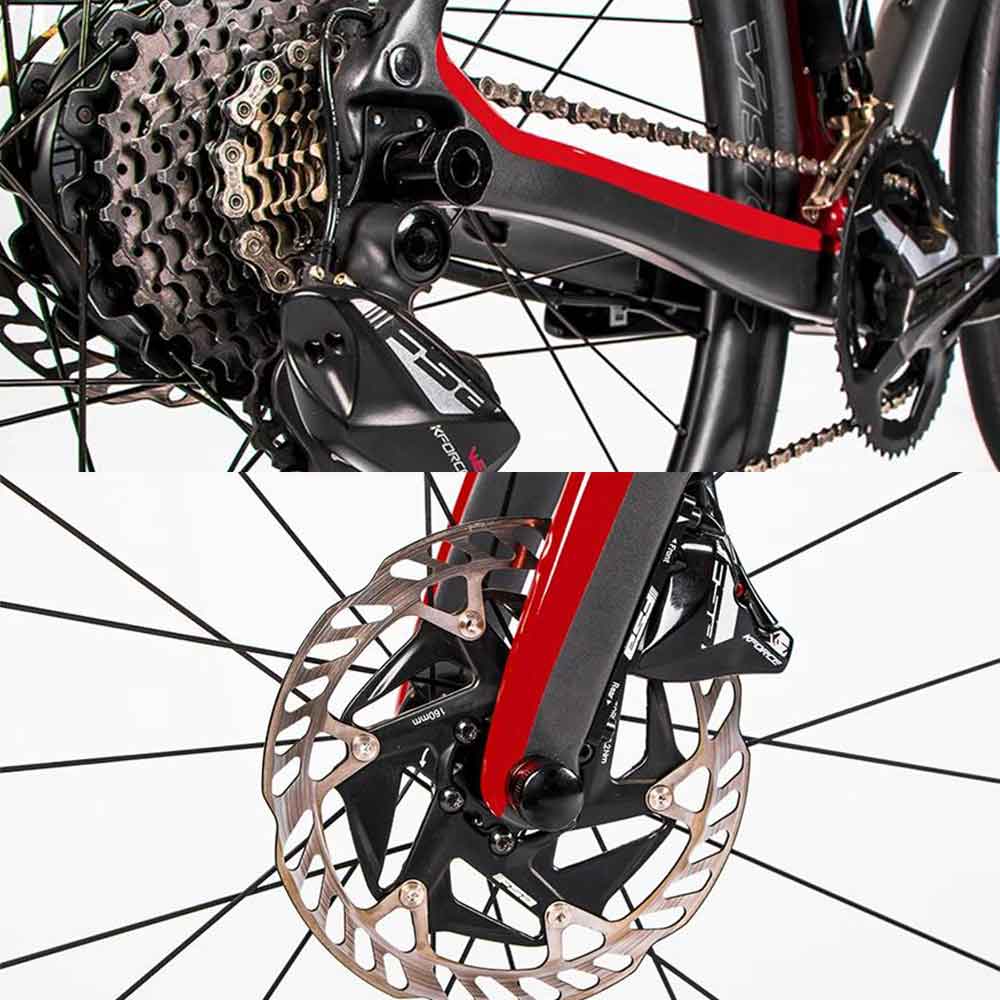

Carbon Electric Road Bike Frame

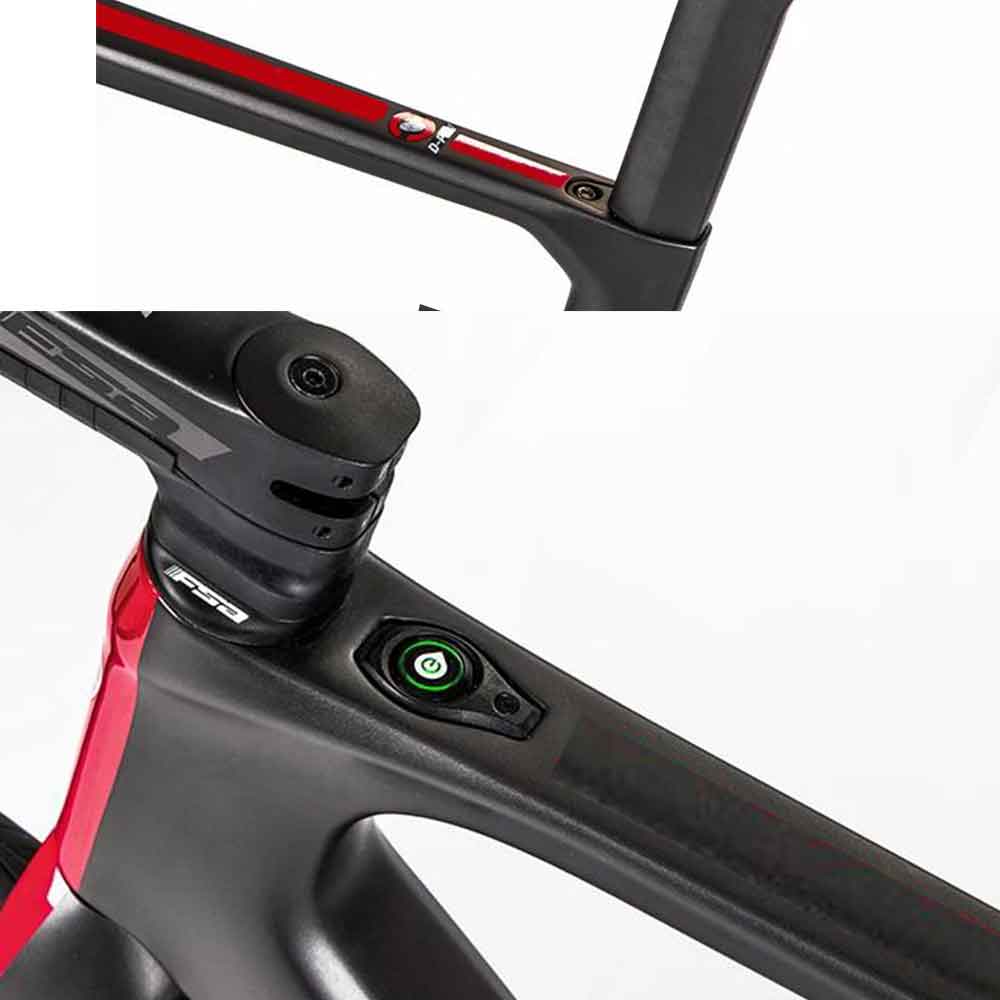

Integrated Battery

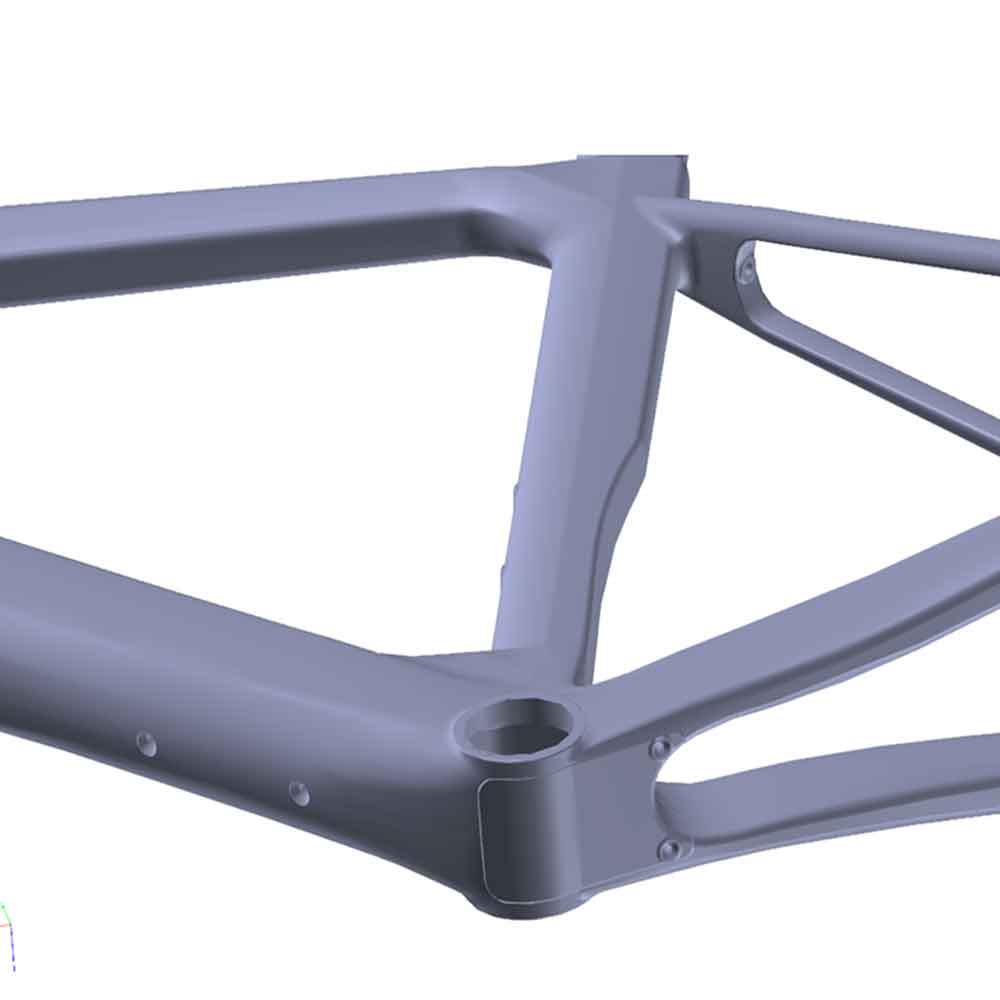

Fully Internal Cable Routing

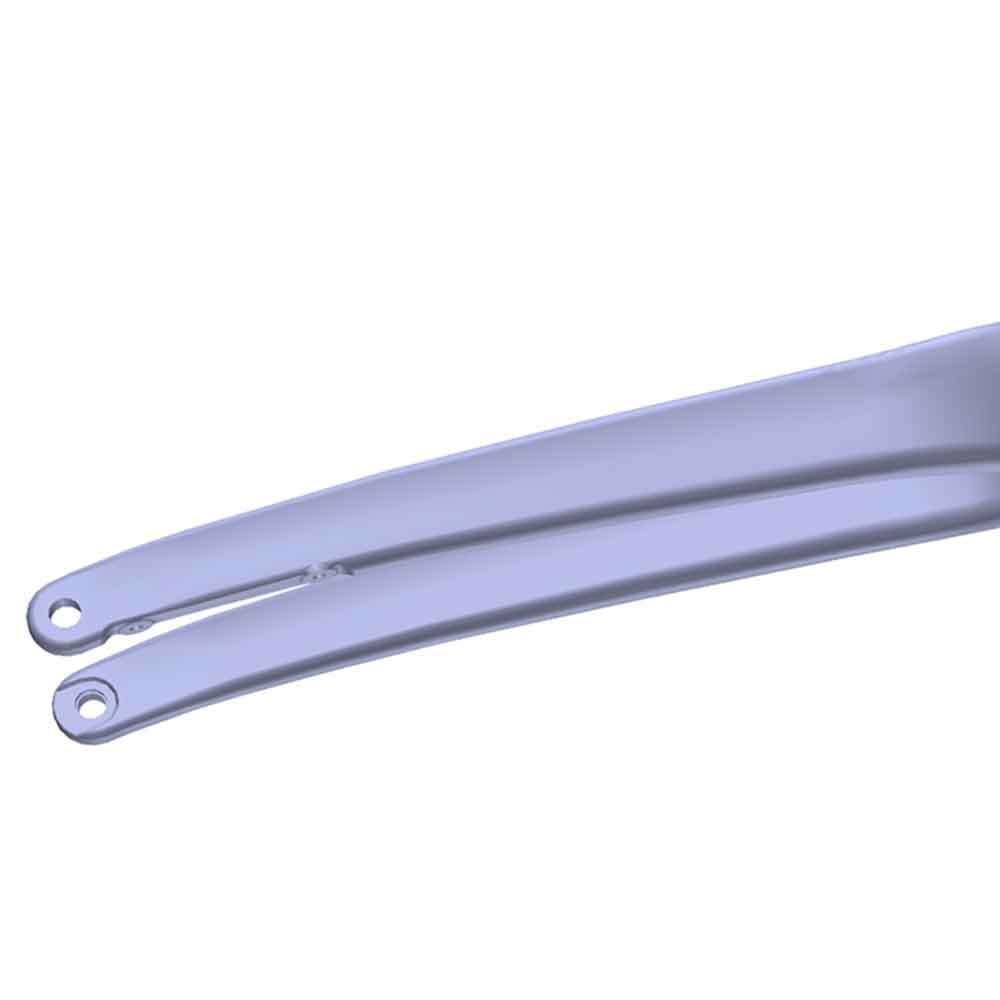

Flat Mount Disc Brake
No specifications available for this product.
Hub Motor FSA Carbon Electric Bike Frame
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 2 sets
Sample: Provided

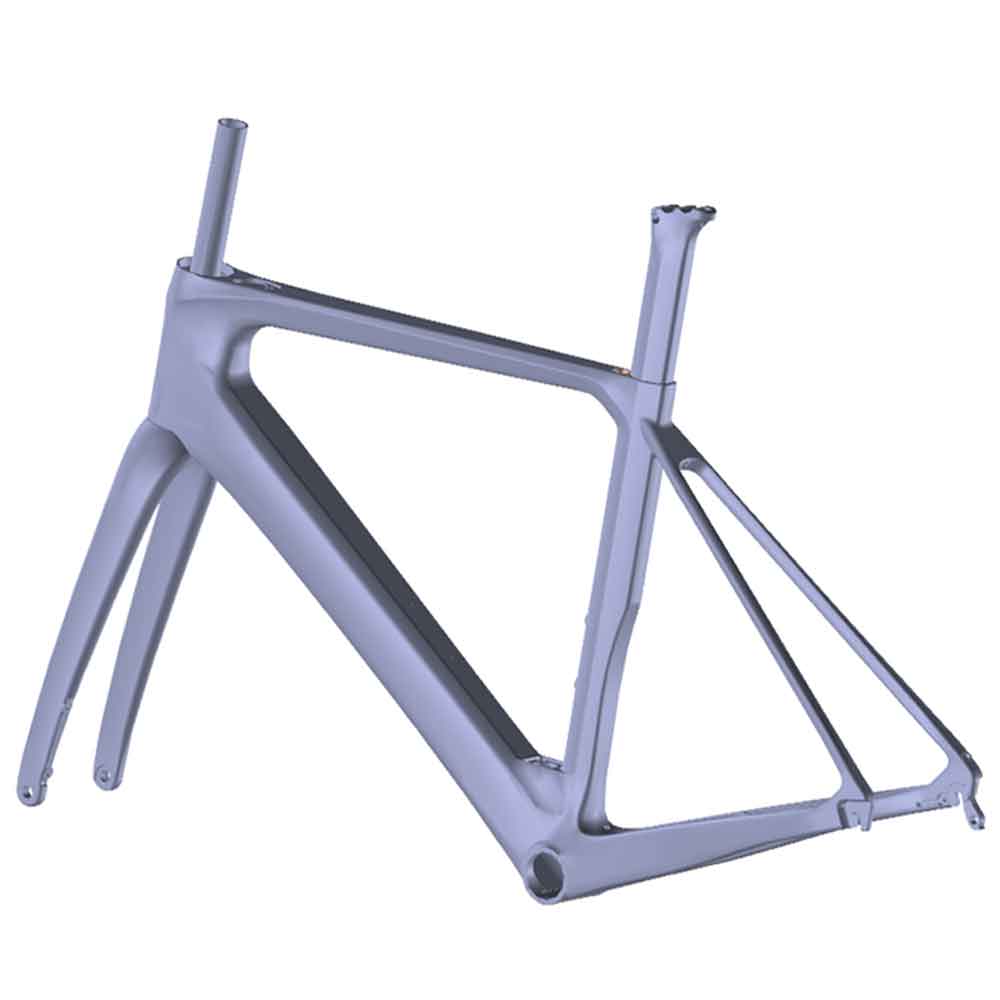

FSA Full Carbon Electric Road Bike Frameset
Frame Data Sheet
Material: 100% Toray T800/T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Color: All Colors Available
Size：S/M/L/XL
Motor: FSA -HM 1.0 Motor(250W, 42Nm)
Battery:250WH Integrated Downtube Battery
Frame Weight: 1150/+-30g (S)
Tire Size : 700*32mm
Rear Spacing : 9*135mm
Fork Spacing: 12*100mm
Seatpost: AERO Type
Key Features:
- INTERNAL CABLE ROUTING
- FSA HM 1.0 HUB MOTOR 250W
- FSA 250WH INTEGRATED BATTERY
- FLAT MOUNT 140/160MM DISC BRAKE
- HEADTUBE: 1-/2" ( UP AND DOWN)
Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
Lead time depends on the complexity of the paint design and frame production.
Normally, production takes 45 days plus an additional 15 days for painting.
For urgent orders, we can prioritize your production schedule, so lead time is negotiable.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- For our standard-weight frames, we use Toray T700 and T800 carbon fiber.
- For customers looking for lightweight frames, we use T800 and T1000 carbon fiber.
All frames are tested to 1.3 times the ISO 4210 standard. We can also provide EN certification upon customer request.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
The carbon weave pattern is based on your requirements, and we will produce accordingly.
For OEM/ODM brands, we can provide free samples for quality inspection first. You will only need to cover the shipping cost.
If you would simply like to verify our product quality, you will be required to pay 50% of the frame cost plus shipping fees.
Feel free to contact us for sample evaluation. We look forward to cooperating with you.
Certainly, we can provide 3D drawings for you. However, you will need to provide us with the tube shape and geometric specifications.
Additionally, we can produce a 3D-printed frame prototype prior to making the steel mold.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
Custom Geometry
Tailored fit available
