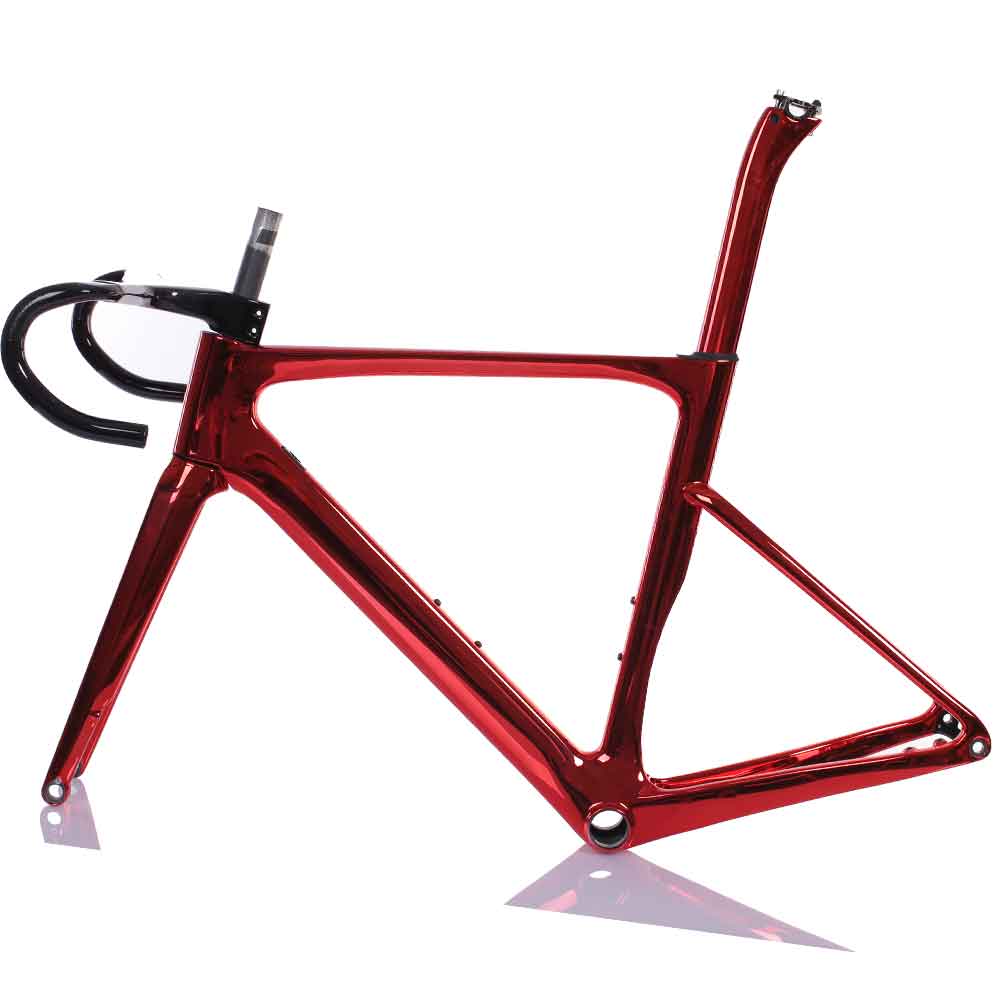

New Designed Fully Internal Cable Routing AERO Road Bike Frameset FM076
Factory Direct Price
Contact For Best Price
Weight
1050g
Material
Toray Grade T800
Tire Clearance
32mm
Test Standard
1.3 Times Tested
2-Year Warranty
Free Shipping Worldwide
5-10 Days Delivery
Secure Payment
Payment Methods:

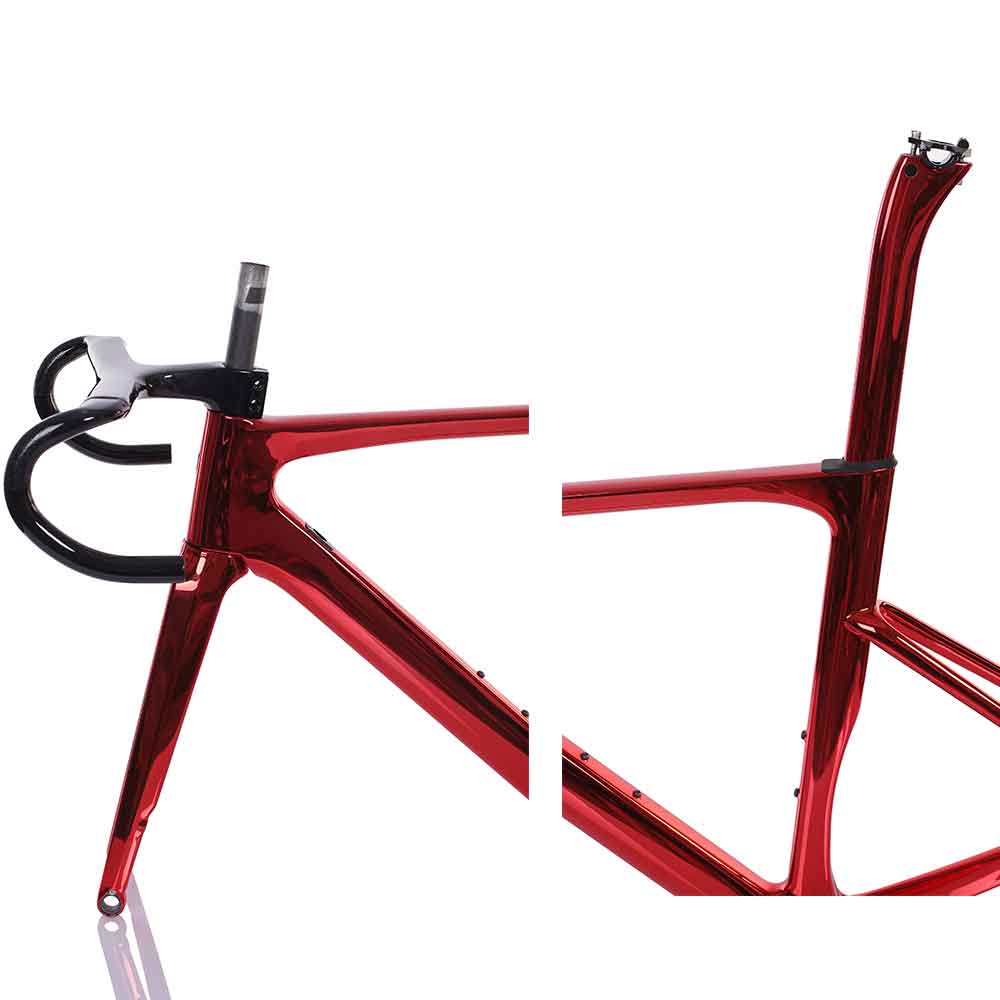

Frame Detail

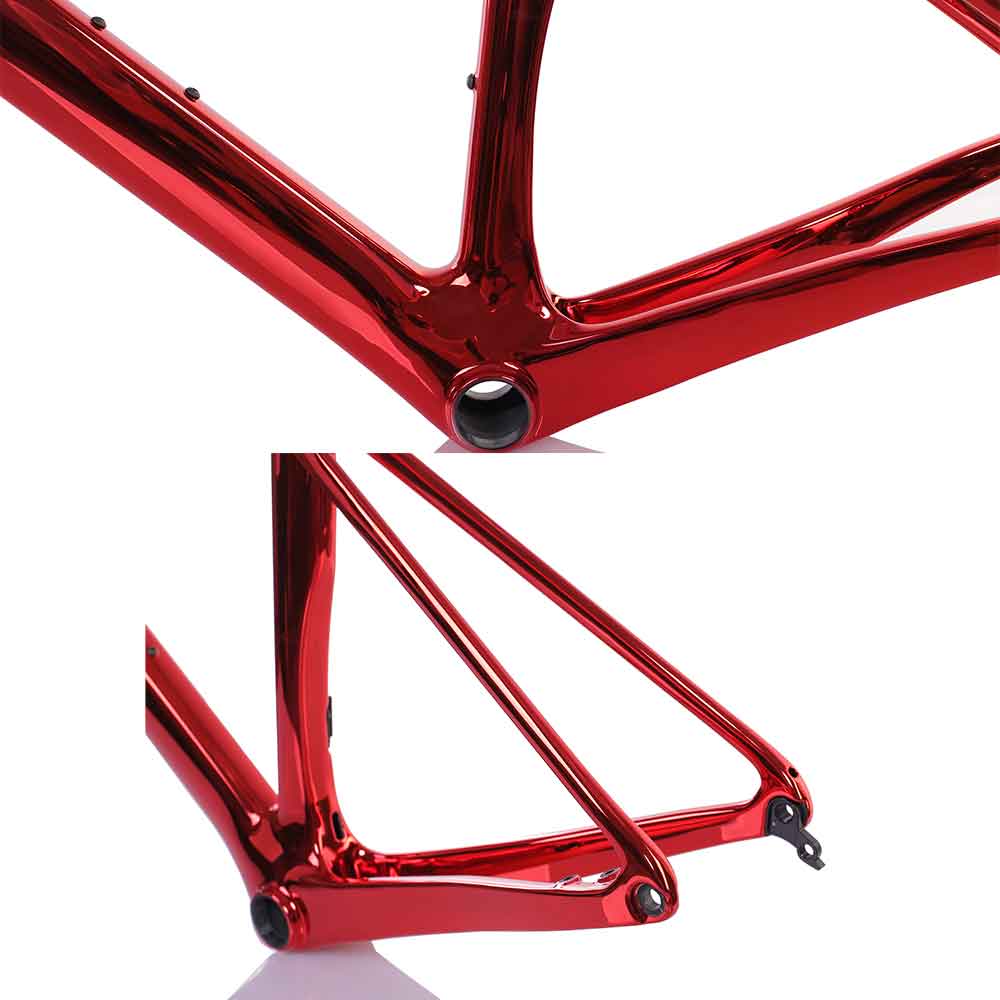

Aero Road Bike Frame
BB86 Press Fit Bracket
Fully Internal Cable Routing
UDH Hanger
Flat Mount Disc Brake
UDH Hanger Carbon Aero Bike Frame
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 20 sets
Sample: Provided

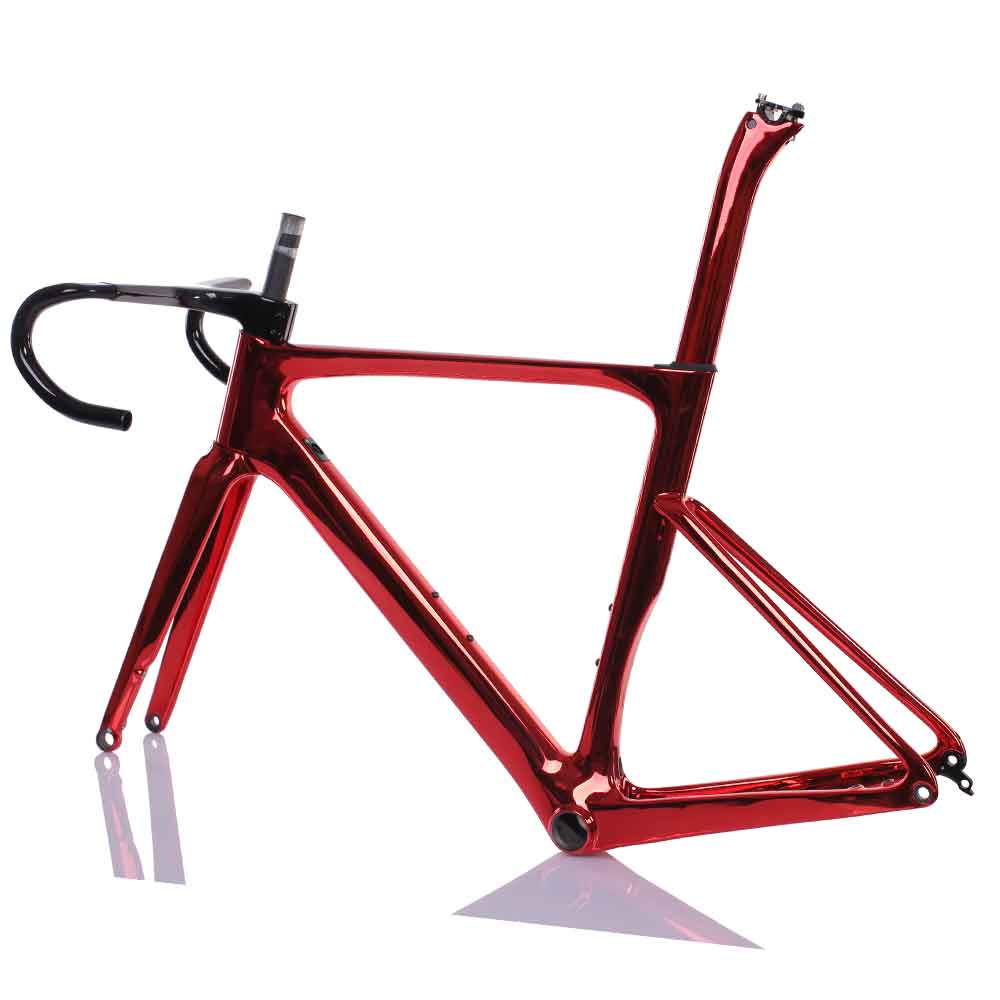

Carbon AERO Road Bike Frameset

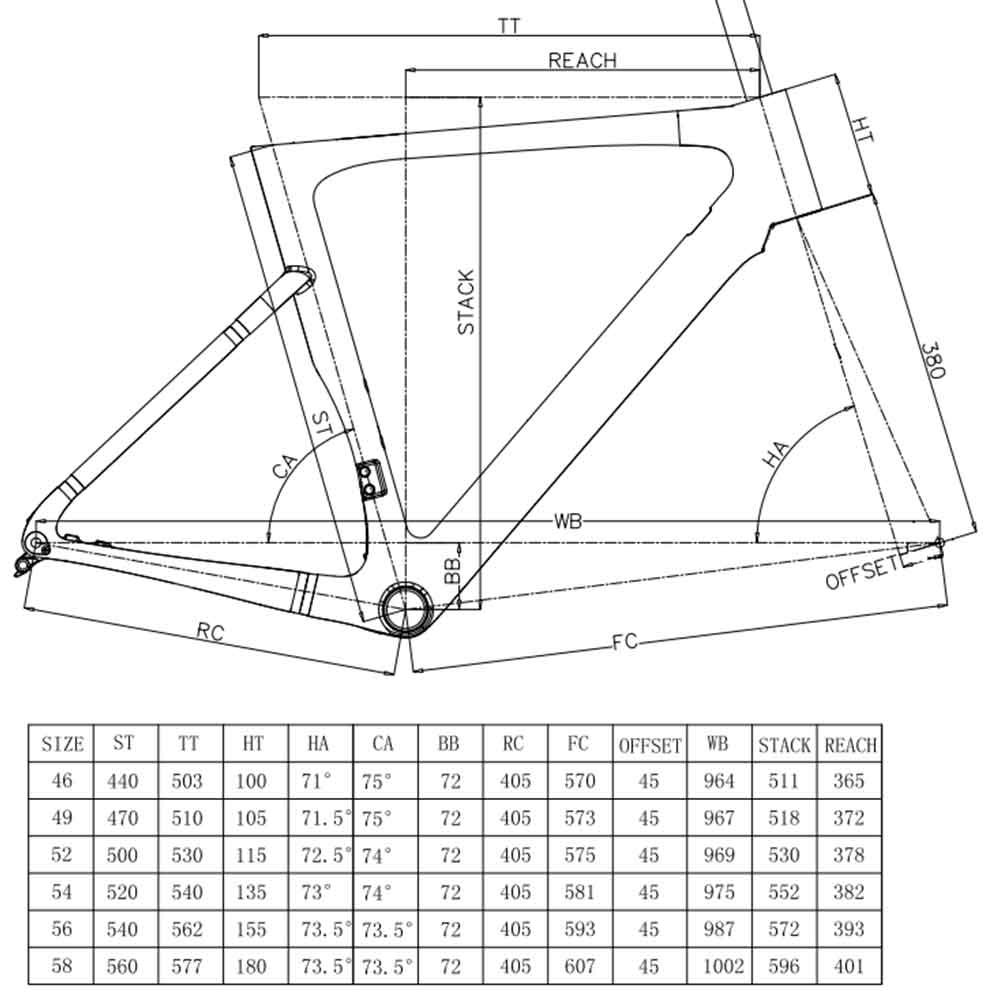

Frame Data Sheet
Material: 100% Toray T800/T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Color: All Colors Available
Size：49/52/54/56/58CM
Frame Weight: 1050+-30g (49cm)
Fork Weight: 420+-15g
Tire Size : 700*32C
Rear Spacing : 12*142mm
Fork Spacing : 12*100mm
Seatpost : Special Type
Key Features:
- FULLY INTERNAL CABLE ROUTING
- BB86/T47
- FLAT MOUNT 140/160MM DISC BRAKE
- HEADTUBE: 1-/2" (UP AND DOWN)
- HIDDEN CLAMP
- UDH/NORMAL HANGER
Frequently Asked Questions
The frame weighs approximately N/A for size 54cm (±30g). The fork weighs 420g uncut.
The frame accommodates tires up to 45mm. For gravel riding, we recommend 40-45mm.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 20 sets.
All frames come with a 2-year warranty against manufacturing defects.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
130% ISO Tested
Exceeds safety standards by 30%
Custom Painting
Any RAL/Pantone color
Custom Geometry
Tailored fit available
