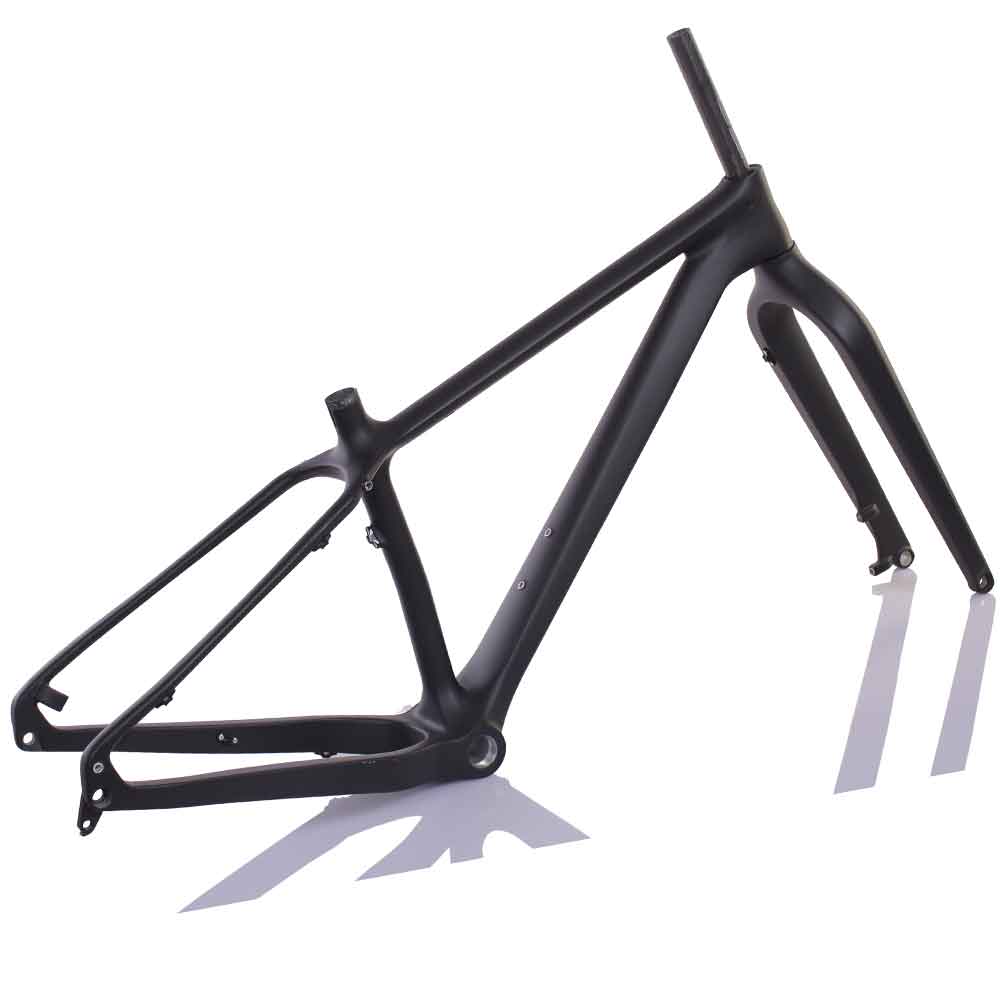

FM120 Carbon Fat Bike Frame
- Frame
- Fork
- Seatpost
- Headset
- Axles
- Custom Painting
- Shipping Cost
The final delivered price will be confirmed in your quotation.
Frame Detail

No specifications available for this product.

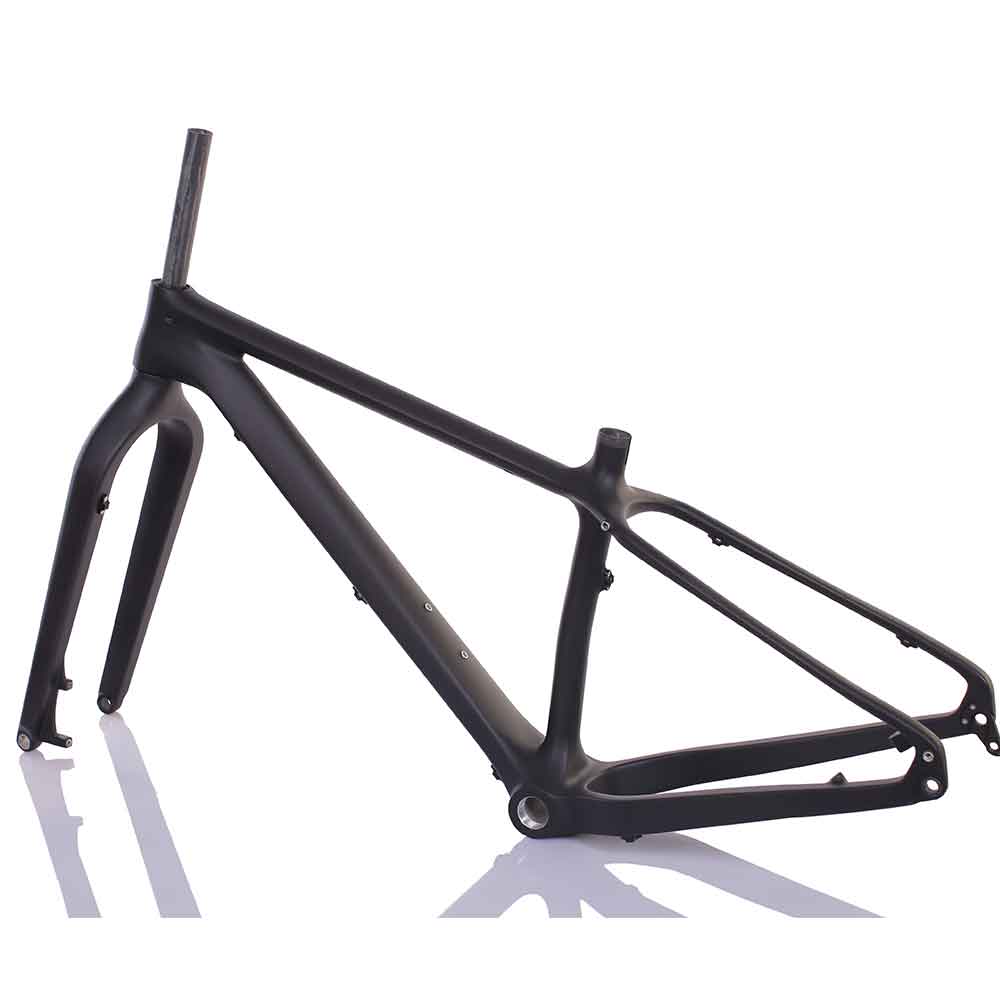

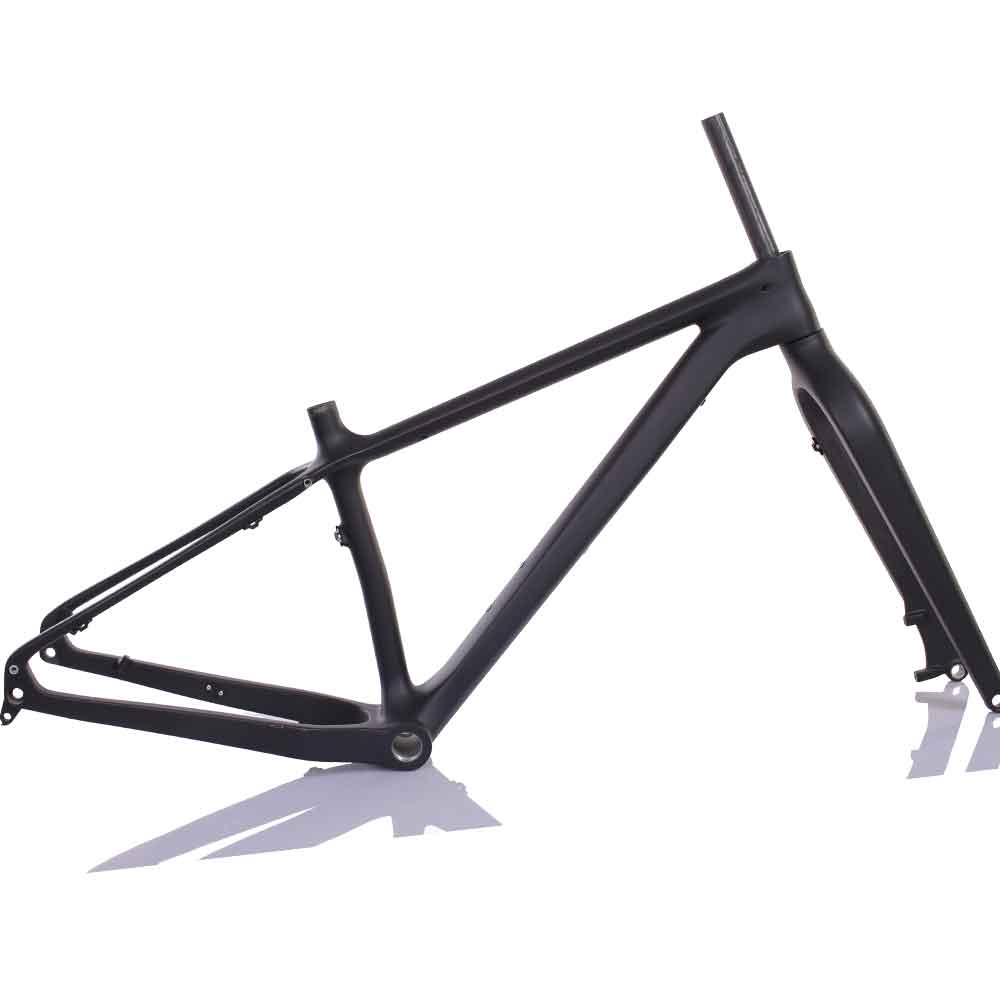

Carbon 27.5er Fat Bike Frame
Factory Capacity
Lead Time: 5000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
Samples: from 1 frameset, including custom paint. Bulk orders: from 30 framesets. Orders requiring a new mold: from 50 framesets.
Sample: Provided

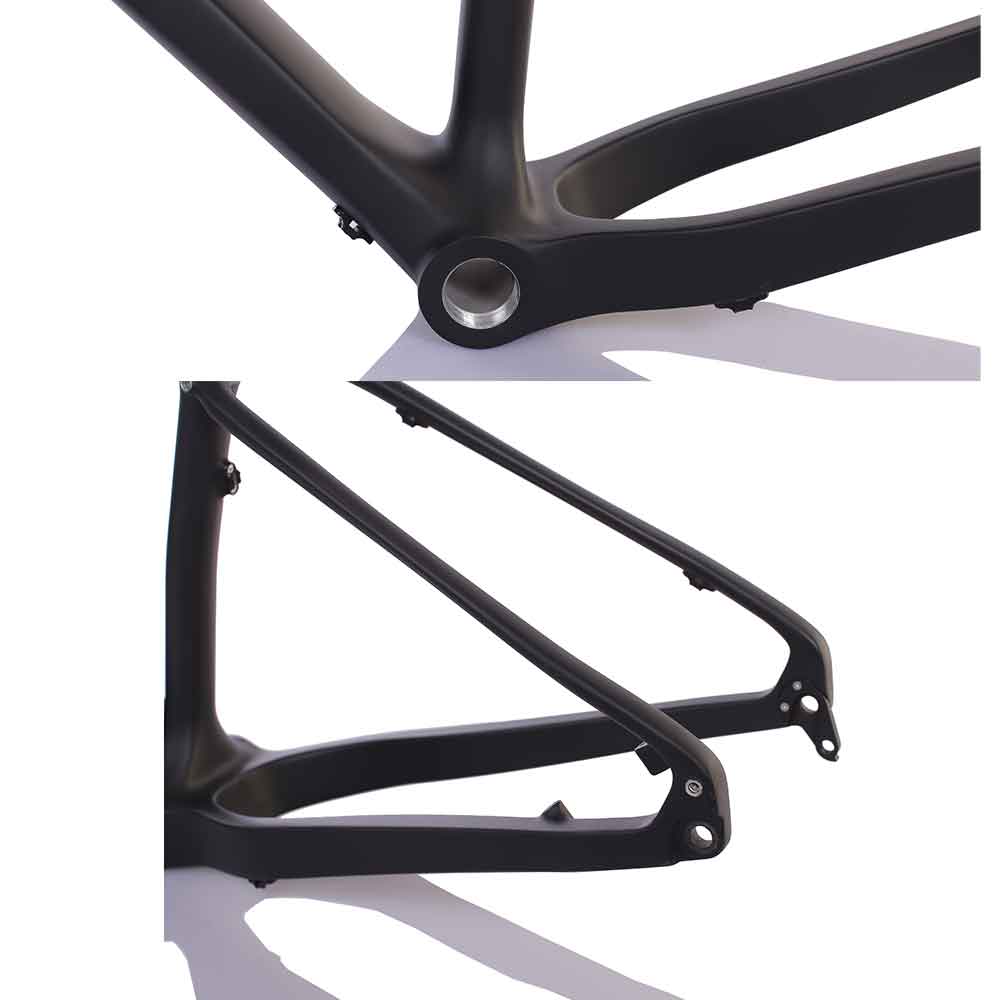

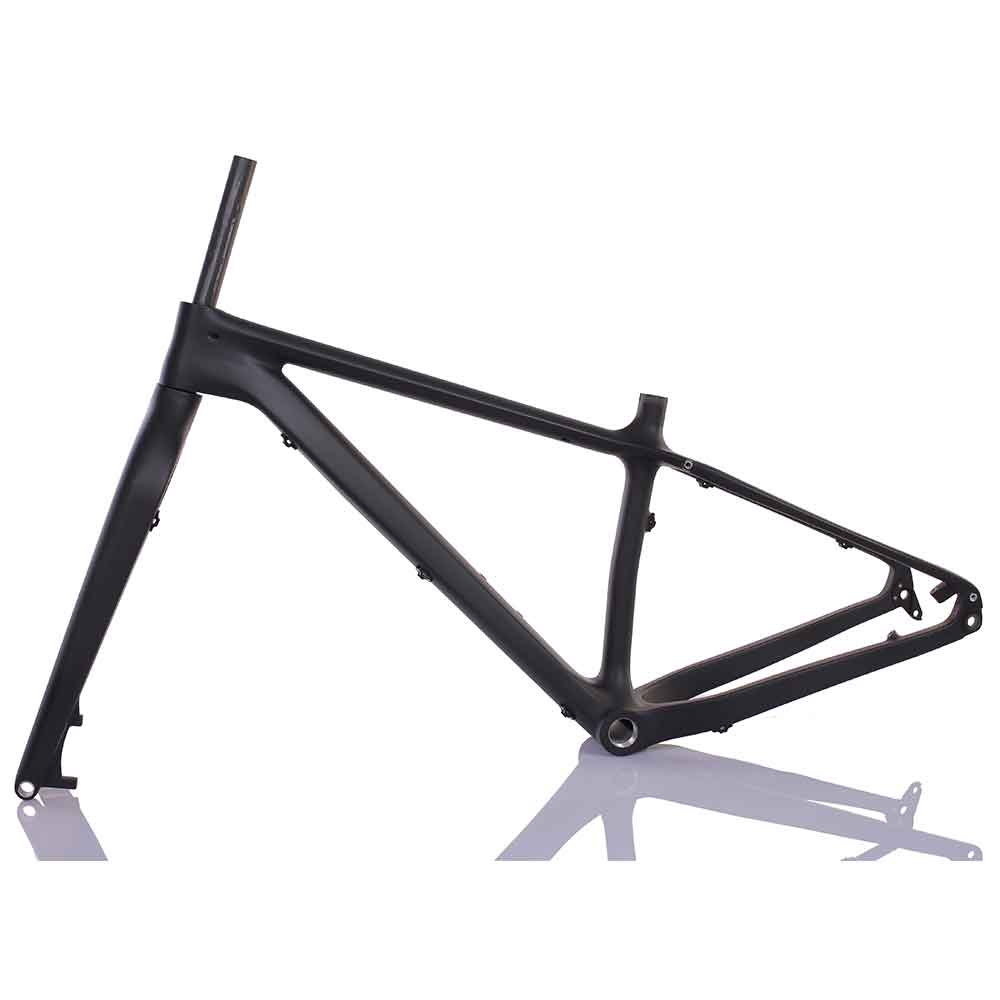

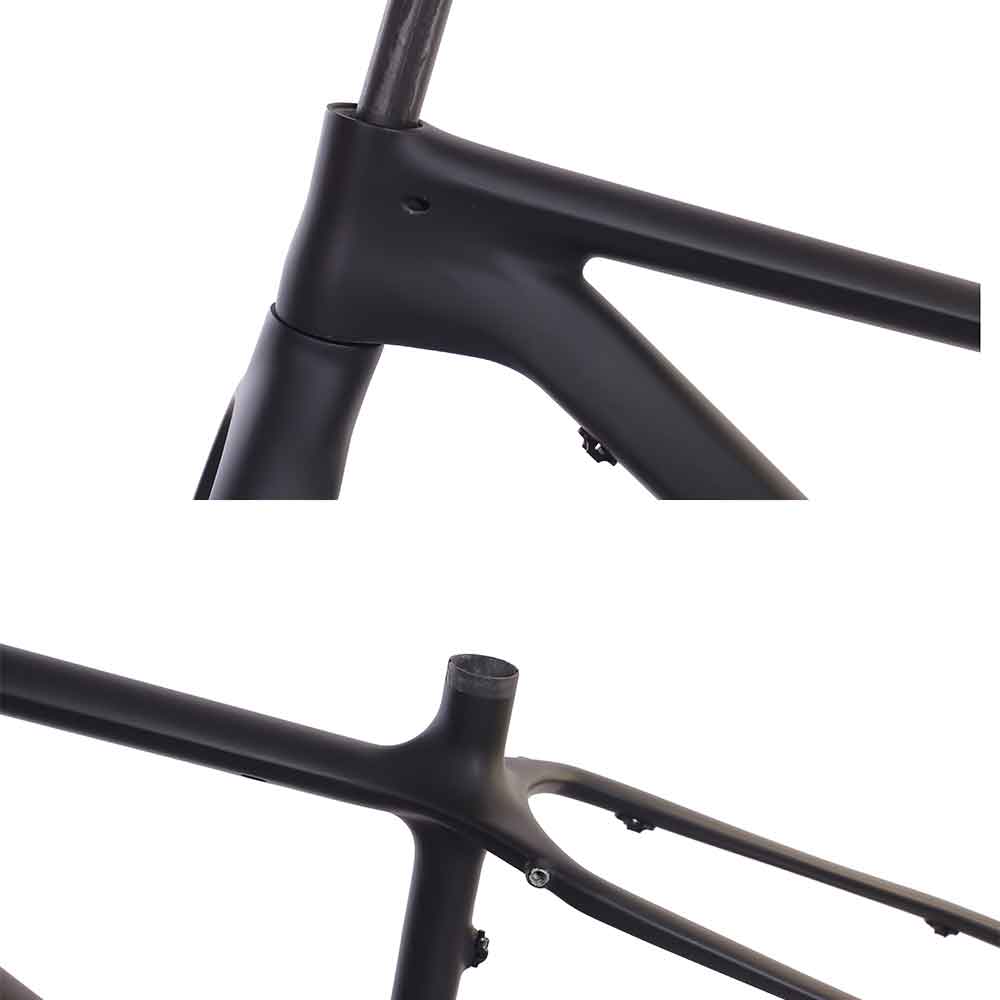

BSA 120mm Full Carbon Fat Bike Frame

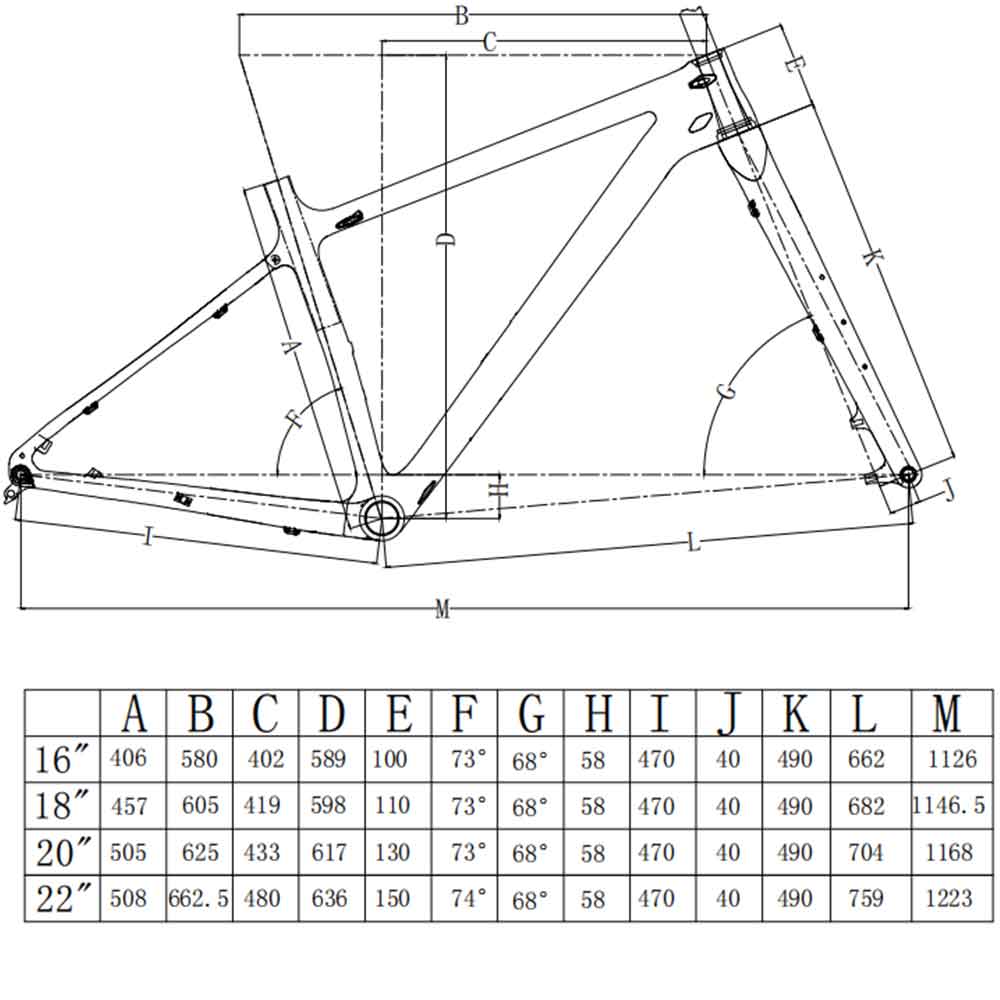

Frame Data Sheet
Material: 100% Toray T800+T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Color: All Colors Available
Size:16''/18''/20''/22''
Frame Weight: 1250/+-30g (16'')
Tire Size : 27.5*4.5''
Rear Spacing : 12*197mm
Seatpost : 31.6mm
Key Features:
- INTERNAL CABLE ROUTING
- 27.5*4.5'' Tire
- BSA 120MM
- POST MOUNT 160MM DISC BRAKE
- HEADTUBE: 1-1/8''(UP)1-/2" ( DOWN)
Customer Reviews
Write a ReviewReviews can be submitted by anyone and appear after moderation. We do not verify that a reviewer purchased the product.
No reviews yet. Be the first to review this product!
Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- Our series frames use a Toray T800 and T1000 blend – T800 in impact-exposed zones, T1000 where stiffness per gram decides the result.
- FM296, FM306 and FM366 (gravel) are built from T1000, and our lightest road platform FM066 adds T1100.
- For OEM projects we can also build with T700, where toughness and unit cost matter more than stiffness per gram.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Samples: from 1 frameset, including custom paint. Bulk orders: from 30 framesets. Orders requiring a new mold: from 50 framesets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
Neither material is best for every rider. Carbon can support low weight, varied tube shapes and a layup tuned to particular loads. Aluminum can offer good performance and value. Compare the actual frame design, fit, complete build cost and support.
Frame material alone does not determine comfort. Tire pressure, tire size, geometry and contact points also matter. Compare weights only when size, finish and included hardware match; there is no fixed weight-saving percentage that applies to all carbon frames.
Carbon frames do not have a guaranteed infinite service life, and aluminum frames do not share a universal expiry age. Use, damage, environment and the design all matter. Follow the maker’s inspection advice and stop riding if structural damage is suspected.
Ask for model-specific test evidence and warranty terms. Read our frame materials guide for a broader comparison.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
Fit and Build Support
Size, compatibility and setup guidance before you buy
