How Carbon Bike Frames Are Made: Process and Traceability

Follow carbon frame production from material handling and layup to molding and inspection. Learn which process and traceability questions to ask a frame maker.

A carbon frame’s country of origin does not tell you how it was made. To assess production, follow the steps from incoming material to a finished, identified frame.

This process view is more useful than broad claims about all Chinese factories. Makers can use different materials, tools and quality controls, even when their products look similar.

Material records come first

Ask how reinforcement and resin are identified and handled. Where prepreg is used, storage and handling requirements are part of the process. A fiber brand name on a sales page does not replace a material record.

The reinforcement may include unidirectional plies as well as woven fabric. The outside pattern alone cannot show the internal layup or identify every material used.

Layup turns a design into a structure

Cut plies are placed at specified angles and locations. Reinforcement near joints and openings is part of the design. The goal is to produce the intended structure consistently, not simply to add more layers everywhere.

Ask how the production instructions are controlled when a design changes. A sample photograph is useful context, but it does not establish that every frame follows the same approved process.

Molding is one step, not the whole quality claim

The mold and cure process help define the shape and consolidate the laminate. After molding, trimming, drilling, finishing and fitting hardware also need control. A good surface finish is not a full inspection of the internal structure.

Check which dimensions and interfaces are measured. Headset seats, axle alignment and brake mounts must work with the intended components, not merely look correct in a photograph.

Connect the delivered frame to its records

Ask how a frame or batch is identified, what production inspections are recorded and which platform tests apply. Keep the serial or batch information with the order. This makes later questions about hardware, support or a claim easier to resolve.

Our production overview and quality-control guide explain the areas to discuss with the maker.

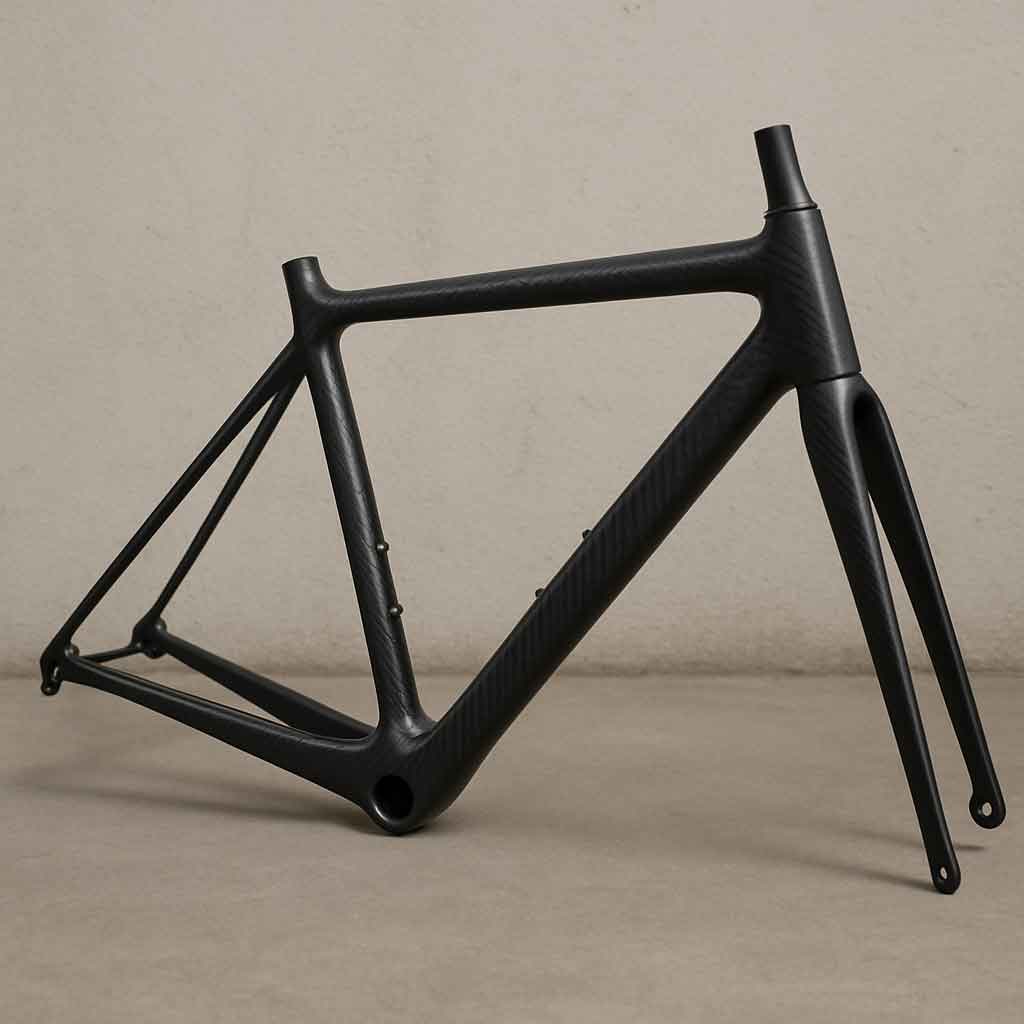

A sleek carbon fiber bike frame

Chinese cyclist riding a carbon fiber bike

By minimizing road vibrations, carbon fiber bikes help reduce rider fatigue during long rides. This comfort factor is crucial for cyclists who spend extended periods on their bikes, allowing them to maintain focus and energy levels. A reduction in fatigue also contributes to a safer riding experience, as alertness and reaction times are preserved.

By embracing carbon fiber technology, China is not only enhancing its position in the cycling world but also providing cyclists with high-performance, stylish bikes that cater to a wide range of preferences and needs. As the industry continues to evolve, carbon fiber bikes will undoubtedly play a pivotal role in shaping the future of cycling, offering exciting opportunities for innovation and growth.
