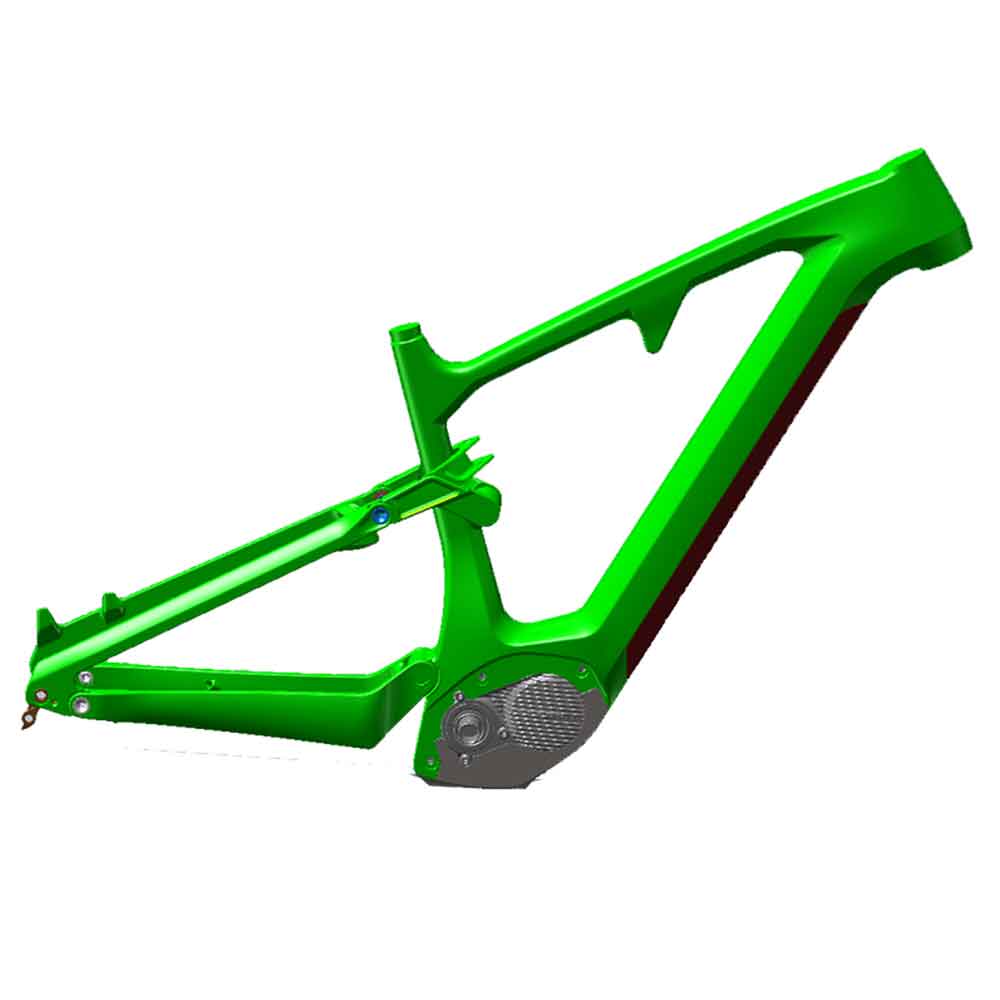

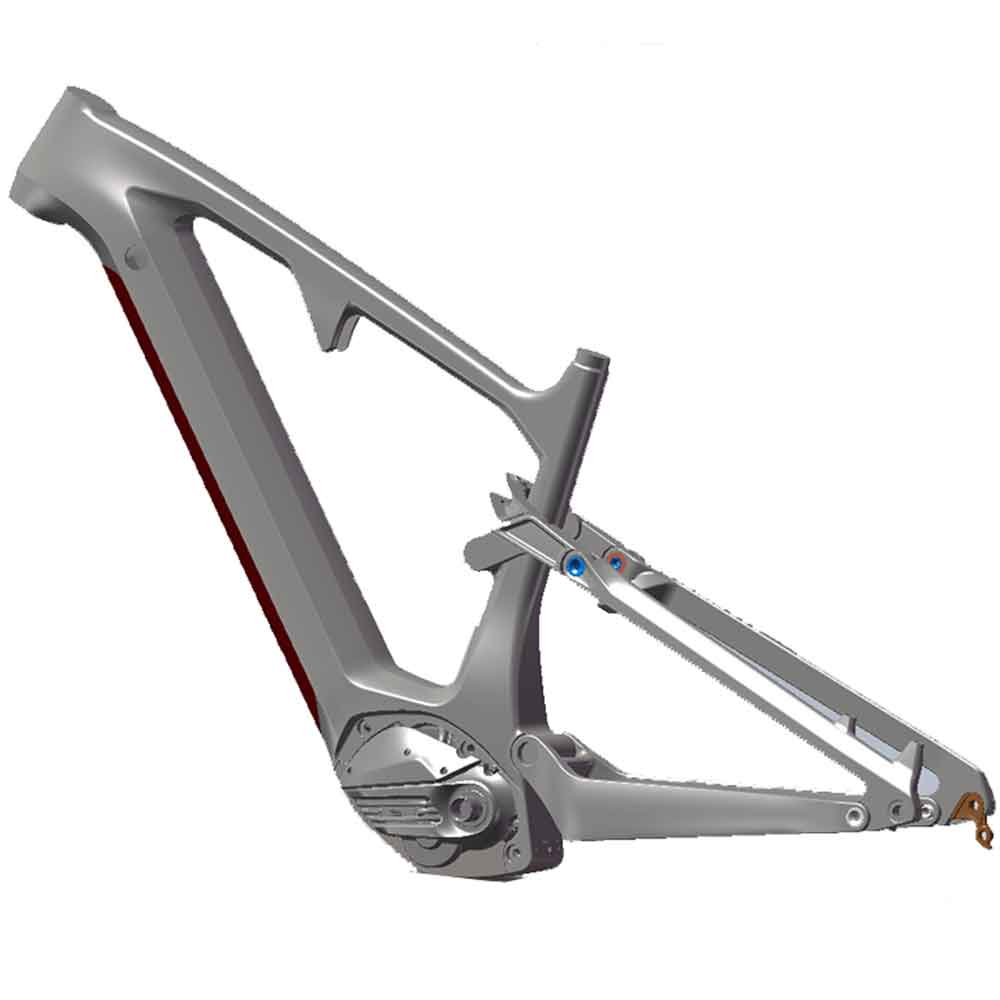

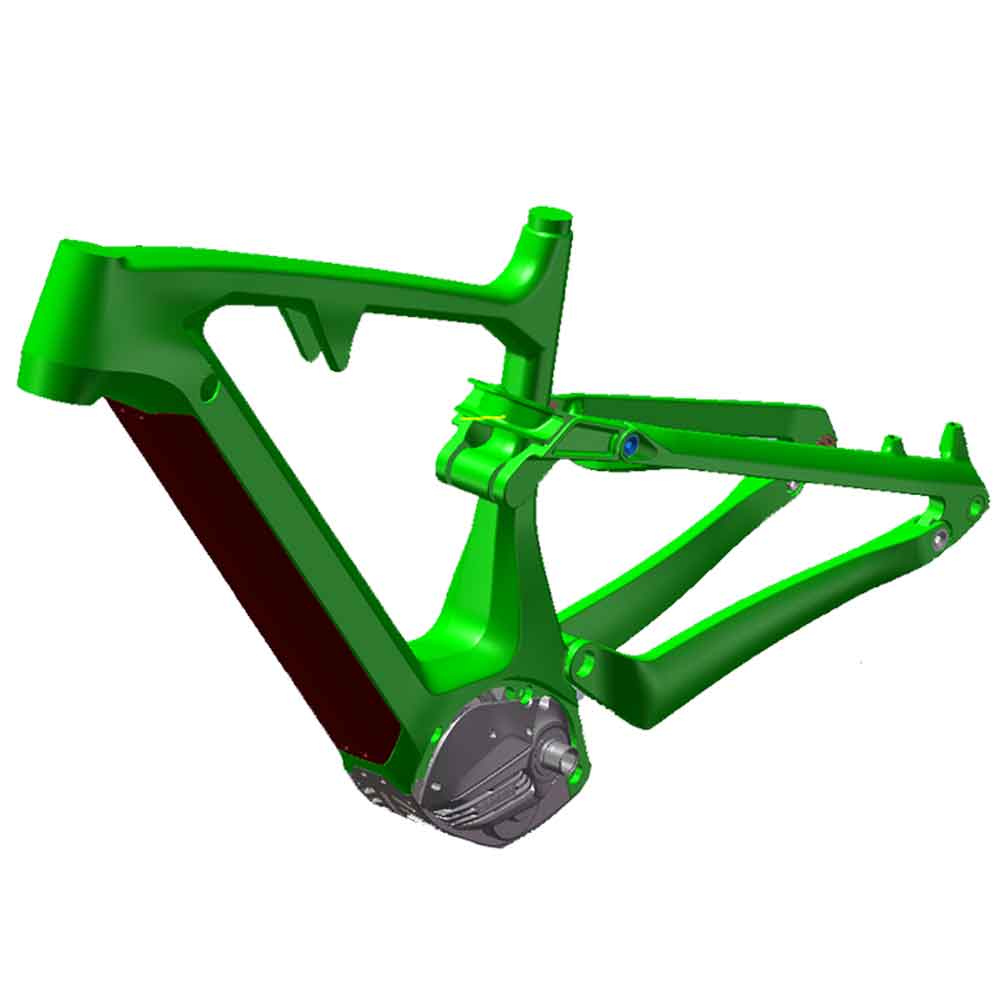

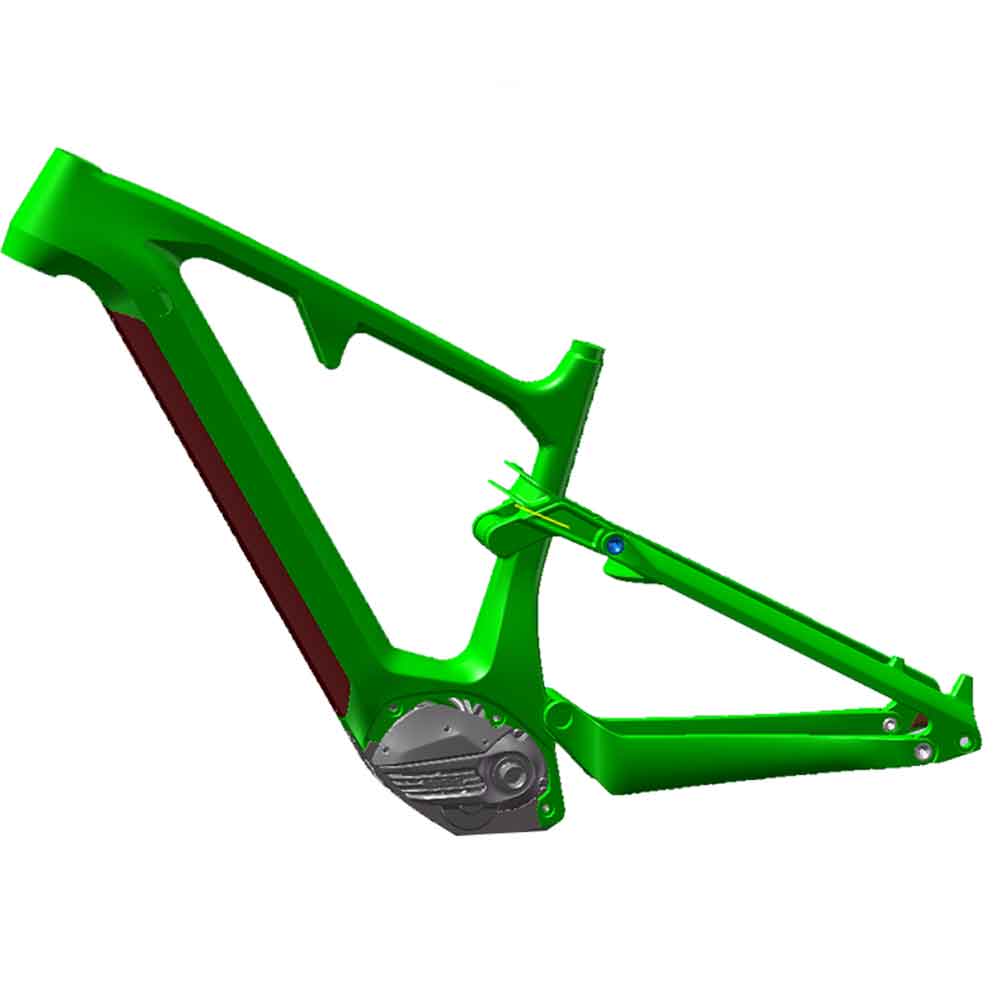

Shimano EP8 Motor 3.0 Inch Tire 150MM Travel Dual Suspension MTB Ebike Frame FM378
Factory Direct Price
Contact For Best Price
Weight
3500g
Material
Toray Grade T700+T800
Tire Clearance
27.5*3.0''
Test Standard
1.3 Times Tested
2-Year Warranty
Free Shipping Worldwide
5-10 Days Delivery
Secure Payment
Payment Methods:
Frame Detail
Shimano EP8 Motor System
Full Suspension Electric Frame

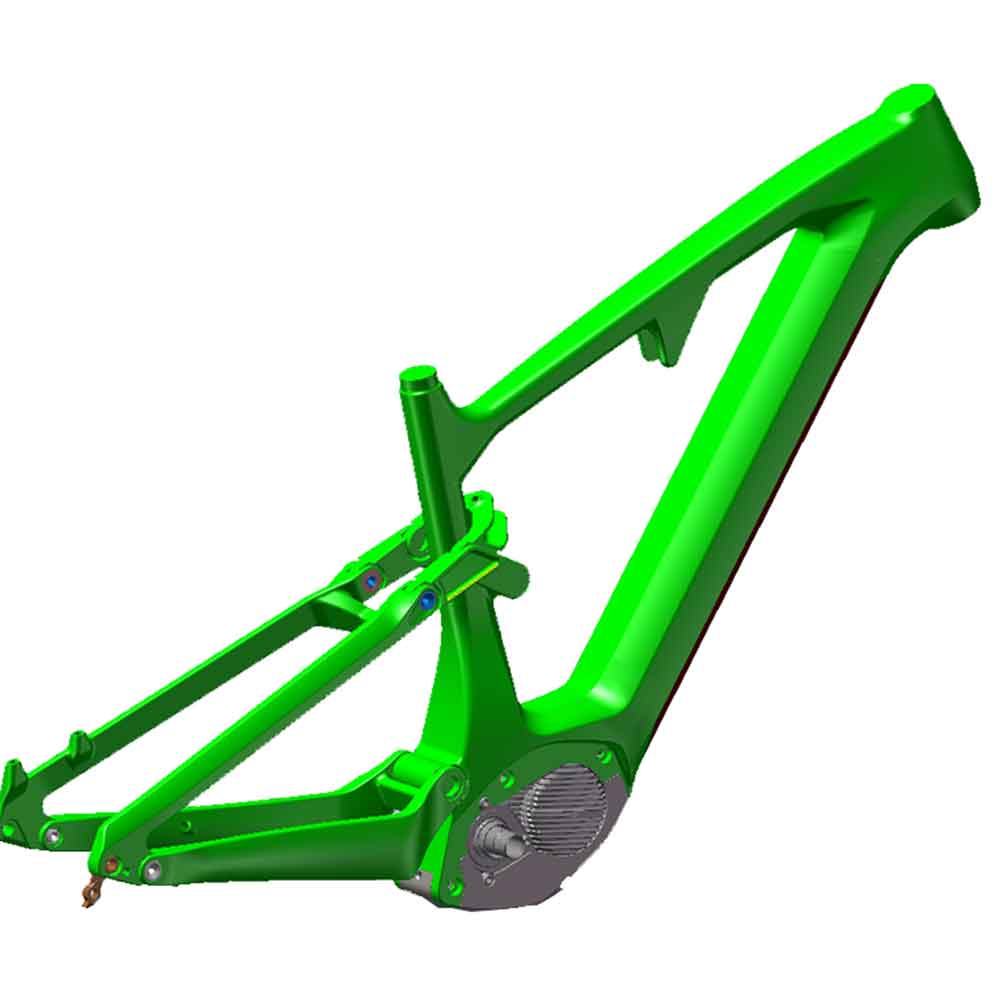

UDH Hanger

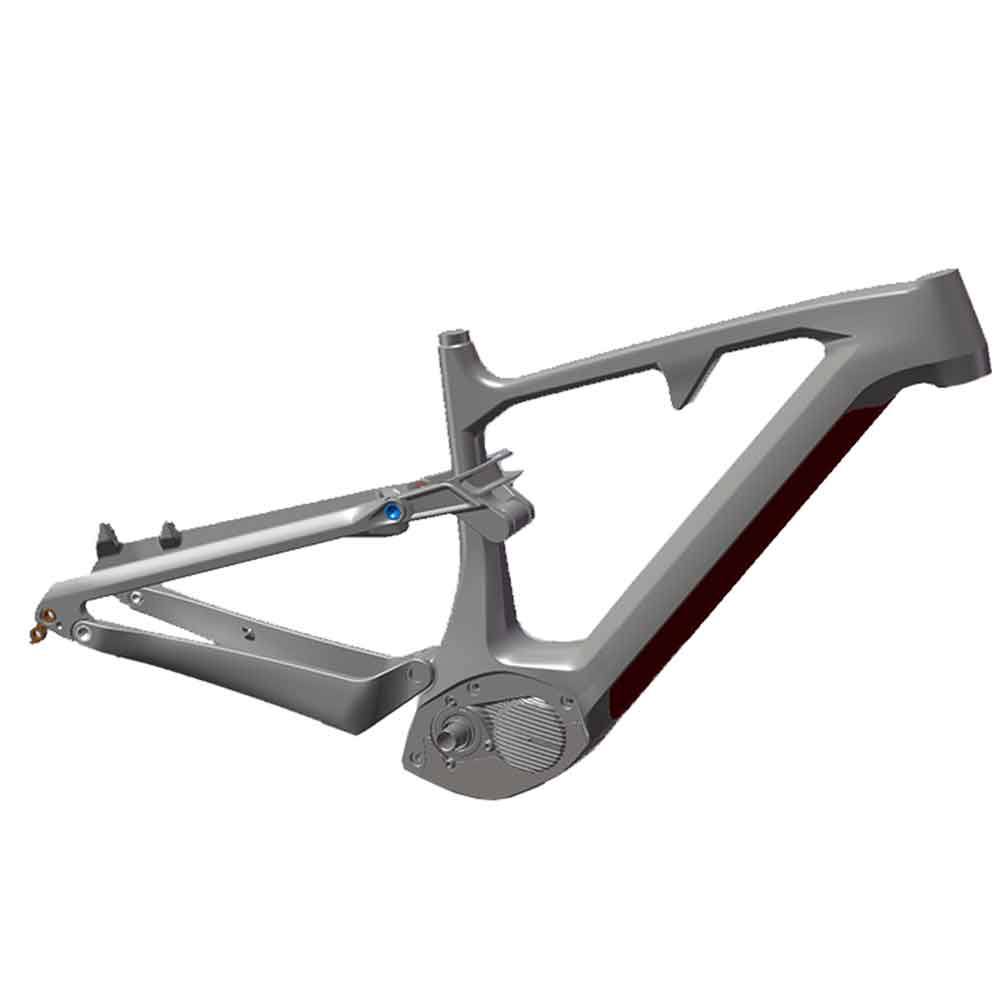

150mm Front And Rear Travel
31.6mm Seatpost
150MM Travel Dual Suspension MTB Ebike Frame
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 3 sets
Sample: Provided
Shimano Carbon Dual Suspension Mountain Bike Frame
Frame Data Sheet
Material: 100% Toray T800/T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Color: All Colors Available
Size：M/L/XL
Frame Weight: 3050/+-30g (M)
Travel:150mm Front And Rear
Cable Routing:Fully Internal
Tire Size : 27.5*3.0''
Rear Spacing : 12*148mm
Seatpost : 31.6mm
Rear Shock Size: 230*65mm
Key Features:
- FULLY INTERNAL CABLE ROUTING
- SHIMANO EP8 MOTOR AND BATTERY
- POST MOUNT 160MM DISC BRAKE
- HEADTUBE: 1-/2"
- 150MM TRAVEL FRONT AND REAR
- 230*60MM REAR SHOCK
Frequently Asked Questions
The frame weighs approximately N/A for size 54cm (±30g). The fork weighs 420g uncut.
The frame accommodates tires up to 45mm. For gravel riding, we recommend 40-45mm.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 20 sets.
All frames come with a 2-year warranty against manufacturing defects.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
130% ISO Tested
Exceeds safety standards by 30%
Custom Painting
Any RAL/Pantone color
Custom Geometry
Tailored fit available
